Zebrafish VEGF Receptors: A Guideline to Nomenclature

article has not abstract

Published in the journal: . PLoS Genet 4(5): e32767. doi:10.1371/journal.pgen.1000064
Category: Special Report
doi: 10.1371/journal.pgen.1000064


article has not abstract


In placental mammals (eutherians), there exist three paralogous genes of the vascular endothelial growth factor (VEGF) receptor family, namely FLT1 (also named VEGFR1), KDR (also named FLK1 and VEGFR2), and FLT4 (also named VEGFR3). Recent analysis of the VEGF receptor repertoire in basally diverging vertebrates has identified a fourth representative of this gene family, which was secondarily lost within the eutherian lineage, but is still present in marsupials and platypus (monotremata). Because this fourth member was initially described as an orthologue of the human KDR gene in zebrafish, confusion has arisen regarding the evolutionary relationships of vertebrate VEGF receptors. Here, we revise the nomenclature of zebrafish VEGF receptors and name the fourth vertebrate VEGF receptor gene kdr-like.

The members of the VEGF family of ligands, among them VEGF-A, VEGF-B, and VEGF-C, mediate cellular responses by binding their cognate receptors. The receptors, which belong to the type III receptor tyrosine kinase family, are single-pass transmembrane proteins containing seven extracellular immunoglobulin domains and a split intracellular tyrosine kinase domain. In human, mouse, and other mammals, three VEGF receptors have been identified, namely FLT1 (also named VEGFR1), KDR (also named FLK1 and VEGFR2), and FLT4 (also named VEGFR3).

Since their initial identification in mammals, proteins homologous to VEGFRs have been identified in several basally diverging vertebrates, including birds [1],[2], amphibians [3], and teleost fish. In the zebrafish, four genes encoding VEGF receptor proteins have been identified: the FLT1 orthologue [4],[5], the FLT4 orthologue [6], and two genes with highest similarity to KDR/Flk1. The first of these to be cloned [6][9] and functionally characterized [10] has been used in more than 80 papers as a marker of endothelial cells in the zebrafish and was originally named as the zebrafish orthologue of KDR/FLK1. However, the recent identification of a second potential KDR/FLK1 orthologue [4],[11],[12], which in fact is more similar to the human gene, has caused confusion over the evolutionary relationships of zebrafish and mammalian VEGF receptors.

In many cases, the presence of two zebrafish orthologues of a single human gene can be attributed to a whole-genome duplication event that occurred within the teleost lineage. It was therefore hypothesized that zebrafish contains duplicated KDR genes, which were consequently called kdra (the gene originally called flk1) and kdrb (the gene that is most similar to human KDR). However, two lines of evidence have recently challenged this view [4], [13][15] and rather suggest that this is a case of “ohnologs” [16],[17]. First, VEGF receptor sequences that were most similar to zebrafish flk1/kdra were identified, not only in the genomes of other teleosts, but also in the genomes of higher vertebrates, such as Xenopus, chicken, platypus, and opossum. Phylogenetic analysis of these genes, together with other VEGF receptor sequences, clearly showed that they cluster as a separate class (Figure 1A). Second, synteny analysis showed that the loci containing the zebrafish flk1/kdra and kdrb have been conserved throughout vertebrate evolution (Figure 1B), strongly indicating the presence of both genes in the common ancestor of fish and mammals and the loss of a fourth VEGF receptor in the eutherian lineage (after the divergence of marsupial and placental mammals).

Adapted from Bussmann et al., 2007 <em class=&quot;ref&quot;>[4]</em>.

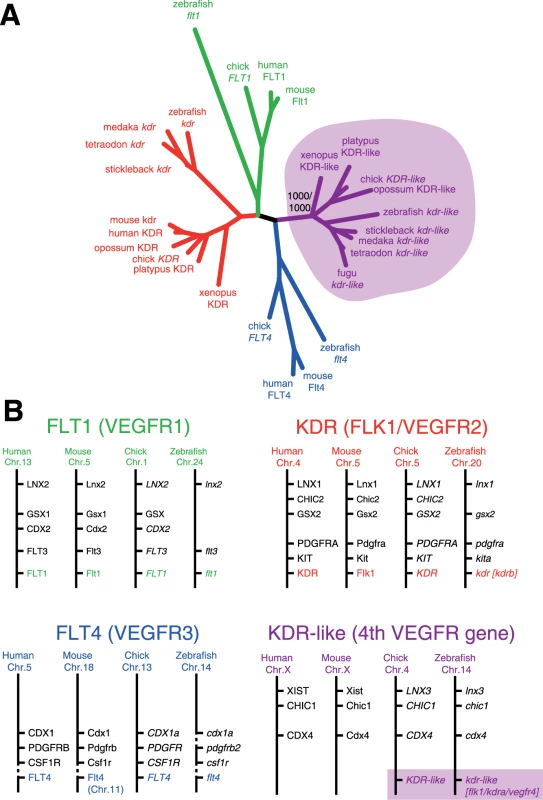

Fig. 1. Adapted from Bussmann et al., 2007 [4].
A. Unrooted neighbor-joining tree of vertebrate VEGF receptors. Different colors represent different classes of VEGF receptors. Purple shading was used to highlight the fourth vertebrate VEGF receptor class, which is missing in eutherian mammals. The node representing this fourth class was supported in 1000/1000 bootstrap replicates. B. Synteny analysis of vertebrate VEGF receptors in the human, mouse, chick, and zebrafish genome assemblies. Different classes in A and B are colored similarly. Dashed lines represent synteny breaks in the Flt4 loci. Brackets indicate previously suggested names.

Although representing separate classes, experimental data revealed significant functional similarity of zebrafish flk1/kdra and kdrb. Both genes are expressed in all endothelial cells, whereas flt1 and flt4 have a more restricted expression. Furthermore, zebrafish VEGF can bind and activate both flk1/kdra and kdrb [11]. Finally, flk1/kdra and kdrb genetically interact: knockdown of kdrb in a flk1/kdra mutant background resulted in similar phenotypes as those observed in embryos in which vegf was knocked down or in which a downstream signaling component, phospholipase-cγ1, is mutated ([12] and N. Lawson, unpublished data).


Therefore, to reflect that flk1/kdra is a prominent receptor in VEGF-A signaling in zebrafish, while at the same time indicating that it represents a fourth class of vertebrate VEGF receptors (and is not the result of a teleost gene duplication), we propose to rename this gene kdr-like. As the zebrafish kdrb gene is clearly orthologous to mammalian KDR, we propose to rename this gene kdr.


1. MarcelleC


1992 Molecular cloning of a family of protein kinase genes expressed in the avian embryo. Oncogene 7 2479 2487

2. SugishitaY





2000 Expression of genes encoding vascular endothelial growth factor and its Flk-1 receptor in the chick embryonic heart. Mol Cell Cardiol 32 1039 1051

3. CleaverO




1997 Neovascularization of the Xenopus embryo. Dev Dyn 210 66 77

4. BussmannJ



2007 Early endocardial morphogenesis requires Scl/Tal1. PLoS Genet 3 e140doi:10.1371/journal.pgen.0030140

5. RottbauerW





2005 VEGF-PLCgamma1 pathway controls cardiac contractility in the embryonic heart. Genes Dev 19 1624 1634

6. ThompsonMA





1998 The cloche and spadetail genes differentially affect hematopoiesis and vasculogenesis. Dev Biol 197 248 269

7. FouquetB




1997 Vessel patterning in the embryo of the zebrafish: guidance by notochord. Dev Biol 183 37 48

8. LiaoW





1997 The zebrafish gene cloche acts upstream of a flk-1 homologue to regulate endothelial cell differentiation. Development 124 381 389

9. SumoyL




1997 A role for notochord in axial vascular development revealed by analysis of phenotype and the expression of VEGR-2 in zebrafish flh and ntl mutant embryos. Mech Dev 63 15 27

10. HabeckHA





2002 Analysis of a zebrafish VEGF receptor mutant reveals specific disruption of angiogenesis. Curr Biol 12 1405 1412

11. BaharyN





2007 Duplicate VegfA genes and orthologues of the KDR receptor tyrosine kinase family mediate vascular development in the zebrafish. Blood 110 3627 3636

12. CovassinLD





2006 Distinct genetic interactions between multiple Vegf receptors are required for development of different blood vessel types in zebrafish. Proc Natl Acad Sci U S A 103 6554 6559

13. MulleyJF



2006 Breakup of a homeobox cluster after genome duplication in teleosts. Proc Natl Acad Sci U S A 103 10369 10372

14. ProhaskaSJ


2006 Evolution of the vertebrate ParaHox clusters. J Exp Zoolog B Mol Dev Evol 306 481 487

15. SiegelN





2007 Comparative genomics of ParaHox clusters of teleost fishes: gene cluster breakup and the retention of gene sets following whole genome duplications. BMC Genomics 8 312

16. PostlethwaitJH

2006 The zebrafish genome in context: Ohnologs gone missing. J Exp Zool Mol Dev Evol 308 563 577

17. WolfeK

2000 Robustness: it's not where you think it is. Nat Genet 25 3 4
