Sarcomere Formation Occurs by the Assembly of Multiple Latent Protein Complexes


The stereotyped striation of myofibrils is a conserved feature of muscle organization that is critical to its function. Although most components that constitute the basic myofibrils are well-characterized biochemically and are conserved across the animal kingdom, the mechanisms leading to the precise assembly of sarcomeres, the basic units of myofibrils, are poorly understood. To gain insights into this process, we investigated the functional relationships of sarcomeric protein complexes. Specifically, we systematically analyzed, using either RNAi in primary muscle cells or available genetic mutations, the organization of myofibrils in Drosophila muscles that lack one or more sarcomeric proteins. Our study reveals that the thin and thick filaments are mutually dependent on each other for striation. Further, the tension sensor complex comprised of zipper/Zasp/α-actinin is involved in stabilizing the sarcomere but not in its initial formation. Finally, integrins appear essential for the interdigitation of thin and thick filaments that occurs prior to striation. Thus, sarcomere formation occurs by the coordinated assembly of multiple latent protein complexes, as opposed to sequential assembly.


Published in the journal: . PLoS Genet 6(11): e32767. doi:10.1371/journal.pgen.1001208
Category: Research Article
doi: 10.1371/journal.pgen.1001208

Summary

The stereotyped striation of myofibrils is a conserved feature of muscle organization that is critical to its function. Although most components that constitute the basic myofibrils are well-characterized biochemically and are conserved across the animal kingdom, the mechanisms leading to the precise assembly of sarcomeres, the basic units of myofibrils, are poorly understood. To gain insights into this process, we investigated the functional relationships of sarcomeric protein complexes. Specifically, we systematically analyzed, using either RNAi in primary muscle cells or available genetic mutations, the organization of myofibrils in Drosophila muscles that lack one or more sarcomeric proteins. Our study reveals that the thin and thick filaments are mutually dependent on each other for striation. Further, the tension sensor complex comprised of zipper/Zasp/α-actinin is involved in stabilizing the sarcomere but not in its initial formation. Finally, integrins appear essential for the interdigitation of thin and thick filaments that occurs prior to striation. Thus, sarcomere formation occurs by the coordinated assembly of multiple latent protein complexes, as opposed to sequential assembly.

Introduction

Muscle functionality relies on the correct assembly of myofibrils, the cylindrical organelles attached to the cell surface membrane within muscle cells that run from one end of the cell to the other end. Myofibrils are composed of tandem arrays of basic functional contractile units called the sarcomeres. Sarcomeres are highly ordered, almost crystalline-like, structures composed of thin (actin) and thick (myosin) filaments and their associated proteins (Figure 1A). Although their components have been known for many years, how the various sarcomeric proteins assemble to form these highly ordered structures is poorly understood. Understanding the process of sarcomere assembly is not only relevant to the understanding of how protein complexes interact to form complex supra-molecular structures, but is also of great significance to medicine, as many mutations in genes encoding sarcomeric proteins cause muscle diseases such as congenital myopathy and dilated cardiac hypertrophy [1], [2].

MHC is critical for muscle striation formation.

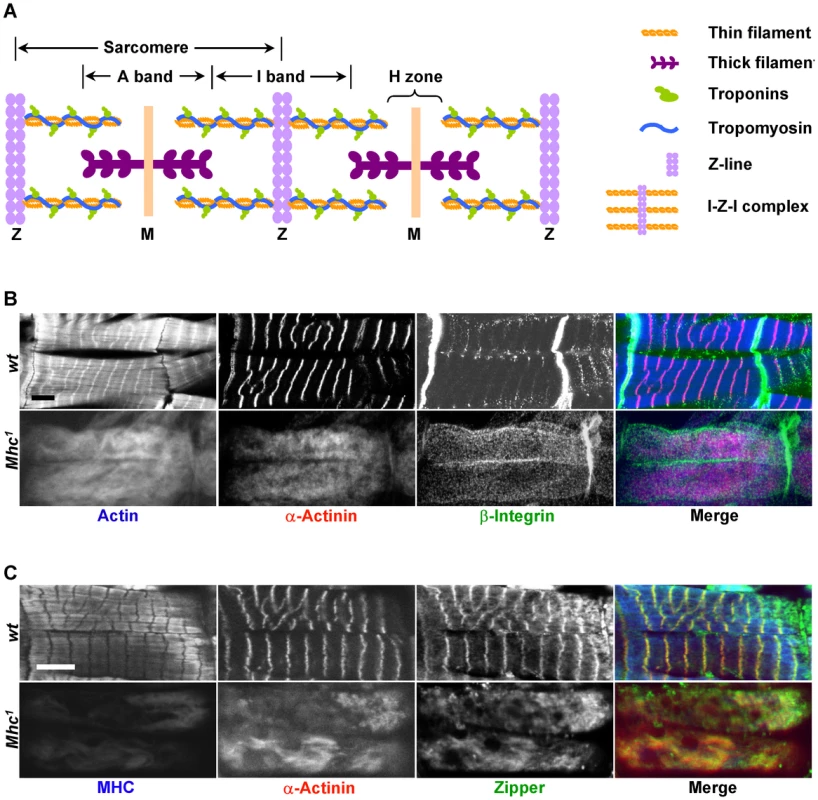

Fig. 1. MHC is critical for muscle striation formation.
(A) Schematic organization of a myofibril, represented here with two sarcomeres. Sarcomeres are defined as the segment between two neighboring Z-lines. Thin filaments include actin filaments and their associated proteins such as troponins (Tns) (TnC, TnI, and TnT) and tropomyosin (Tm). Actin filaments are the major components of I-bands, and are cross-linked to Z-lines via α-actinin. Thick filaments are composed of myosin and are connected from the M-line to the Z-line by titin. A number of proteins important for the stability of sarcomeres, such as zipper and Zasp, are found in the Z-line. (B) Confocal fluorescent micrographs of control muscles of a stage 17 wild-type embryo (top panels) and myosin heavy chain (Mhc) amorphic mutant muscles from Mhc1 of same stage (bottom panels) stained by phalloidin (blue in merge), anti-α-actinin (red in merge) and anti-β-integrin (green in merge). Note that there is no obvious striation in Mhc null mutant muscles, and that β-integrin staining does not align with that of α-actinin. (C) Confocal images of control muscles of a stage 17 wild-type embryo (top panels) and Mhc1 of same stage (bottom panels) stained by anti-muscle MHC (blue in merge), anti-α-actinin (red in merge) and anti-zipper (green in merge). Note that in wild-type muscles, zipper colocalizes with α-actinin as shown in yellow in the merged image, but not with MHC. In addition, rat-anti-MHC was able to detect truncated MHC fragments in Mhc1 mutant muscles, and its staining overlaps with actin. This staining most likely reflects the ability of the Subfragment 1 region of MHC to bind to actin filaments. Scale bars: 10 µm.

The striated appearance of myofibrils is readily detectable under the polarized light microscope as alternating light and dark bands corresponding to I-bands and A-bands, respectively (Figure 1A). Thin filaments are built of actins as well as their associated tropomyosin (Tm) and troponin (Tn) complex (troponin T/TnT, troponin I/TnI and troponin C/TnC) proteins, and are anchored at the Z-line that demarcates the middle of the I-bands. The Z-line itself contains various structural proteins such as α-actinin, titin and Zasp. Thin filaments and Z lines are connected with each other and are often referred to as the “I-Z-I” complex. Thick filaments on the other hand are attached to the M-line situated at the center of A-bands and are composed of muscle myosin represented by two myosin heavy chains (MHCs) and four muscle light chains (MLCs).

A number of models have been put forward to explain how sarcomeric proteins are assembled into a highly ordered structure. One model proposes that I-Z-I complexes and bipolar myosin filaments assemble independently before joining [3]. The main observations in support of this view are that free-floating A band structures can be detected in the absence of actin, and that irregular Z-lines can be detected with attached thin filaments in muscles that lack myosin [3][5]. A second model, supported by the antibody staining of chicken cardiomyocytes fixed at different times after spreading in culture [6], proposes that premyofibrils, characterized by interdigitating banded patterns of I-Z-I complexes and non-muscle myosins, form de novo near the cell membrane and develop into mature myofibrils. This model proposes that a replacement of the non-muscle myosin filaments with muscle myosin filaments occurs during the transition from premyofibril to myofibril and that discrete aggregates of Z bodies along premyofibrils grow and fuse laterally into Z lines [6], [7]. A third model emphasizes the scaffolding role of the giant protein titin during myofibrillogenesis. According to this model, the N-terminal domain of titin interacts with the I-Z-I complex and the subsequent unfolded C-terminal region associates with the M-line, thus driving the interdigitation of the I-Z-I complex and myosin. In support of this model, using titin specific epitopes that distinguish between the N or C region, the M-band periodic pattern of titin is detected later than its Z-line pattern [8], [9]. Finally, a fourth model emphasizes the role of integrin adhesion complex in sarcomere assembly as starting sites of actin/thin filaments polymerization [10]. This model is supported by genetic studies in C. elegans, Drosophila and mice showing that integrin signaling pathway components are required for sarcomere assembly [11][15].

Although not necessarily mutually exclusive, these models are based on the analysis of sarcomeric structures in either wild-type or mutant backgrounds using electron microscopy and immuno-histochemistry approaches, and have been limited by the lack of a number of antibodies against key sarcomeric proteins. Thus, we decided to reexamine this process using new reagents and approaches to systematically investigate the myofibril assembly process. In particular, we used RNAi in a primary muscle cell culture assay to systematically explore the functional relationships among sarcomeric proteins, combined with detailed in vivo analysis of available muscle mutants. Previously, we have shown that primary muscle cells can be used to study sarcomere organization using RNAi [16], [17]. For example, we identified from an RNAi screen in primary muscle cells the sarcomere length short (sals) gene and showed that it is required for thin filament lengthening both in culture and in vivo [18].

Here, using antibody staining of sarcomeric proteins in mutant animals and cultured primary muscle cells, we document how sarcomere formation is a highly coordinated process mediated by the assembly of multiple latent functional complexes. We find that I-Z-I proteins and myosin filaments are two independent complexes that interact with each other to provide the alignment feature of the myofibrils, thus supporting the “independent” model described above [3]. In addition, we found that this interdigitation is at least mediated by the troponins-tropomyosin (Tns-Tm) complex that is critical for sarcomere contraction. Further, we show that the newly identified zipper/Zasp/α-actinin complex functions as a tension sensor to stabilize the I-Z-I complex. Finally, we find that integrin is essential for the interdigitation of thin and thick filaments, but is not required for actin/thin filament assembly as previously proposed. Altogether, our studies indicate that there are no intermediate steps for sarcomere assembly and that disruption of any protein complex leads to loss of muscle striation, thus leading to the proposal that sarcomere formation occurs by the coordinated assembly of multiple latent protein complexes.

Results/Discussion

Roles of MHC and non-muscle myosin in sarcomere formation

Previous studies have established that the first sarcomeric components to appear are the actin filaments that assemble into I-Z-I complexes [8], [19], [20]. This step is followed by the infiltration of muscle myosin into nascent myofibrils, a process that is not well understood and that may be mediated by non-muscle myosin [3], [6], [8], [21].

To clarify the process by which I-Z-I and the myosin filaments assemble, we analyzed the striation pattern of sarcomeres in Mhc1 mutants that lack thick filaments. Mhc1 contains a 101 base-pair (bp) deletion in the Mhc gene resulting in truncated MHC proteins lacking most of rod-like sub-fragment 2 that contributes to the backbone of the thick filament. Previous electron microscopic studies have shown that mutant muscles for the Mhc1 amorphic allele completely lack any discernable thick filaments [22]. Wild-type and Mhc1 mutant embryos were dissected at stage 17, when sarcomeres begin to assemble and can be detected in the wild-type body wall muscles [23] (see Methods). Muscles were then stained with various antibodies against sarcomeric proteins. While wild-type muscles displayed well-defined striated myofibrils when visualized with phalloidin staining and anti-α-actinin antibodies, highlighting actin filaments and Z-lines respectively (upper panels in Figure 1B), homozygous Mhc1 mutant muscles no longer showed localized Z-lines (bottom panels in Figure 1B). This observation is consistent with the phenotypes of Mhc deficient primary muscles that are derived either from wild-type cells treated with Mhc dsRNAs or from cells dissociated from Mhc1 mutant embryos (Figure S1A and S1B). Altogether, these results indicate that I-Z-I proteins cannot align into striation in the absence of MHC.

Next, to test the role of non-muscle myosin in sarcomere formation, we stained Mhc1 mutant muscles with antibodies against zipper that corresponds to the only Drosophila non-muscle myosin. One prediction of the model emphasizing the role of non-muscle myosin is that removal of MHC would only have subtle effects on the zipper sarcomeric striation pattern, as non-muscle myosin would be involved in the formation of premyofibrils. We find that zipper is strongly localized to Z lines but not to thick filaments (upper panels in Figure 1C), and that removal of MHC resulted in no obvious zipper periodic pattern (bottom panels in Figure 1C). These results suggest that, at least in Drosophila, intermediate non-muscle myosin-containing premyofibrils do not exist during myofibril assembly. Further, examination of other sarcomeric components (β-integrin (Figure 1B), Mlp84B, titin, and Zasp (data not shown)) indicates that elimination of MHC leads to a complete disruption of the distribution of these proteins in myofibrils.

As MHC is expressed in embryonic muscles several hours prior to sarcomere organization, one possibility is that MHC is required for the organization of proteins at later stages. To exclude this possibility, we stained embryos at stage 15–16 when many sarcomere proteins become enriched at muscle attachment sites. Removal of MHC had no effect on the distribution of integrin, α-actinin, zipper, kettin, Zasp and Mlp84B at the attachment sites (Figures S2, S3, S4), strongly suggesting that formation of muscle attachments is a MHC-independent process.

To investigate the role of MHC in sarcomeric organization at later stages following sarcomere formation, we knocked down Mhc in third instar larvae by RNAi (Mhc-Gal4;UAS-Mhc-hp) and examined the distribution of sarcomeric components. Compared to control animals (Mhc-Gal4/+) the degree of loss of muscle sarcomere striation correlated well with the reduction in the MHC expression level, as revealed by the fluorescent staining for α-actinin, Zasp and MHC (Figure S5). Altogether, these results indicate a critical role for MHC not only in sarcomere formation but also in its maintenance.

Function of the troponins-tropomyosin complex

The Tns-Tm (TnT/TnI/TnC/Tm) complex has a well-established role in acto-myosin interactions in response to changes in Ca2+ level. Since MHC is required for sarcomere formation, we analyzed whether this complex also participates in this process. Because complete null mutations in these genes are not available, and primary muscle RNAi has been successfully used to characterize sarcomere assembly [18], we used primary muscle cell cultures to assess the roles of Tns in sarcomerogenesis. Primary muscles were prepared from wild-type embryos, treated with various dsRNAs targeting different Tns, and stained with the three major sarcomeric proteins actin, α-actinin, and MHC. Depletion of TnT or TnI eliminated the striation pattern, indicating that both are essential for sarcomere formation (Figure 2A and Figure S6A). This is consistent with the in vivo sarcomeric disassembly phenotypes associated with loss-of-function TnT mutations described in mice and zebrafish and of TnI in the indirect Drosophila flight muscle [24][26]. As previously proposed by Sparrow and colleagues [25], since TnI inhibits the generation of acto-myosin force for muscle contraction in the absence of Ca2+ and TnT is involved in the attachment of the Tn complex to the thin filament, the defects observed in the absence of either TnT or TnI are likely caused by the upregulation of acto-myosin interactions between thin and thick filaments as they assemble.

Tns-Tm complexes play an important role in sarcomere assembly.

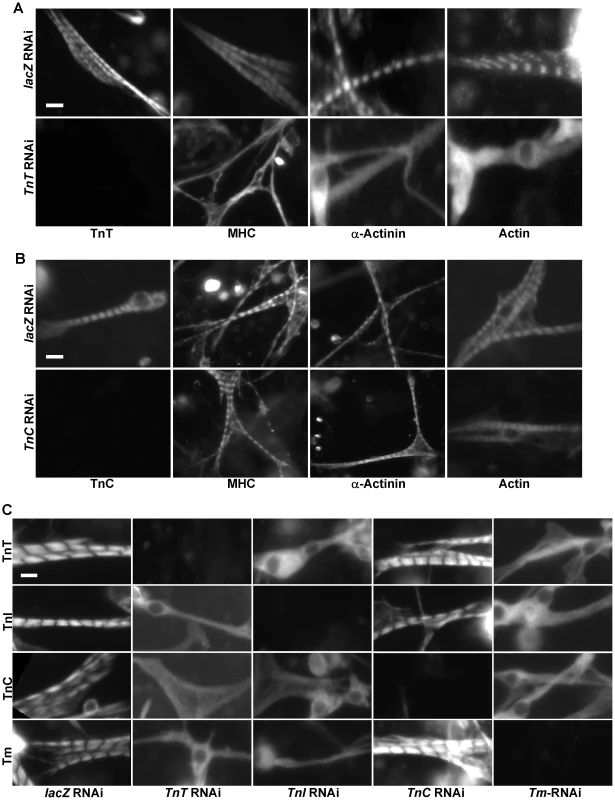

Fig. 2. Tns-Tm complexes play an important role in sarcomere assembly.
(A,B) Primary muscle cells were isolated from Oregon R embryos and treated with dsRNA against lacZ (A and B, upper panels), TnT (A. lower panels), or TnC (B. lower panels). Sarcomeric organization was evaluated following staining using polyclonal antibodies against MHC, α-actinin or actin. The efficacy of TnT and TnC RNAi knock-downs were evaluated using anti-TnT and anti-TnC specific antibodies, respectively. Note that while removal of TnT has severe effects on the striated organization of the sarcomere, depletion of TnC has little effect. (C) To determine the relationships between TnT, TnI, TnC and Tm, primary muscle cells were treated with TnT, TnI, TnC or Tm RNAi and stained with antibodies against TnT, TnI, TnC and Tm, respectively. Note the severe effects on the striated pattern in the absence of TnT, TnI and Tm, but not TnC. Scale bars: 10 µm.

Interestingly, we expected that knock-down of the Ca2+-binding protein TnC would affect sarcomere organization as loss of TnC should desensitize the response to Ca2+ concentration and reduce acto-myosin interaction between thin and thick filaments. However, knock-down of TnC did not lead to any significant change in MHC/actin/α-actinin striation (Figure 2B). This non-essential role of TnC in sarcomere assembly underscores the importance of direct interactions between Tns and thin filament in sarcomere formation since, unlike TnT and TnI, TnC does not directly interact with actin and Tm [27].

Since Tns always function together with Tm to mediate actin-myosin interactions, we next examined the role of Tm in sarcomere organization. Staining of primary muscle cells treated with Tm dsRNAs with anti-actin, anti-α-actinin and anti-MHC demonstrated that Tm is another critical component participating in sarcomere assembly (Figure S6B). As TnT, TnI and Tm are all essential for sarcomere formation, we tested whether these three proteins are assembled in a sequential manner into sarcomeres, as observed in the case of other protein complexes involved in organelle assembly [28]. Thus, we depleted systematically each component of the Tns-Tm complex by RNAi and examined the overall organization of sarcomeres with antibodies against Tns and Tm. Strikingly, removal of TnT, TnI or Tm led to random distribution of all remaining proteins, indicating that there is no loading sequence for Tns-Tm complex during sarcomere assembly (Figure 2C).

To test the possibility that removal of the Tns-Tm complex would lead to up-regulation of acto-myosin contraction by exposing the MHC binding sites on actin, and as a result causes disruption of the myofibril structure, we performed a time-course analysis of sarcomere striation. Typically, a clear striation pattern indicated by actin staining can be first observed in wild-type primary muscle cells culture at 3 days after plating at 25°C ([16], Figure S6C). In TnT RNAi treated cells, no striation could be detected at that time-point or later (Figure S6C) suggesting that the Tns-Tm complex plays an important role in the initial sarcomere assembly by allowing stable interdigitation of thin and thick filaments. Similar results were also obtained from TnI or Tm RNAi treated primary muscle cells (data not shown). Interestingly, we did not observe a sequence of events in the recruitment of Tns and Tm, suggesting that the Tns-Tm complex is recruited as a complex to the sarcomere.

Relationship between MHC and I-Z-I

I-Z-I complexes are composed of thin filaments associated with nascent Z-lines and are the first identifiable structures during early myofibrillogenesis [3]. Subsequently, MHC has been hypothesized to assemble into thick filaments and to interdigitate with thin filaments to form sarcomeres.

To test directly this model, we knocked down each component of the I-Z-I complex including actin, zipper, Zasp, α-actinin and Mlp84B in primary muscle cells [29][31]. First, when actin was depleted by RNAi, primary muscles stained with anti-MHC showed much shorter and thinner striated myofibrils (Figure 3A). Since actin is essential for cell survival, the presence of striated myofibrils suggests that residual actin remains, which is consistent with the weak phalloidin staining observed (Figure 3A). We attempted to increase the severity of the RNAi phenotype by using a greater amount of dsRNAs (Figures S7 and S8), however, thin and shortened actin filaments were still present. There are six actin isoforms (Act5C, Act42A, Act57B, Act79B, Act87E and Act88F) in Drosophila, which only differ in a few amino acids. Act5C, Act42A, Act57B, Act87E are believed to be expressed in larval body wall muscles [32]. Act5C and Act42A are cytoplasmic actins uniformly expressed in all cell types, including muscles, whereas Act57B and Act87E are muscle specific. Although the dsRNAs we used target all actin isoforms, our primary cell RNAi protocol may not allow complete depletion of actin isoforms, such as Act42A and Act5C, as they are expressed in myoblasts [17]. Since, it is possible that the initial sarcomere assembly in muscles utilizes cytoplasmic actins as building blocks, we speculate that the shortened actin filaments (Figure 3A) results from residual amount of cytoplasmic Act5C and Act42. In further support of this model, it has been previously shown that in vertebrate muscles, the actin turn-over rate in thin filaments is over 100 fold lower than that in cytoplasmic actin filaments [33]. Thus, the extreme slow turn-over rate of these cytoplasmic actins, initially incorporated into thin filaments, could be sufficient to allow the formation of short sarcomeres [18].

The I-Z-I complex is required for sarcomere organization.

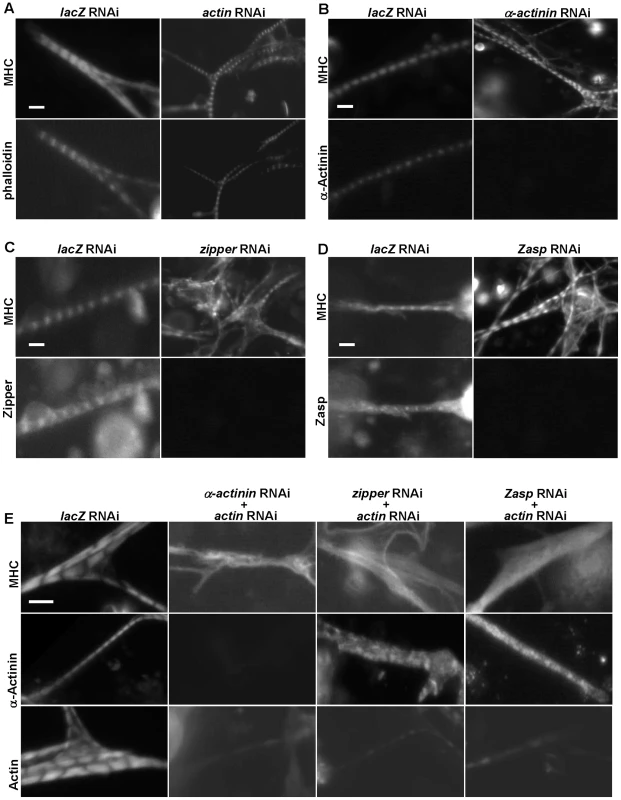

Fig. 3. The I-Z-I complex is required for sarcomere organization.
(A–D) DsRNAs against actin (A), α–actinin (B), zipper (C), Zasp (D) or control lacZ were applied to primary muscle cell cultures. Phalloidin, anti-α-actinin, anti-zipper and anti-Zasp antibodies revealed the knock-down efficiencies of the various dsRNAs. The structure of the muscles was monitored following staining using an anti-MHC antibody. Note that in the absence of a single component of I-Z-I, thick filament remains in a striated pattern. As a control, we treated muscle cells with actin RNAi in combination with lacZ RNAi or mlp84B RNAi, which did not produce any significant effects on muscle striation pattern (data not shown). (E) DsRNAs against α-actinin, zipper and Zasp were individually mixed with a dsRNA against actin in a 1∶1 ratio. The sarcomeric organization of primary muscle cells was analyzed following staining using anti-MHC, anti-α-actinin and anti-actin antibodies, respectively. Note the absence of MHC striation when two I-Z-I components are depleted. We also confirmed the localization pattern of Z-line proteins with our available antibodies after double knock-down and showed absence of striation (data not shown), indicating that the I-Z-I complex is critical for the periodic localization of other functional complexes such as MHC and Tns-Tm. Scale bars: 10 µm.

Second, we investigated the role of Z-line components, such as α-actinin, zipper, Zasp, and Mlp84B, in sarcomere organization (Figure 3B–3D and data not shown). No significant changes in the striation pattern, as monitored by MHC staining, were observed in the α-actinin knock-down, indicating that α-actinin is not required for thick filament organization ([34], Figure 3B). Knock-down of zipper led to fuzzy but discernable striation (Figure 3C and Figure S9A, S9B). Silencing of Zasp gave similar results as seen from zipper RNAi knock-down results (Figure 3D). Further, inactivation of Mlp84B appeared to have a negligible effect on the muscle sarcomere structure as determined by anti-MHC staining (data not shown). Finally, previous electron microscopic analysis of α-actinin, zasp, and Mlp84B mutant muscles have shown that Z-disc structures are still present in these muscles [30], [31], [34], indicating that knock-down of these sarcomeric components does not affect the initial formation of sarcomeres.

Because removal of I-Z-I components individually did not lead to dramatic MHC disorganization, we tested whether these proteins act in a partially redundant manner by performing combinatorial perturbations. Simultaneous knock-downs of actin and one of Z-line proteins such as α-actinin, zipper or Zasp were associated with complete loss of striation and “stress fiber-like” MHC phenotypes reminiscent of randomized MHC filaments (Figure 3E). These results suggest that myosin can assemble into thick filaments independently of I-Z-I complexes but that the sarcomeric structure of MHC filaments require the ordered arranged I-Z-I complexes and vice versa.

Zipper/Zasp/α-actinin may act as a tension sensor

Previous studies have reported that zasp and α-actinin mutant muscles exhibit some defects in sarcomeric structures [30], [34], which contrasts with our RNAi results that Zasp is not required for initial sarcomere assembly. To rule out the possibility that our results do not simply reflect a partial knock-down due to RNAi, we examined the muscle phenotypes of zasp and α-actinin amorphic mutants at the stage when myofibrils just start to form and display striated bands for MHC, α-actinin and Zasp (left panels in Figure 4A). At that stage, we could detect regularly spaced staining distribution of these proteins indicating that Zasp is not required for initial sarcomere assembly (Figure 4A). At later stages however, striation in zasp mutant embryos began to disappear, suggesting that Zasp is required for sarcomere maintenance (data not shown) [30].

Zipper/Zasp/α-actinin acts as a tension sensor to regulate sarcomere assembly.

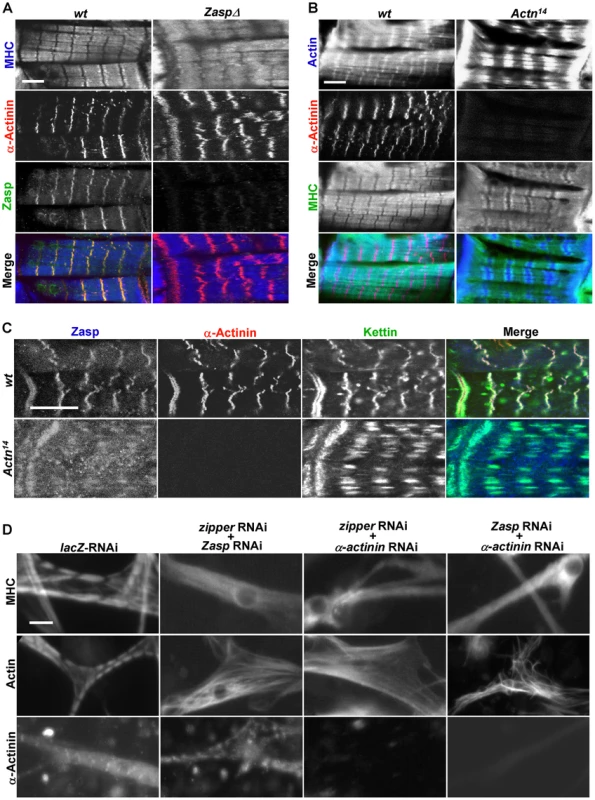

Fig. 4. Zipper/Zasp/α-actinin acts as a tension sensor to regulate sarcomere assembly.
(A) Confocal micrographs of control muscles of a stage 17 wild-type embryo (left panels) and age-comparable zasp null mutant muscles (right panels) stained for MHC (blue in merge), α-actinin (red in merge) and Zasp (green in merge). Scale bar: 10 µm. (B) Confocal micrographs of control muscles of a stage 17 wild-type embryo (left panels) and same stage α-actinin null mutant muscles from Actn14 (right panels) stained for actin (blue in merge), α-actinin (red in merge) and MHC (green in merge). Scale bar: 10 µm. (C) Fluorescent confocal micrographs of control muscles of a stage 17 wild-type embryo (top panels) and α-actinin null mutant muscles from Actn14 of same stage (bottom panels) stained for Zasp (blue in merge), α-actinin (red in merge) and kettin (green in merge). Note that α-actinin null mutant muscles still have striated sarcomeres, but with expanded Z lines. Scale bar: 10 µm. (D) Primary muscle cells were treated with combinations of dsRNAs targeting components of the zipper/Zasp/α-actinin complex. Muscle striation was evaluated using anti-MHC, anti-actin and anti-α-actinin antibodies. Scale bar: 10 µm.

Next, we analyzed α-actinin mutants using anti-actin and anti-MHC antibodies and found that their Z lines were expanded, a phenotype consistent with previous electron microscopy studies (Figure 4B) [34]. Expanded Z lines were also present in α-actinin mutant muscles stained with kettin and Zasp antibodies (Figure 4C), indicating that α-actinin is required for Z-line condensation but not for sarcomere assembly or recruitment of other Z line proteins such as titin/kettin and Zasp. In contrast, in kettin mutant muscles, no striation pattern was detected for any markers [35], [36]. Collectively, these observations point out that the recruitment of Zasp, kettin and α-actinin to the Z-line does not occur in a step-wise fashion. Instead, it is more likely that they cooperate with each other in stabilizing Z-lines and are recruited concomitantly. Notably, zipper/Zasp/α-actinin are highly enriched at the muscle attachment sites and act downstream of integrin to link the muscle cytoskeleton to the cell membrane, suggesting that zipper/Zasp/α-actinin may act as a tension sensor to mediate the interaction between integrin and the internal cytoskeleton. Interestingly, single depletion of zipper, Zasp or α-actinin led to less severe phenotypes in sarcomere assembly in primary muscle cell cultures than in vivo (Figure 3A–3D), most likely reflecting the weaker stress on fibers in vitro versus in vivo.

To test this idea, we induced muscle stress in primary culture by increasing muscle cell intracellular calcium (Ca2+) concentration. To increase contraction by augmenting the level of intracellular Ca2+, we knocked-down the plasma membrane calcium ATPase (PMCA) that pumps intracellular Ca2+ from the inside of cells [18]. We first found conditions where primary muscles were able to maintain relatively normal sarcomere structures when treated with 40 ng of dsRNAs against PMCA (Figure S10A). We next used this sensitized condition as a stress background for primary muscles in culture to examine the effect of reduction of those tension sensor components by double RNAi knock-down. Consistent with the idea that zipper/Zasp/α-actinin may act as a tension sensor, double knock-down with the mixture of dsRNAs targeting PMCA and either zipper or Zasp, or α-actinin led to significant disruption of sarcomeric organization, although primary muscles treated with either 40 ng of dsRNAs targeting PMCA, or 250 ng of dsRNAs targeting zipper or Zasp, or α-actinin still had normal sarcomere structures (Figure S10B). We further looked at the distribution of these tension-sensor proteins in muscles from paralyzed embryos caused by the mutation in immaculate connections (imac), a gene that encodes a neuron-specific kinesin required for presynaptic maturation [37]. In agreement with our previous conclusions, these tension-sensor components were still present at muscle ends, although the sarcomere structures were disrupted, presumably due to less tension on the muscles in these animals. (Figure S11).

We then explored the functional interaction among zipper, Zasp or α-actinin, given that single knock-down of these Z-line proteins did not reveal a requirement in sarcomere assembly. Strikingly, removal of zipper, Zasp, and α-actinin together led to a complete loss of striation (Figure 4D), suggesting that they function redundantly in sarcomere assembly. Thus, single knock-down of only one of these tension sensor proteins is not sufficient to disrupt the whole complex, however, the combined removal of these components leads to a collapse of the entire sarcomere.

Finally, we examined the role of titin/kettin in sarcomere formation. Titin is a large protein localized at Z-line that contains multiple domains important for interactions among I-Z-I components. It has been proposed to act as a third filament to regulate plasticity of sarcomere. Consistent with its predominant role in the sarcomere, knock-down of titin is associated with complete disorganization of the sarcomere both in vitro and in vivo (Figure S12A and S12B). Removal of the scaffold protein titin may be equivalent to simultaneously disturbing the association of I-Z-I proteins and mimics the combinational knock-down of components from I-Z-I complex.

Role of integrin in sarcomere assembly

Genetic studies in C. elegans, Drosophila and mice have implicated the integrin pathway in sarcomere assembly [11][14]. Although, disruption of integrins is associated with a complete loss of myofibril striation in muscle cells [14], the exact role of integrins in sarcomere assembly has not been explored. Recently, integrin has been proposed to pave the way for sarcomere assembly by initiating the assembly of actin filaments at the muscle cell membrane [10]. A prediction of this model is that, in the absence of myosin, I-Z-I complexes should be tethered to costameres, which link muscle cell membrane to myofibrils, with integrins. To test this model, we dissected embryos from wild-type and Mhc1 mutant embryos that lack MHC and stained them with antibodies against integrin, actin and α-actinin. In wild-type muscles, β-integrin is highly concentrated at the muscle attachment sites and relatively weakly stained at the position of the costameres with a striated pattern that appears to align with Z lines (Figure 1B). In contrast, we could not detect any striation for β-integrin at the location of the costameres in Mhc1 mutant muscles. No striation could be detected for actin and α-actinin either. However, the pattern stained by actin and α-actinin did not match that of β-integrin on the membrane, indicating that there is no obvious connection between Z lines and β-integrin in Mhc1 mutant muscles. These results suggest that integrins do not appear to be involved in the assembly of I-Z-I complexes, and that MHC is required for integrins to be aligned with Z-lines.

We further investigated the expression patterns of muscle markers in both wild-type and integrin null mutant (mysXG43) muscles of stage 17 embryos when myofibrils start to form [30]. At that stage, β-integrin deficient muscles contained multiple nuclei, indicating that the myoblast fusion process took place normally, and were not yet completely rounded up (Figure 5A). Further, in agreement with a previous report [14], sarcomeric structures in these muscles were totally disrupted. Immunostaining using antibodies against actin, MHC and α-actinin revealed that the majority of both actin filaments and Z lines collapsed to the center of muscle cells and formed aggregates where myosin filaments were excluded (Figure 5A). This result shows that association of actin and α-actinin occurs even in the absence of integrins, implying that I-Z-I complex formation may not require integrins. Furthermore, in the absence of integrins, thin and thick filaments cannot interdigitate with each other to form sarcomeres. Altogether, our immunohistochemical study results are consistent with previous electron microscopy analysis of integrin mutant muscles, which contained disorganized thin and thick filaments distributed in the central region of myotubes [38]. Further, a recent report has elegantly dissected the dual role of integrin in muscle attachment and sarcomeric organization using an inducible targeted RNAi system [39]. This study revealed that reduction of integrin led to the dissociation of Z-disc proteins into small dots, whereas muscle attachment sites were not affected, and thus suggested a role for integrin in maintainance of sarcomere structures that may be different from its role at attachment sites. Altogether, based on the data from our study and others [14], [38], integrins appear to play very important roles in maintaining the tension at the cell periphery for organization of sarcomere structures. We propose that integrins serve as anchor points for the floating I-Z-I complex and provide tensions that allow the interdigitation of thin and thick filaments.

Integrin is essential for sarcomere assembly and model.
Fig. 5. Integrin is essential for sarcomere assembly and model.
(A) Fluorescent confocal micrographs of stage 17 wild-type muscles (left panels) and mys null mutant muscles of the same age (right panels) stained for actin (blue in merge), α-actinin (red in merge) and MHC (green in merge). DAPI staining reveals the multinucleated mys null mutant muscles. Note that I-Z-I collapsed to the center of muscles in the mys mutant, where thick filaments were mostly excluded. Scale bar: 10 µm. (B) A “two-state sarcomere assembly” model. Prior to sarcomere formation, various complexes, including integrin, tension sensor, I-Z-I complex, MHC filament and Tns-Tm, are assembled independently. Subsequently, the various complexes assemble and interact with the integrin pathway responsible for sarcomere stretching. Removal of any one of these complexes leads to a collapse and disorganization of the entire system. (C) Relationships between the sarcomeric functional complexes. The arrows indicate the interaction among these complexes as determined by the results presented in this study.

A model for sarcomere assembly

Based on our in vitro and in vivo mutant analyses, we propose that sarcomeric proteins exist in two states: one being the chaotic but independently assembled differential functional complexes, and the other one being the highly ordered suprastructure made from these complexes (Figure 5B). We propose that several functional complexes including integrin, zipper/Zasp/α-actinin, I-Z-I, Tns-Tm and MHC first assemble independently (as described in shadowed boxes in Figure 5C). Subsequently, we propose that integrins serve as anchor points for the floating I-Z-I complex starting from muscle ends, and provide tensions that allow the interdigitation of thin and thick filaments for de novo sarcomere assembly. This in turn may facilitate the spatial organization of integrins on cell membrane by linking the integrins to the underlying cytoskeleton and “towing” the integrin adhesion complex into periodic position, which may further strengthen newly formed myofibril structures. In the context of our loss of function studies, only those perturbations that affect the formation of the independent complexes will lead to the failure in assembly of striated sarcomeres. If depletion of any one protein has negligible effects on the localization of the complex where it belongs to, then sarcomere striation will be maintained. Altogether, our study provides a comprehensive analysis of the functional effects of perturbation of sarcomeric proteins on myofibril assembly. Because of the similarities between Drosophila and vertebrate sarcomeres the “wo-state”assembly model that we have proposed should prove relevant to striated muscles.

Methods

Drosophila genetics

Oregon R was used as a wild-type strain. Mutations in genes encoding sarcomeric proteins are: Mhc1, zaspΔ, mysXG43, Actn14, imac170 ([11], [22], [30], [34]), and zipp1215. Mutant strains were balanced with twi-GAL4>UAS-GFP or Kr-GFP and mutant primary muscle cells were identified by lack of GFP expression. For RNAi experiments, Mhc-Gal4 [40] and UAS-Mhc hp [41] flies were used.

Embryonic primary cell culture

Embryonic primary cell cultures were established as previously described [17], [42]. Eggs were collected on molasses plates for 2 hrs and incubated for 4 hrs at 25°C. Embryos were dechorionated in 50% bleach for 3 mins, rinsed thoroughly with 70% ethanol and sterilized water, and dissociated into a cell suspension using Dounce homogenizers (VWR Scientific, Seattle, WA) in Shields and Sang M3 medium (Sigma). Cell suspensions were spun once at 40 g for 10 mins to pellet tissue debris, large cell clumps and vitelline membranes. Supernatants were then transferred to a fresh tube and spun at 360 g for 10 mins to pellet the cells. Cells were washed once and re-suspended in primary cell medium (10% heat-inactivated fetal bovine serum from JRH Biosciences, 10 mU/ml bovine insulin in M3 medium from Sigma). Cells were seeded and grown in 384-well optically clear plastic plates (Costar) at 1.7–2.5×105 cells/cm2.

Primary cell RNAi treatment

DsRNAs synthesis and RNAi treatment were performed according to the DRSC protocols (http://flyRNAi.org) using amplicons to target various genes: DRSC23472 and DRSC23961 for actin; DRSC14106 for α-actinin; DRSC03367 and DRSC25959 for Mhc; DRSC28798 for troponin T; DRSC29330 for troponin I; DRSC04916 and DRSC07564 and DRSC11307 for troponin C; DRSC16887 and DRSC26884 for tropomyosin; DRSC04725 and DRSC22489 and DRSC28416 for zipper; DRSC07121 for Zasp; DRSC20341 and DRSC39458 for integrin; DRSC34373 and DRSC34374 for PMCA. DsRNA against lacZ was used as a control in all the above experiments. Primary muscle cells were prepared as described above and seeded at approximately 4×104 cells per well in plates containing dsRNAs. After 22 hrs in serum-free M3 medium, additional serum-containing culture medium was added to bring the solution to a final concentration of 10% FCS. For multiple knock-down experiments, dsRNAs were mixed into the plate before adding the muscle cells.

Immunofluorescence microscopy

Flies were allowed to lay eggs for 2 hrs and embryos further developed at 25°C for 14–16 hrs to reach stage 17 of embryogenesis. The body wall muscles of staged embryos were dissected by following methods described previously [16]. Dissected muscles or primary cells were fixed with 4% formaldehyde. Cells were stained overnight at 4°C with the first antibody or phalloidin Alexa Fluor 568 (Molecular Probes; 1∶2000) and DAPI (Sigma, 1∶5000) in PBTB (PBS, 0.1% Triton X-100, 1% BSA), washed once in PBS and left in PBS containing 0.02% NaN3. For whole mount embryo stainings at stages 15–16, standard protocol was followed, including dechorionization, fixation, rehydration, and staining with antibodies.

Antibodies used in this study: rat anti-actin, anti-MHC, anti-TnT, anti-TnC, anti-Tm (1∶500) (The Babraham Institute, Cambridge, UK), mouse anti-α-actinin (1∶100) (from Dr J. Saide, Boston University, Boston, MA), rabbit anti-zipper (1∶500) (from Dr. D. Kiehart), rabbit anti-Zasp (1∶1000) (from Dr. F. Schöck), anti-kettin (1∶1000) (Dr. D. Andrew), anti-PS3/anti-β-integrin (1∶100) (Developmental studies hybridoma bank). The second antibodies from invitrogen include Alexa 488 and Alexa 594.

Generation of anti-TnI antibody

Full-length TnI was cloned into pGEX4T-1 and GST fusion protein was purified according to the protocols described from Pharmacia. The recombinant protein was sent to Abmart Antibody Company (Shanghai, China) and the antibody was purified using the original antigen. TnI antibody specificity was confirmed by cell staining results of TnT RNAi-treated muscle cells.

Real-time PCR

qRT-PCR was performed to analyze the RNA level of actin in Drosophila S2 cells treated by dsRNA against lacZ or actin at different concentrations followed by reverse transcription using the SuperScript first-strand synthesis kit (Invitrogen). The experiment was carried out in Stratagene MX4000 thermocycler using SyBy GreenTM detection protocol. Sequencing primers for Drosophila actin, forward: GAGCGCGGTTACAGCTTCA, reverse: TCCTTGATGTCGCGCACA.

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4

Attachment 5

Attachment 6

Attachment 7

Attachment 8

Attachment 9

Attachment 10

Attachment 11

Attachment 12


Zdroje

1. AhmadF

SeidmanJG

SeidmanCE

2005 The genetic basis for cardiac remodeling. Annu Rev Genomics Hum Genet 6 185 216

2. DalkilicI

KunkelLM

2003 Muscular dystrophies: genes to pathogenesis. Curr Opin Genet Dev 13 231 238

3. HoltzerH

HijikataT

LinZX

ZhangZQ

HoltzerS

1997 Independent assembly of 1.6 microns long bipolar MHC filaments and I-Z-I bodies. Cell Struct Funct 22 83 93

4. LinZ

LuMH

SchultheissT

ChoiJ

HoltzerS

1994 Sequential appearance of muscle-specific proteins in myoblasts as a function of time after cell division: evidence for a conserved myoblast differentiation program in skeletal muscle. Cell Motil Cytoskeleton 29 1 19

5. LuMH

DiLulloC

SchultheissT

HoltzerS

MurrayJM

1992 The vinculin/sarcomeric-alpha-actinin/alpha-actin nexus in cultured cardiac myocytes. J Cell Biol 117 1007 1022

6. RheeD

SangerJM

SangerJW

1994 The premyofibril: evidence for its role in myofibrillogenesis. Cell Motil Cytoskeleton 28 1 24

7. LoRussoSM

RheeD

SangerJM

SangerJW

1997 Premyofibrils in spreading adult cardiomyocytes in tissue culture: evidence for reexpression of the embryonic program for myofibrillogenesis in adult cells. Cell Motil Cytoskeleton 37 183 198

8. EhlerE

RothenBM

HammerleSP

KomiyamaM

PerriardJC

1999 Myofibrillogenesis in the developing chicken heart: assembly of Z-disk, M-line and the thick filaments. J Cell Sci 112 Pt 10 1529 1539

9. GregorioCC

GranzierH

SorimachiH

LabeitS

1999 Muscle assembly: a titanic achievement? Curr Opin Cell Biol 11 18 25

10. SparrowJC

SchockF

2009 The initial steps of myofibril assembly: integrins pave the way. Nat Rev Mol Cell Biol 10 293 298

11. BrownNH

1994 Null mutations in the alpha PS2 and beta PS integrin subunit genes have distinct phenotypes. Development 120 1221 1231

12. LeeM

CramEJ

ShenB

SchwarzbauerJE

2001 Roles for beta(pat-3) integrins in development and function of Caenorhabditis elegans muscles and gonads. J Biol Chem 276 36404 36410

13. SchwanderM

LeuM

StummM

DorchiesOM

RueggUT

2003 Beta1 integrins regulate myoblast fusion and sarcomere assembly. Dev Cell 4 673 685

14. VolkT

FesslerLI

FesslerJH

1990 A role for integrin in the formation of sarcomeric cytoarchitecture. Cell 63 525 536

15. BloorJW

BrownNH

1998 Genetic analysis of the Drosophila alphaPS2 integrin subunit reveals discrete adhesive, morphogenetic and sarcomeric functions. Genetics 148 1127 1142

16. BaiJ

BinariR

NiJQ

VijayakanthanM

LiHS

2008 RNA interference screening in Drosophila primary cells for genes involved in muscle assembly and maintenance. Development 135 1439 1449

17. BaiJ

SeppKJ

PerrimonN

2009 Culture of Drosophila primary cells dissociated from gastrula embryos and their use in RNAi screening. Nat Protoc 4 1502 1512

18. BaiJ

HartwigJH

PerrimonN

2007 SALS, a WH2-domain-containing protein, promotes sarcomeric actin filament elongation from pointed ends during Drosophila muscle growth. Dev Cell 13 828 842

19. SchultheissT

LinZX

LuMH

MurrayJ

FischmanDA

1990 Differential distribution of subsets of myofibrillar proteins in cardiac nonstriated and striated myofibrils. J Cell Biol 110 1159 1172

20. Van der VenPF

EhlerE

PerriardJC

FurstDO

1999 Thick filament assembly occurs after the formation of a cytoskeletal scaffold. J Muscle Res Cell Motil 20 569 579

21. SangerJW

KangS

SiebrandsCC

FreemanN

DuA

2005 How to build a myofibril. J Muscle Res Cell Motil 26 343 354

22. O'DonnellPT

BernsteinSI

1988 Molecular and ultrastructural defects in a Drosophila myosin heavy chain mutant: differential effects on muscle function produced by similar thick filament abnormalities. J Cell Biol 107 2601 2612

23. BernsteinSI

O'DonnellPT

CrippsRM

1993 Molecular genetic analysis of muscle development, structure, and function in Drosophila. Int Rev Cytol 143 63 152

24. NishiiK

MorimotoS

MinakamiR

MiyanoY

HashizumeK

2008 Targeted disruption of the cardiac troponin T gene causes sarcomere disassembly and defects in heartbeat within the early mouse embryo. Dev Biol 322 65 73

25. NongthombaU

ClarkS

CumminsM

AnsariM

StarkM

2004 Troponin I is required for myofibrillogenesis and sarcomere formation in Drosophila flight muscle. J Cell Sci 117 1795 1805

26. SehnertAJ

HuqA

WeinsteinBM

WalkerC

FishmanM

2002 Cardiac troponin T is essential in sarcomere assembly and cardiac contractility. Nat Genet 31 106 110

27. HitchcockSE

1975 Regulation of muscle contraction: bindings of troponin and its components to actin and tropomyosin. Eur J Biochem 52 255 263

28. PelletierL

O'TooleE

SchwagerA

HymanAA

Muller-ReichertT

2006 Centriole assembly in Caenorhabditis elegans. Nature 444 619 623

29. BloorJW

KiehartDP

2001 zipper Nonmuscle myosin-II functions downstream of PS2 integrin in Drosophila myogenesis and is necessary for myofibril formation. Dev Biol 239 215 228

30. JaniK

SchockF

2007 Zasp is required for the assembly of functional integrin adhesion sites. J Cell Biol 179 1583 1597

31. ClarkKA

BlandJM

BeckerleMC

2007 The Drosophila muscle LIM protein, Mlp84B, cooperates with D-titin to maintain muscle structural integrity. J Cell Sci 120 2066 2077

32. RoperK

MaoY

BrownNH

2005 Contribution of sequence variation in Drosophila actins to their incorporation into actin-based structures in vivo. J Cell Sci 118 3937 3948

33. LittlefieldR

FowlerVM

1998 Defining actin filament length in striated muscle: rulers and caps or dynamic stability? Annu Rev Cell Dev Biol 14 487 525

34. FyrbergC

KetchumA

BallE

FyrbergE

1998 Characterization of lethal Drosophila melanogaster alpha-actinin mutants. Biochem Genet 36 299 310

35. HakedaS

EndoS

SaigoK

2000 Requirements of Kettin, a giant muscle protein highly conserved in overall structure in evolution, for normal muscle function, viability, and flight activity of Drosophila. J Cell Biol 148 101 114

36. ZhangY

FeatherstoneD

DavisW

RushtonE

BroadieK

2000 Drosophila D-titin is required for myoblast fusion and skeletal muscle striation. J Cell Sci 113 Pt 17 3103 3115

37. Pack-ChungE

KurshanPT

DickmanDK

SchwarzTL

2007 A Drosophila kinesin required for synaptic bouton formation and synaptic vesicle transport. Nat Neurosci 10 980 989

38. NewmanSMJr

WrightTR

1981 A histological and ultrastructural analysis of developmental defects produced by the mutation, lethal(1)myospheroid, in Drosophila melanogaster. Dev Biol 86 393 402

39. PerkinsAD

EllisSJ

AsghariP

ShamsianA

MooreED

Integrin-mediated adhesion maintains sarcomeric integrity. Dev Biol 338 15 27

40. SchusterCM

DavisGW

FetterRD

GoodmanCS

1996 Genetic dissection of structural and functional components of synaptic plasticity. I. Fasciclin II controls synaptic stabilization and growth. Neuron 17 641 654

41. NiJQ

MarksteinM

BinariR

PfeifferB

LiuLP

2008 Vector and parameters for targeted transgenic RNA interference in Drosophila melanogaster. Nat Methods 5 49 51

42. BernsteinSI

FyrbergEA

DonadyJJ

1978 Isolation and partial characterization of Drosophila myoblasts from primary cultures of embryonic cells. J Cell Biol 78 856 865
