Classical Genetics Meets Next-Generation Sequencing: Uncovering a Genome-Wide Recombination Map in

article has not abstract

Published in the journal: . PLoS Genet 8(10): e32767. doi:10.1371/journal.pgen.1003024
Category: Perspective


article has not abstract

Homologous recombination is a potent genetic force that impacts myriad aspects of genome evolution, from standing levels of nucleotide diversity to the efficacy of natural selection. Coarse-scale recombination rates have long been known to be variable, and much of the early work exploring this variation exploited Drosophila melanogaster as a model [1][5]. Yet, determining the scale and scope of intra- and inter-genomic variation in fine-scale recombination rate in Drosophila has proven quite challenging. Fine-scale recombination rate variation is well-described in humans, mice, and yeast, owing in part to techniques such as sperm typing and chromatin immunoprecipitation (for review, see [6]). However, the underlying biology of recombination in Drosophila (including the lack of crossing-over in males, a less punctate recombinational landscape, and the technical difficulties associated with isolating meiotically active cells from the female germline) has precluded the application of these techniques to Drosophila. Moreover, linkage disequilibrium–based approaches, which have enjoyed success in many systems (e.g., [7], [8]), have been hampered in Drosophila until recently by a lack of genome-wide polymorphism data. Though such data are increasingly available, the rapid decay of linkage disequilibrium in Drosophila (e.g., [9]) and possible rampant adaptation (e.g., [10]) may limit the accuracy and efficacy of such approaches. Consequently, previous work exploring fine-scale recombination rate variation in Drosophila has been limited to localized regions or one to two chromosomes (e.g., [11][14]). Not to be deterred, Comeron and colleagues couple the power of classical genetics with next-generation sequencing to provide for the first time a high-resolution recombination map of the D. melanogaster genome [15]. Both outcomes of the meiotic recombination process are captured therein: crossovers, which involve reciprocal exchange of genetic material, and noncrossovers, which result in non-reciprocal exchange (Figure 1).

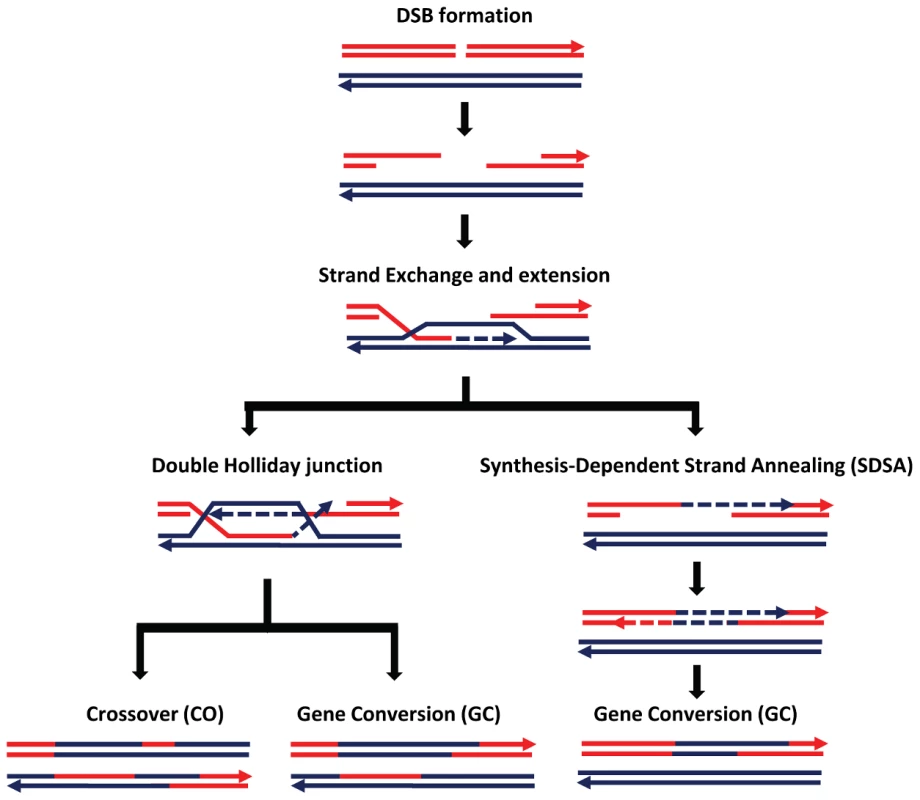

Fig. 1. Schematic representation of the double-strand break (DSB) repair pathway and recombination from Comeron et al. [15].
Schematic representation of the double-strand break (DSB) repair pathway and recombination from Comeron et al. <em class=&quot;ref&quot;>[<b>15</b>]</em>.
Note that crossovers only result from resolution of a double Holliday junction, while noncrossover events (denoted here as “gene conversion” events) can result from both the SDSA pathway and resolution of a double Holliday junction.

To create this landmark map, Comeron and colleagues generated recombinant advanced intercross lines (RAIL), derived from eight crosses among twelve wild-derived lines. To accurately identify crossover and noncrossover events, haplotype rather than genotype data are required, and Comeron and colleagues use a clever technique to recover haplotypes. RAIL females were individually crossed to D. simulans, and the genomes of single hybrid progeny were sequenced with Illumina technology. Reads mapping to D. simulans were removed bioinformatically to reveal a haploid, meiotically produced D. melanogaster genome. In all, over 100,000 recombination events were localized with kilobase-level precision.

Certainly, this genome-wide recombination map will empower population genetic and molecular evolutionary studies in Drosophila for years to come. However, the sheer number of events catalogued combined with the resolution at which breakpoints could be mapped facilitates a great deal more than quantifying intra- and inter-genomic recombination rate variation. For instance, these data show that although crossover and noncrossover rates are both significantly variable genome-wide, rates of crossing-over are ten times more variable than noncrossover rates. In addition, crossing-over rates are variable among crosses, with the bulk of this variation being driven by regions of increased crossing-over revealed in some crosses but not in others. This is in contrast to previous work suggesting evolutionary conservation of fine-scale recombination rates in Drosophila [14]. Thus, the physical and temporal scales at which fine-scale recombination rates are conserved remain an open question. Another striking finding is that noncrossover and crossover rates are negatively correlated, and moreover, the noncrossover∶crossover ratio correlates negatively with nucleotide diversity. Indeed, the elegant simplicity of this experiment is in stark contrast to the rich complexity of the resulting data, with the results shedding unprecedented light on variation in the Drosophila recombinational landscape and providing new insights into the genetic and molecular bases of this variation.

These data should also allow us to address multiple aspects of the recombination process in an evolutionary context, building on recent advances in other systems. For example, the noncrossover∶crossover ratio has a considerable range, from 0.73∶1 in yeast [16] to 4∶1–15∶1 in humans [17], with D. melanogaster showing a ratio of ∼4∶1 [15]. What determines this ratio? Are different double-strand break resolution pathways (Figure 1) employed to different degrees in different systems, or has divergence in the proteins involved in these pathways generated this variation? Similarly, tract lengths associated with noncrossovers show marked variability, with a median length of 1.8 kb in yeast but much shorter tract lengths in humans (200–1,000 bp) (for review, see [18]) and D. melanogaster (∼500 bp) [15]. Why should such a conserved genetic feature show these differences between taxa?

One particularly interesting evolutionary question concerns the local distribution of crossovers. Recent work in humans and mice implicates histone methyltransferase PRDM9 as a major determinant of recombination hotspots [19][21], but several taxa including Drosophila lack a functional copy of this gene [22]. How are crossover locations determined in species lacking PRDM9? Are other histone methyltransferases playing a similar role or are crossover locations determined by other genetic features? With a detailed crossover map in D. melanogaster, we can begin to address this question. One motif associated with crossover locations in D. melanogaster is the simple repeat [CCN]n, which is noteworthy because the repeat [CCG]n and its reverse complement [CGG]n are enriched in dog recombination hotspots [7]. It is intriguing that the canine genome too lacks a functional copy of PRDM9 [7], [22]. Further comparative work exploring crossover distribution and associated sequence motifs in humans, dogs, and Drosophila will enable great progress in uncovering the genetic determinants of crossover distribution in species lacking PRDM9.

These data have further implications yet, particularly for population genetic inference. Traditional population genetic models, such as those aimed at detecting selection by testing for departures from neutral expectation, rely on the fundamental assumption that recombination rate is constant within and between genomes. Violating this assumption may compromise evolutionary inferences. Previous work suggests that positive selection can lead to false inferences of recombination hotspots [23], [24], and it therefore seems reasonable to hypothesize that recombination rate heterogeneity could generate false signatures of positive selection. This hypothesis has not been tested to date, and data presented in this study informs parameter space such that we can investigate this question. Should this assumption adversely affect population genetic inference, these data will be instrumental for developing new models that accommodate recombination rate variation. Such new models have significant potential to enable robust population genetic inference of demography and adaptation.


1. SternC (1926) An effect of temperature and age on crossing over in the first chromosome of Drosophila melanogaster. Proceedings of the National Academy of Sciences of the United States of America 12: 530–532.

2. SmithHF (1936) Influence of temperature on crossing-over in Drosophila. Nature 138: 329–330.

3. PloughHH (1917) The effect of temperature on crossingover in Drosophila. Journal of Experimental Zoology 24: 147–209.

4. PloughHH (1921) Further studies on the effect of temperature on crossing over. Journal of Experimental Zoology 32: 187–202.

5. BrooksLD, MarksRW (1986) The organization of genetic variation for recombination in Drosophila melanogaster. Genetics 114: 525–547.

6. NishantKT, RaoMRS (2006) Molecular features of meiotic recombination hot spots. Bioessays 28: 45–56.

7. AxelssonE, WebsterMT, RatnakumarA, PontingCP, Lindblad-TohK, et al. (2012) Death of PRDM9 coincides with stabilization of the recombination landscape in the dog genome. Genome Research 22: 51–63.

8. MyersS, BottoloL, FreemanC, McVeanG, DonnellyP (2005) A fine-scale map of recombination rates and hotspots across the human genome. Science 310: 321–324.

9. MackayTFC, RichardsS, StoneEA, BarbadillaA, AyrolesJF, et al. (2012) The Drosophila melanogaster Genetic Reference Panel. Nature 482: 173–178.

10. SellaG, PetrovDA, PrzeworskiM, AndolfattoP (2009) Pervasive Natural Selection in the Drosophila Genome? PLoS Genet 5: e1000495 doi:10.1371/journal.pgen.1000495.

11. SinghND, AquadroCF, ClarkAG (2009) Estimation of fine-scale recombination intensity variation in the white-echinus interval of D. melanogaster. Journal of Molecular Evolution 69: 42–53.

12. CirulliET, KlimanRM, NoorMAF (2007) Fine-scale crossover rate heterogeneity in Drosophila pseudoobscura. Journal of Molecular Evolution 64: 129–135.

13. KulathinalRJ, BennetttSM, FitzpatrickCL, NoorMAF (2008) Fine-scale mapping of recombination rate in Drosophila refines its correlation to diversity and divergence. Proceedings of the National Academy of Sciences of the United States of America 105: 10051–10056.

14. StevisonLS, NoorMAF (2010) Genetic and evolutionary correlates of fine-scale recombination rate variation in Drosophila persimilis. Journal of Molecular Evolution 71: 332–345.

15. ComeronJM, RatnappanR, BailinS (2012) The many landscapes of recombination in Drosophila melanogaster. PLoS Genet 8: e1002905 doi:10.1371/journal.pgen.1002905.

16. ManceraE, BourgonR, BrozziA, HuberW, SteinmetzLM (2008) High-resolution mapping of meiotic crossovers and non-crossovers in yeast. Nature 454: 479–U471.

17. JeffreysAJ, MayCA (2004) Intense and highly localized gene conversion activity in human meiotic crossover hot spots. Nature Genetics 36: 151–156.

18. ChenJM, CooperDN, ChuzhanovaN, FerecC, PatrinosGP (2007) Gene conversion: mechanisms, evolution and human disease. Nature Reviews Genetics 8: 762–775.

19. MyersS, BowdenR, TumianA, BontropRE, FreemanC, et al. (2010) Drive Against Hotspot Motifs in Primates Implicates the PRDM9 Gene in Meiotic Recombination. Science 327: 876–879.

20. ParvanovED, PetkovPM, PaigenK (2010) Prdm9 Controls Activation of Mammalian Recombination Hotspots. Science 327: 835–835.

21. BaudatF, BuardJ, GreyC, Fledel-AlonA, OberC, et al. (2010) PRDM9 is a major determinant of meiotic recombination hotspots in humans and mice. Science 327: 836–840.

22. OliverPL, GoodstadtL, BayesJJ, BirtleZ, RoachKC, et al. (2009) Accelerated evolution of the Prdm9 speciation gene across diverse metazoan taxa. PLoS Genet 5: 1000753 doi:10.1371/journal.pgen.1000753.

23. ReedFA, TishkoffSA (2006) Positive selection can create false hotspots of recombination. Genetics 172: 2011–2014.

24. O'ReillyPF, BirneyE, BaldingDJ (2008) Confounding between recombination and selection, and the Ped/Pop method for detecting selection. Genome Research 18: 1304–1313.
