Traditional health systems serve a key role in protecting populations, but are typically hierarchical, and information often travels slowly.
Novel Internet-based collaborative systems can have an important role in gathering information quickly and improving coverage and accessibility.
Mobile Internet usage is growing rapidly worldwide, making real-time information tools more readily available to both clinicians and the general public.
We present a brief summary of some promising mobile applications for health monitoring and information sharing, together with preliminary results from a study of our deployment of a smartphone application which enabled the general public to report infectious disease events.
These early efforts at tapping the power of mobile software tools illustrate potentially important steps in improving health systems as well as engaging the public as participants in the public health process.
In traditional clinical and public health structures, information flows through a hierarchy of providers and local or national authorities, who then communicate with the public via periodic announcements . Meanwhile, broad adoption of the Internet around the world has enabled a new class of participatory systems that allow people to contribute and share information and work together in real time . Wikipedia is perhaps the best-known such project. In the field of public health, online patient communities provide a forum for patients to share their experiences, collect information, and inform biomedical researchers –. Participatory systems in which data and intelligence are gathered from the population, traditionally through discussion or surveys, have also been used to gain an understanding of disease transmission, especially for zoonotic diseases . However, new internet community-based systems represent a departure from the careful control, verification, and data-informed actions of traditional structures, but can provide advantages in scalability, coverage, timeliness, and transparency. Furthermore, engaging the public transforms users from passive recipients of information to active participants in a collaborative community, helping to improve their own health as well as the health of those around them.
The rise in adoption of mobile phones and the Internet, in both industrialized and developing countries, has provided additional opportunities in “crowdsourcing,” which is engaging large groups of people to perform a task ,. Mobile phones hold particular promise for this type of opportunity because they can be used as point-of-care devices, function in remote locations, and are readily carried and used at any time ,. In this paper we outline examples of mobile systems for public health, illustrating some of the key concepts, opportunities, and successes made possible through the combination of emerging mobile technologies and user engagement (Table 1). We also detail our own contribution, the Outbreaks Near Me application for iPhone and Android smartphones (For images and further information please see: http://www.healthmap.org/outbreaksnearme/), built on the HealthMap , outbreak monitoring platform.
Participatory Mobile Systems for Public Health

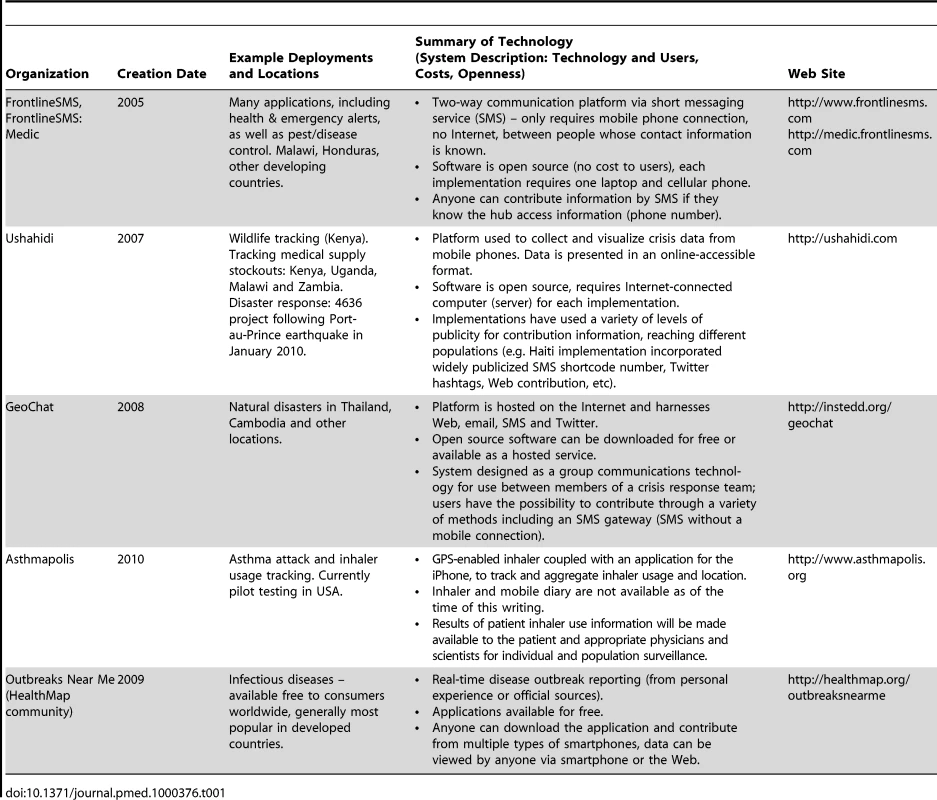

The use of mobile systems for health is a growing field with several participatory systems for public health. Selected systems are introduced here; the applications and geographies covered are outlined in Table 1.
One of the earliest efforts, FrontlineSMS (http://www.frontlinesms.com), is a platform for collecting and communicating information via short message service (SMS) . The system is distributed freely (open source), and allows information to be sent and received through a data hub consisting of a laptop and an inexpensive cell phone. Users send “broadcast” messages through this hub to groups of people, including basic forms requesting information, or emergency warning messages, and can also collect the responses via SMS. FrontlineSMS also allows citizens in remote areas to communicate their specific problems and needs directly to health workers who would not otherwise have the capacity to interact with populations in these areas using traditional methods. The system has been used in many countries, and its health-focused spin-off project, FrontlineSMS:Medic (http://medic.frontlinesms.com), is working with partners in Malawi, Burundi, Bangladesh, and Honduras, among others.
Begun in response to postelection violence in Kenya in 2007, Ushahidi (http://ushahidi.com) gained broad recognition and acclaim as an important resource for citizens and responders in the aftermath of the earthquake in Port-au-Prince, Haiti on 12 January 2010 . The system provides an open-source platform for collecting individual reports from users through SMS, Web, and email and provides tools for translating, classifying, and georeferencing these reports; the newest version of the platform further allows for submission via voice message—essential for illiterate users. Aggregated information is presented on a map-based interface accessible via Web and mobile phone. Regarding the Ushahidi deployment in Haiti, Craig Clark of the United States Marine Corps said, “I cannot overemphasize to you what the work of the Ushahidi/Haiti has provided. It is saving lives every day….I say with confidence that there are 100s of these kinds of [success] stories” . Ushahidi has also been deployed in several other countries, including Afghanistan, Uganda, Malawi, and Zambia.
Along the same lines of using SMS communication for situational awareness, GeoChat, one of a suite of open-source software tools designed by InSTEDD (http://instedd.org) , aims to achieve faster and more coordinated responses to disease outbreaks and natural disasters. GeoChat enables team members to communicate their position and important information using text messages, email, or a Web browser, with data instantly synchronized on every user's mobile phone or laptop. The system has been successfully launched in Thailand and Cambodia for disease activity monitoring . Although the system does not as yet engage users from the general public, the software is openly available for public use.
Still in its pilot phase, the Asthmapolis (http://asthmapolis.com) project uses mobile devices to enable asthma patients to track asthma attacks. By means of a GPS-enabled inhaler coupled with an iPhone application, users can track the frequency of attacks and where they happen, and the system aggregates data across users to generate a risk map for environmental triggers and improve understanding of the condition. This low-cost system is designed for improved study of underserved populations living with asthma.
HealthMap and Outbreaks Near Me
Because of its impact across borders and social strata, the 2009 H1N1 influenza pandemic both created broad public awareness of infectious disease threats and presented new challenges for disease detection and response systems. Part of a new generation of online real-time disease outbreak monitoring systems, HealthMap has demonstrated the effectiveness of collecting and filtering news media sources, outside of formal public health channels, for improved situational awareness . However, limitations in coverage, timeliness of reporting, availability of human reviewers, and effectiveness of automated algorithms remain. To address some of these limitations, we created Outbreaks Near Me, where we ask users from the general public to contribute reports from their own knowledge and experiences through a mobile application. We released the Outbreaks Near Me application for iPhone and Android in Fall 2009, during the second wave of pandemic H1N1 infection in the northern hemisphere.
To date, the iPhone application has been downloaded over 110,000 times, and collected over 2,400 submissions from users around the world. Most of these (69%) were approved for publication, and of these, 95% pertained to influenza. We separated the approved submissions into three categories: those referencing a news article (15%); “eyewitness” accounts of local events (41%); and personal accounts of illness, of either the submitter or close associates (13%). Although corroboration or verification of reports is often difficult, our analysts filtered spam, duplicates, and mistakenly submitted reports.
While these reports have proven useful, one particular challenge we have with the system is protecting the privacy of those involved in the event, while still informing the public. Many submissions contain not only a description of the event, but also the user's GPS coordinates or a photograph of the person involved. For these reasons, in addition to classifying and assessing validity, our analysts anonymize the submissions through a three-step process: they first remove identifying features such as names from the text; they then convert the coordinates to a town-level geographic feature name; and finally, place a black bar over pictures to obscure any identifying features. The anonymized record is posted to the public site, but the original submission remains secure in our private hospital database and is revealed only to authorized personnel. While the volume of submissions has not yet been great enough to necessitate automated filtering, one area of future work will be to implement effective automated processing, including anonymization. This type of anonymization has been applied in previous work in this area, for locations , medical records , and faces in digital images .

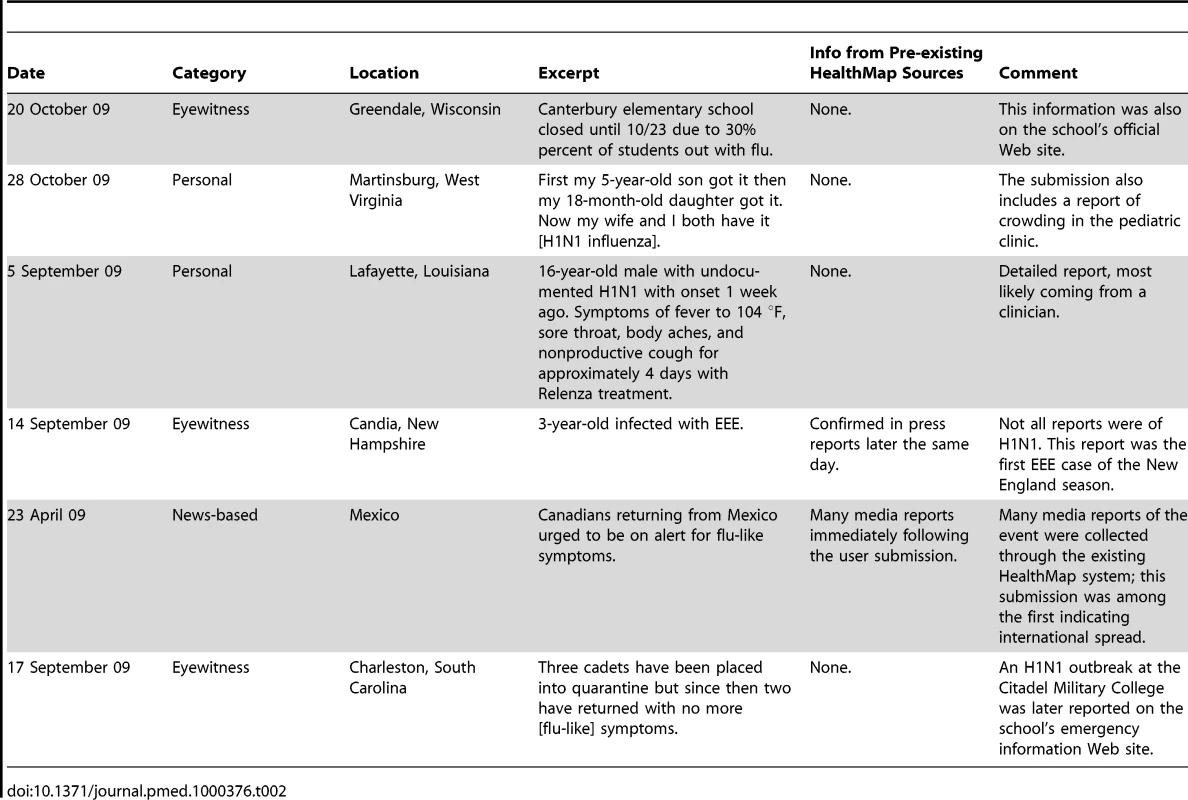

We took two approaches to evaluating user submissions. First, we constructed a small sample of reports with clearly identifiable events and determined whether the user-submitted information was novel or timely as compared to data from existing HealthMap sources, as shown in Table 2. These examples are actual user submissions from the system, appropriately deidentified through the above process. With outbreaks at schools in particular, several times individuals provided timely information unavailable through other channels.

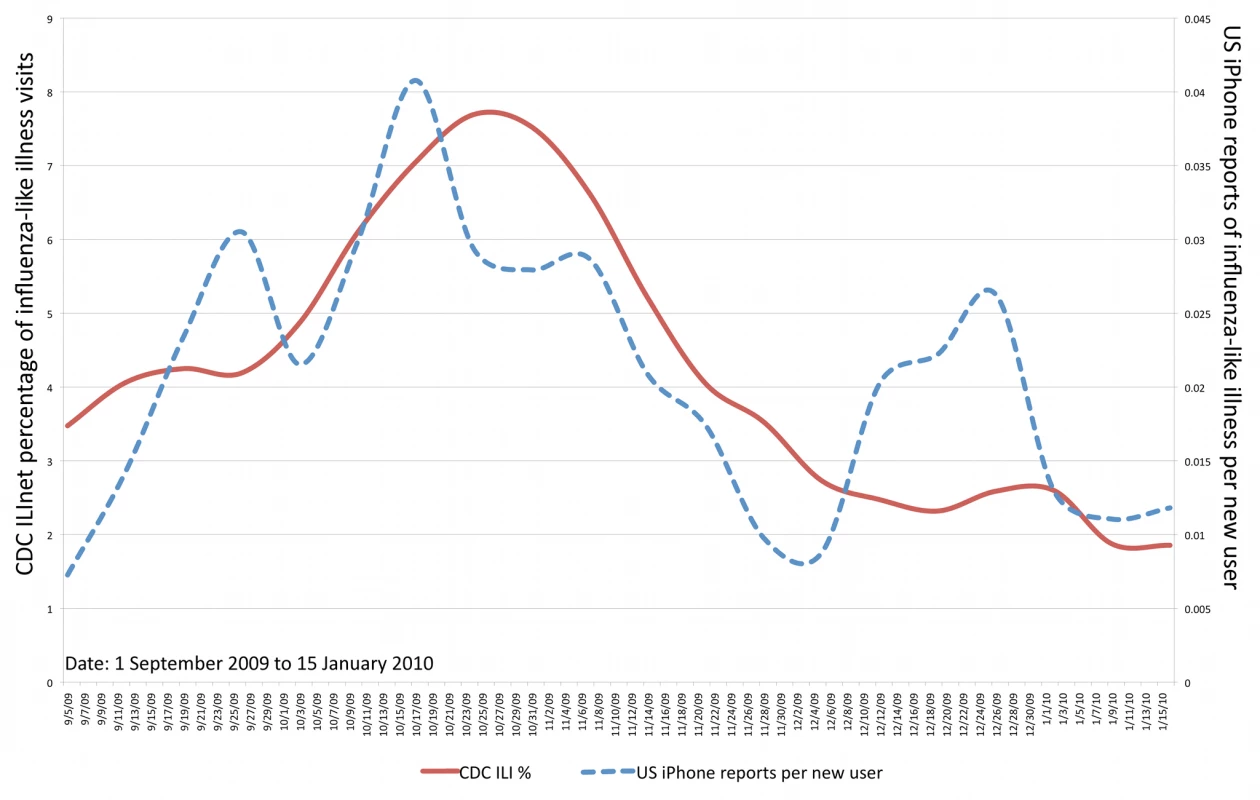

As a second analysis, we aggregated the submissions and compared their fluctuations in volume over time with the variation in Centers for Disease Control and Prevention (CDC) influenza-like illness (ILI) metrics for sentinel clinical sites in the United States . We computed the number of H1N1 iPhone submissions per application download, to mitigate bias from increased application usage driving increased reporting. Although the result is preliminary and not broadly generalizable given the special circumstances of H1N1, our aggregated metric correlated highly with ILI metrics (Pearson's correlation = 0.74, p<0.0001) as shown in Figure 1, suggesting potential use as an additional early indicator for flu activity. Notably, while CDC influenza metrics are generally released at least one week following collection, our metric can be available in near real-time as reports flow into the system.
Limitations of Crowdsourcing
Despite the potential for participatory epidemiology, many challenges remain. Perhaps the most significant concern is the question of how to corroborate or verify submitted information. Public health officials may rightfully have reservations about this type of data: their obligation to respond to individual reports could represent an added burden to their surveillance responsibilities. However, one preliminary way of analyzing the crowd-sourced data is through cross-validation with other sources, as demonstrated in Table 2. In addition, these systems are by nature venues for two-way information exchange. Rather than simply supplying the end-users with reports, many of the projects we highlighted make use of crowds for evaluating the quality of information as well. By publishing submitted information, they allow users to review and assess the data. This idea is being tested via Ushahidi's Swift River project, amongst others. Swift River further makes use of automated algorithms for scoring and filtering information based on the credibility of sources. Collecting contact information from the person reporting enables system owners to contact the submitter to request additional details if a report raises particular interest. With an effective review and filtering process, we can help avoid information overload.
A related concern with this type of approach is the risk of spreading rumors or a malicious actor gaming the system with false information. To address these concerns many systems require messages to be reviewed by a moderator (either before or after public dissemination), label reports clearly as community contributions, and enable users to provide feedback and even corroboration of submissions, as has proven successful with Wikipedia. Further, because smartphone applications include capability to register GPS coordinates, verification of the proximity of the reporter to the location in question can also be used as a validation tool.
Overall, the “crowdsourcing” approach serves primarily as a complementary new tool, rather than a replacement for either traditional population monitoring efforts or existing new-generation Internet systems.
Although the data as yet support only preliminary conclusions, we have already seen concrete benefits of community participation in a range of public health settings from pandemics to natural disasters. Promoting technology adoption, verifying reported information, and aligning user incentives remain important challenges for all the systems.
As the processes for collecting and analyzing information from participatory systems become more refined, along with increasing penetration of sophisticated tools such as cellular phones as used in the systems described here, we will see even greater opportunities to gather more detailed structured data for public health reporting. Although some mobile applications rely on expensive smartphones not yet widely available in many resource-poor areas, we believe these phones will rapidly drop in price and see corresponding increases in adoption, as seen with existing mobile technologies. In the future, information from these systems can augment existing public health practice, integrate with clinical tools, and help bring public health services and information to underserved populations. Finally, these early efforts represent an important step in not only improving system outputs but also engaging the public as participants in the public health process.
2008 Medicine 2.0: Social networking, collaboration, participation, apomediation, and openness. J Med Internet Res 10 e22
2009 The power of social networking in medicine. Nat Biotechnol 27 888 890
2008 How the Social Web Supports patient experimentation with a new therapy: The demand for patient-controlled and patient-centered informatics. AMIA Annu Symp Proc 217 221
2010 The missing voice of patients in drug-safety reporting. N Engl J Med 362 865 869
2007 Participatory epidemiology in disease surveillance and research. Rev Sci Tech 26 537 549
2006 The rise of crowdsourcing. Wired Magazine. Available: http://www.wired.com/wired/archive/14.06/crowds_pr.html. Accessed 17 November 2010
2009 Infodemiology and infoveillance: framework for an emerging set of public health informatics methods to analyze search, communication and publication behavior on the Internet. J Med Internet Res 11 e11
2010 An agenda for action on global e-health. Health Aff (Millwood) 29 233 236
2010 mHealth: the next generation of telemedicine? Telemed J E Health 16 23 25
2008 Surveillance Sans Frontieres: Internet-based emerging infectious disease intelligence and the HealthMap project. PLoS Med 5 e151 doi:10.1371/journal.pmed.0050151
2008 HealthMap: global infectious disease monitoring through automated classification and visualization of Internet media reports. J Am Med Inform Assoc 15 150 157
14. Ushahidi 2010 Haiti: The 2010 earthquake in Haiti. Available: http://haiti.ushahidi.com. Accessed 21 May 2010
2010 Haiti: Taking Stock of How We Are Doing. Ushahidi Blog. Available: http://blogushahidicom/indexphp/2010/02/06/ushahidi-how-we-are-doing/ Accessed 15 September 2010
16. InSTEDD 2010 GeoChat. Available: http://www.instedd.org/geochat. Accessed 21 May 2010
2009 ICT Developments in Mobile Technology for Global Public Health: InSTEDD Collaboration Tools. Mekong Basin Disease Surveillance (MBDS), Information Communication and Technology Forum. Mukdahan, Thailand. Available: http://www.slideshare.net/kasshout/ict-developments-in-mobile-technology-for-global-public-health-instedd-collaboration-tools. Accessed 3 November 2010
2010 Information technology and global surveillance of cases of 2009 H1N1 influenza. N Engl J Med 362 1731 1735
2008 Revealing the spatial distribution of a disease while preserving privacy. Proc Natl Acad Sci U S A 105 17608 17613
2007 State-of-the-art anonymization of medical records using an iterative machine learning framework. J Am Med Inform Assoc 14 574 580
de la TorreF
2008 Model-Based de-identification of facial images. AMIA Annu Symp Proc 262
22. Centers for Disease Control and Prevention 2009 US Outpatient Influenza-like Illness Surveillance Network (ILINet). Available: http://wwwcdcgov/flu/weekly/fluactivityhtm#OIS. Accessed 3 March 2010
