Bypass of 8-oxodG

8-oxoG is one of the most common and mutagenic DNA base lesions caused by oxidative damage. However, it has not been possible to study the replication of a known 8-oxoG base in vivo in order to determine the accuracy of its replication, the influence of various components on that accuracy, and the extent to which an 8-oxoG might present a barrier to replication. We have been able to place a single 8-oxoG into the Saccharomyces cerevisiae chromosome in a defined location using single-strand oligonucleotide transformation and to study its replication in a fully normal chromosome context. During replication, 8-oxoG is recognized as a lesion and triggers a switch to translesion synthesis by Pol η, which replicates 8-oxoG with an accuracy (insertion of a C opposite the 8-oxoG) of approximately 94%. In the absence of Pol η, template switching to the newly synthesized sister chromatid is observed at least one third of the time; replication of the 8-oxoG in the absence of Pol η is less than 40% accurate. The mismatch repair (MMR) system plays an important role in 8-oxoG replication. Template switching is blocked by MMR and replication accuracy even in the absence of Pol η is approximately 95% when MMR is active. These findings indicate that in light of the overlapping mechanisms by which errors in 8-oxoG replication can be avoided in the cell, the mutagenic threat of 8-oxoG is due more to its abundance than the effect of a single lesion. In addition, the methods used here should be applicable to the study of any lesion that can be stably incorporated into synthetic oligonucleotides.

Published in the journal: . PLoS Genet 9(8): e32767. doi:10.1371/journal.pgen.1003682
Category: Research Article
doi: 10.1371/journal.pgen.1003682


8-oxoG is one of the most common and mutagenic DNA base lesions caused by oxidative damage. However, it has not been possible to study the replication of a known 8-oxoG base in vivo in order to determine the accuracy of its replication, the influence of various components on that accuracy, and the extent to which an 8-oxoG might present a barrier to replication. We have been able to place a single 8-oxoG into the Saccharomyces cerevisiae chromosome in a defined location using single-strand oligonucleotide transformation and to study its replication in a fully normal chromosome context. During replication, 8-oxoG is recognized as a lesion and triggers a switch to translesion synthesis by Pol η, which replicates 8-oxoG with an accuracy (insertion of a C opposite the 8-oxoG) of approximately 94%. In the absence of Pol η, template switching to the newly synthesized sister chromatid is observed at least one third of the time; replication of the 8-oxoG in the absence of Pol η is less than 40% accurate. The mismatch repair (MMR) system plays an important role in 8-oxoG replication. Template switching is blocked by MMR and replication accuracy even in the absence of Pol η is approximately 95% when MMR is active. These findings indicate that in light of the overlapping mechanisms by which errors in 8-oxoG replication can be avoided in the cell, the mutagenic threat of 8-oxoG is due more to its abundance than the effect of a single lesion. In addition, the methods used here should be applicable to the study of any lesion that can be stably incorporated into synthetic oligonucleotides.


All DNA bases are subject to a variety of different types of damage due to reactive oxygen species (ROS) [1]. Among the most common and most mutagenic is 7,8-dihydro-8-oxoguanine, or 8-oxoG, which is mutagenic because of its tendency to pair with adenine and thus create GC to TA transversion mutations [2], [3]. In the yeast Saccharomyces cerevisiae there are several mechanisms either to repair 8-oxoG lesions or to prevent 8-oxoG-induced mutations. 8-oxoG lesions opposite C, which would be formed by oxidative damage of double-stranded DNA, are removed by the glycosylase Ogg1 [4], [5], which has little if any activity on 8-oxoG paired with other bases [6]. Mismatch repair (MMR) plays an important role in preventing mutations due to oxidative damage [7], and it has been shown that yeast MutSα, consisting of the Msh2 and Msh6 subunits, recognizes A replicated opposite an 8-oxoG lesion and thereby prevents mutations [8]. Thus in S. cerevisiae, MMR appears to replace the function of MutY, which is absent [8], [9]. MutSβ, consisting of the Msh2 and Msh3 subunits appears to play no role in 8-oxoG repair [8].

For 8-oxoG lesions that are not removed prior to replication, translesion DNA synthesis (TLS) is importantly involved in bypass, with Pol η playing the major role in yeast. A variety of biochemical experiments using oligonucleotide templates with an 8-oxoG lesion have demonstrated that Pol η replicates through an 8-oxoG lesion, usually inserting a C [10][12]. This accuracy is explained by structural studies that show Pol η with a template containing an 8-oxoG lesion can hold the lesion in an anti conformation, permitting a C to be inserted [13]. In contrast, Pol δ is ten-fold less accurate and efficient in bypassing 8-oxoG [14] and Pol ε does not bypass 8-oxoG at normal dNTP concentrations, but does, inaccurately, at damage-induced levels of dNTPs [15]. Genetic studies are more complicated because the existence of an 8-oxoG lesion can be inferred only by its mutation signature, generally in an ogg1 background that greatly increases the amount of 8-oxoG in DNA. Such studies were used to show the involvement of MMR in preventing mutations due to 8-oxoG [8], the role of Pol η in accurate replication of 8-oxoG [11], [16], and the lack of a significant role for Pol ζ [16], [17]. The interplay of TLS and MMR is not completely clear. It was proposed that MMR was responsible for recruiting Pol η for bypass [18] but a detailed study of 8-oxoG bypass and repair concluded that Pol η acted independently of MMR [19]. It appears that monoubiquitination of PCNA is necessary for most TLS and in yeast this step is carried out by the Rad6-Rad18 heterodimer [20], [21]. Genetic studies implicate RAD6 and RAD18 as well as RAD30 (the gene encoding Pol η) but not REV3 (the gene encoding the catalytic subunit of Pol ζ) in 8-oxoG tolerance [16].

Most TLS is assumed to occur at the replication fork [20], [21], although it can occur after S phase [22]. Furthermore, as there appear to be different replicative polymerases on the leading and lagging strands of replication [23], one might expect 8-oxoG tolerance could exhibit strand differences. There are only a limited number of such studies. Using a reversion analysis of a URA3 mutation, it was found that 8-oxoG was preferentially repaired on the lagging strand of replication [24]; most of the differential repair was ascribed to the preferential activity of MMR on the lagging strand [25]. Using a mutation analysis of ogg1-dependent mutations in a SUP4-o reporter assay, the lagging strand bias of MutSα was observed, as well as a lagging strand bias for accurate Pol η bypass [19].

It is not clear what effect an 8-oxoG lesion has on replication. Some work has suggested that an 8-oxoG lesion has no effect on replication [10], [18], whereas a stall site was observed in vitro at a nucleotide prior to an 8-oxoG lesion with Pol δ but not Pol η [11]. An in vivo study inferred replication stalling or blockage from a mutational analysis [19]. Lesions that block or stall replication forks appear to be tolerated, especially in yeast, by homologous recombination [26]. Recent interest has focused on tolerance mechanisms by template switching in which a blocked 3′ end invades the replicating sister strand, either by a fork regression or strand invasion [26]. Such mechanisms of template switching appear to be dependent on polyubiquitination of PCNA by a complex of Ubc13-Mms2-Rad5 [20]. Because the substrate of Ubc13-Mms2-Rad5 is PCNA monoubiquitinated by Rad6-Rad18, template switching would also be expected to be dependent on Rad6 and Rad18 [20]. In addition to its role in polyubiquitination, the helicase function of Rad5 may also be important in template switching [27], [28].

Rather than using an ogg1 mutant background, a more direct method of analyzing 8-oxoG bypass in vivo would be to introduce DNA containing a defined lesion directly into cells. Plasmids containing a single-strand gap with an 8-oxoG or 8-oxoG in duplex DNA have been introduced into E. coli and mammalian cells [29][32] and a plasmid treated with methylene blue to induce oxidative damage was introduced into yeast for analysis [33]. The problem with the use of plasmids for analysis, in addition to the difficulty of substrate construction, is that the mechanism of replication may differ from that within the chromosome and various forms of recombinational bypass may also differ. Another approach would be to transform cells with single-stranded oligonucleotides (oligos) containing an 8-oxoG lesion. Transformation of yeast with oligos was first performed in Fred Sherman's laboratory [34], [35] and the method has subsequently been used to study various lesions carried into yeast by oligos [36][41]. However, in most cases the lesion itself was responsible for generating a phenotype and with one exception [36] the mechanism of transformation with oligos was not fully understood.

In order to study 8-oxoG bypass, we wanted to introduce the 8-oxoG on an oligo that would create a selectable phenotype that would be independent of the presence of the 8-oxoG lesion. Such an experimental design allows us to study both replication across the 8-oxoG and bypass of the 8-oxoG by template switching outside of a context of overall increased oxidative damage in the cell. As detailed below, we find evidence that the 8-oxoG lesion does stall replication; that only Pol η is able to replicate 8-oxoG accurately; that template switching is invoked frequently in the absence of Pol η; and that MMR strongly influences the outcome of 8-oxoG replication.


We sought a system in which a damaged base could be placed into the chromosome independent of an oligo-induced reversion event and so needed a low spontaneous reversion rate coupled with a tight selection. We turned to the set of trp5 point mutations we previously constructed [42]. These strains contain a mutation at either nucleotide position 148 or 149 and can only be reverted to the wild type phenotype by restoring the original TRP5 sequence [42]. The plan was therefore to revert a mutant TRP5 gene with an oligonucleotide containing the wild-type base along with a damaged base at a different location in the oligo. A potential problem was that the region surrounding the mutant base is highly conserved, constraining the location of any damaged base. We therefore created the mutant trp5-G148Cm gene (Figure 1) [43]. Because this mutant trp5-G148Cm gene is placed close to a dependable origin of replication, and is present in both orientations relative to the origin, we know which strand is replicated as leading and which as lagging and can reverse the replication strands by using a strain of opposite TRP5 orientation [42]. In order to use oligos to incorporate a segment of DNA, it was necessary to know the frequency of co-incorporation of nucleotides in a given oligo. Using oligos with markers spread throughout the length of the oligo (Oligo N, Figure 1), we determined that for an oligo of 40 nt in length, a central core of 10–15 nt was incorporated with a greater than 90% frequency [43]. Those results suggested that it was feasible to use oligos of that length for our experiments.

Sequences of <i>TRP5</i> mutant regions and oligonucleotides used for reversion analysis.

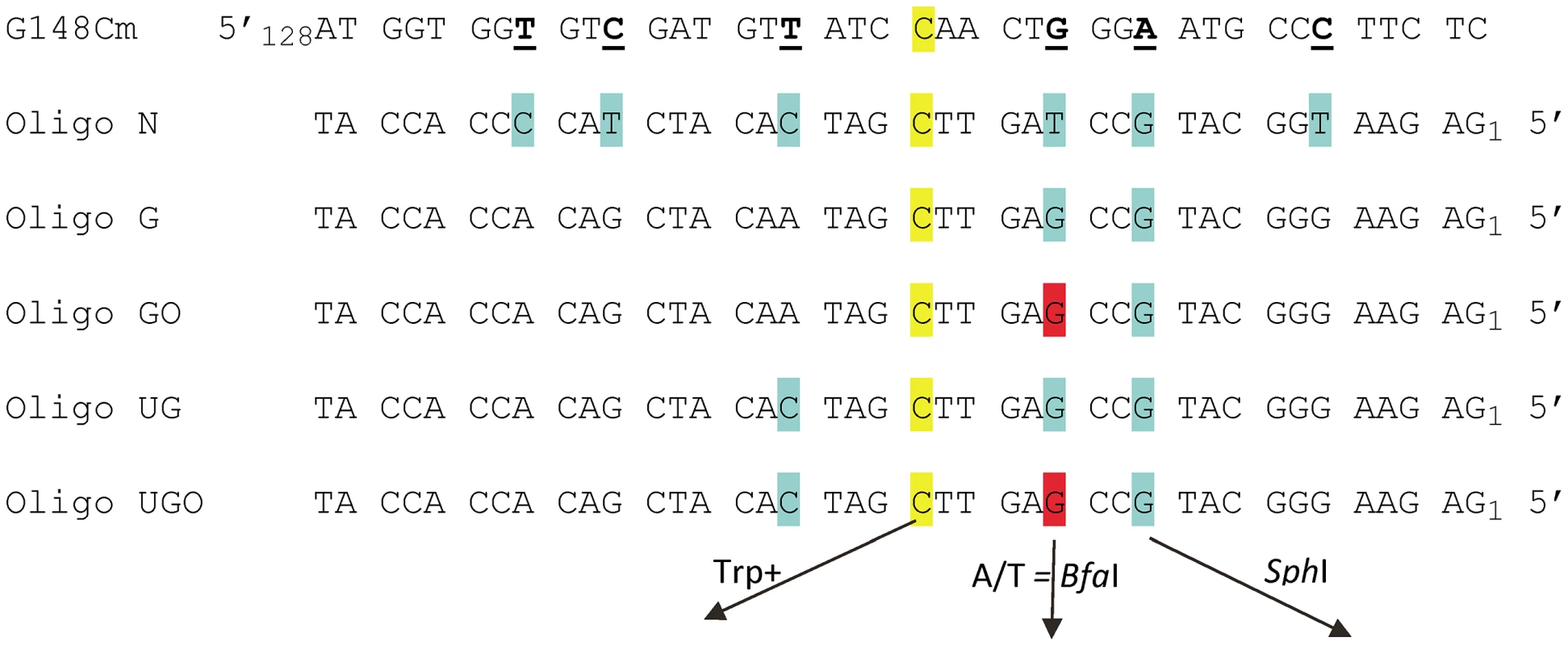

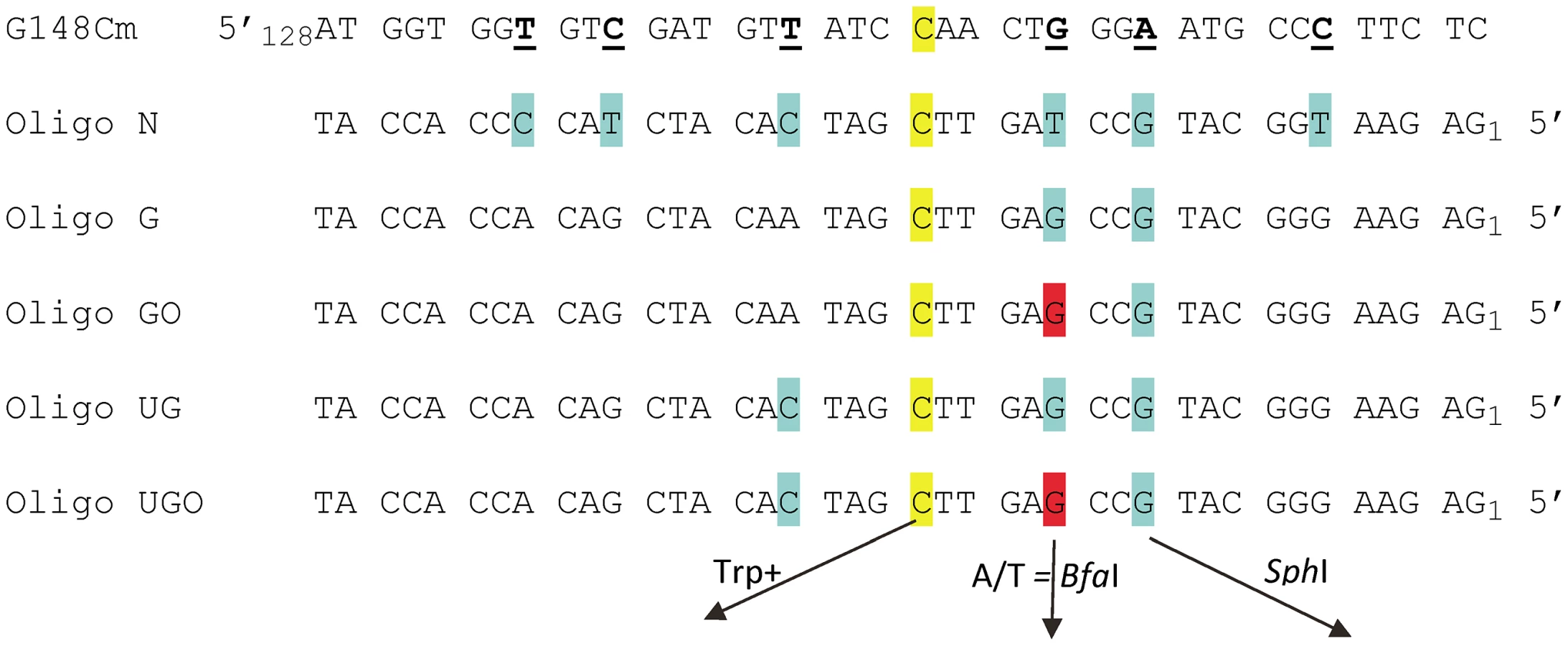

Fig. 1. Sequences of TRP5 mutant regions and oligonucleotides used for reversion analysis.
The trp5-G148Cm mutant contains several changes designed to create additional completely degenerate third codon positions, with those of interest underlined; the sequence shown here begins at nt 128. The C at position 148 that must change to G in order to restore a Trp+ phenotype is highlighted in yellow. Oligo N creates 7 mismatches (highlighted in yellow and blue) upon annealing with the G148Cm sequence; oligos are numbered from the 5′ end. Oligo G and UG create a subset of those mismatches as indicated. Oligos GO and UGO are identical to Oligos G and UG except that the base highlighted in red is an 8-oxoG. If A is inserted opposite the 8-oxoG during replication, a novel BfaI restriction site is created; similarly, the G highlighted in blue, if incorporated, creates a novel SphI restriction site.

An assay system for 8-oxodG bypass

We had initially hoped to investigate damaged base bypass by transforming with an oligo which contained one normal base to revert the Trp- phenotype and another damaged base placed in a silent position where any base incorporation would be tolerated. However, our prior experiments [43] as well as a number of preliminary experiments indicated that we needed a method to mark incorporation of bases on both sides of the damaged base in order to be sure that we were observing bypass, and not partial incorporation of the relevant region of the oligo. These goals were accomplished by transforming with Oligos G and GO (Figure 1). The C at position 20, highlighted in yellow, creates a Trp+ phenotype upon incorporation; the G at position 12, highlighted in blue, if incorporated, creates a new SphI site. The G at position 15 is an 8-oxodG in Oligo GO and is highlighted in red, forming an 8-oxoG-G mismatch with the trp5-G148Cm sequence. Oligo G is identical, with a G instead of an 8-oxodG at position 15. This mismatch was deliberately chosen, as one of the main glycosylases processing 8-oxodG, Ogg1, should have little or no activity on an 8-oxodG-G mismatch [44], [45], and the efficiency of its removal by another glycosylase, Ntg1, is low, if it exists [46]. In addition, 8-oxodG, when bypassed, is very unlikely to template a G, so if the original sequence at that position is maintained, that would be strong evidence either of removal of the 8-oxodG before replication, or a failure to bypass the 8-oxodG. The expectation for 8-oxodG bypass is that either a C or A is incorporated. If an A is incorporated opposite the 8-oxodG, a BfaI site is created, thus allowing a simple restriction digestion to indicate a mutagenic bypass of the 8-oxodG. In summary, at the site in question, a G on the coding strand indicates that 8-oxoG was either not used as a template for replication or was removed before replication, a C indicates that 8-oxoG was bypassed accurately, and an A indicates inaccurate replication of 8-oxoG.

The overall design of the assay system and its expected results are illustrated in Figure 2A. Incorporation of the oligo can be selected by the Trp+ phenotype, and given that only 7 nt separate the base creating the Trp+ phenotype and the base creating an SphI site, we initially expected that all Trp+ cells should contain a new SphI site. What we found as analysis proceeded is that a fraction of oligos, even those containing all normal bases, exhibited “partial removal” as indicated in Figure 2A: in the presence of MMR, a substantial fraction of cells (as much as 30% or more) transformed by Oligo G (containing only normal bases) were Trp+ but did not contain an SphI site [43]. Those results were explained by a failure of MMR to recognize the C-C mismatch created by the oligo during MMR-directed excision from the 5′ end of the oligo [43]. Such results were seen only in the presence of MMR and with Oligo G and Oligo GO, but not with Oligo UG or UGO, as will be detailed below. It is in the second round in which the oligo sequence, now fully incorporated into the genome, is replicated for the first time. In Trp+ cells that were transformed by Oligo GO and contain the SphI site, DNA synthesis must have used the 8-oxoG for a template, and the base inserted can be subsequently analyzed. In the absence of MMR, all Trp+ cells would be expected to contain an SphI site, and that is true for cells transformed by Oligo G but not for all strains transformed by Oligo GO. The failure of cells transformed by Oligo GO to contain an SphI site could be explained by the process of template switching, in which the replication fork switches to use the newly replicated strand of the sister chromatid [26].

Models for incorporation of oligo GO and UGO.

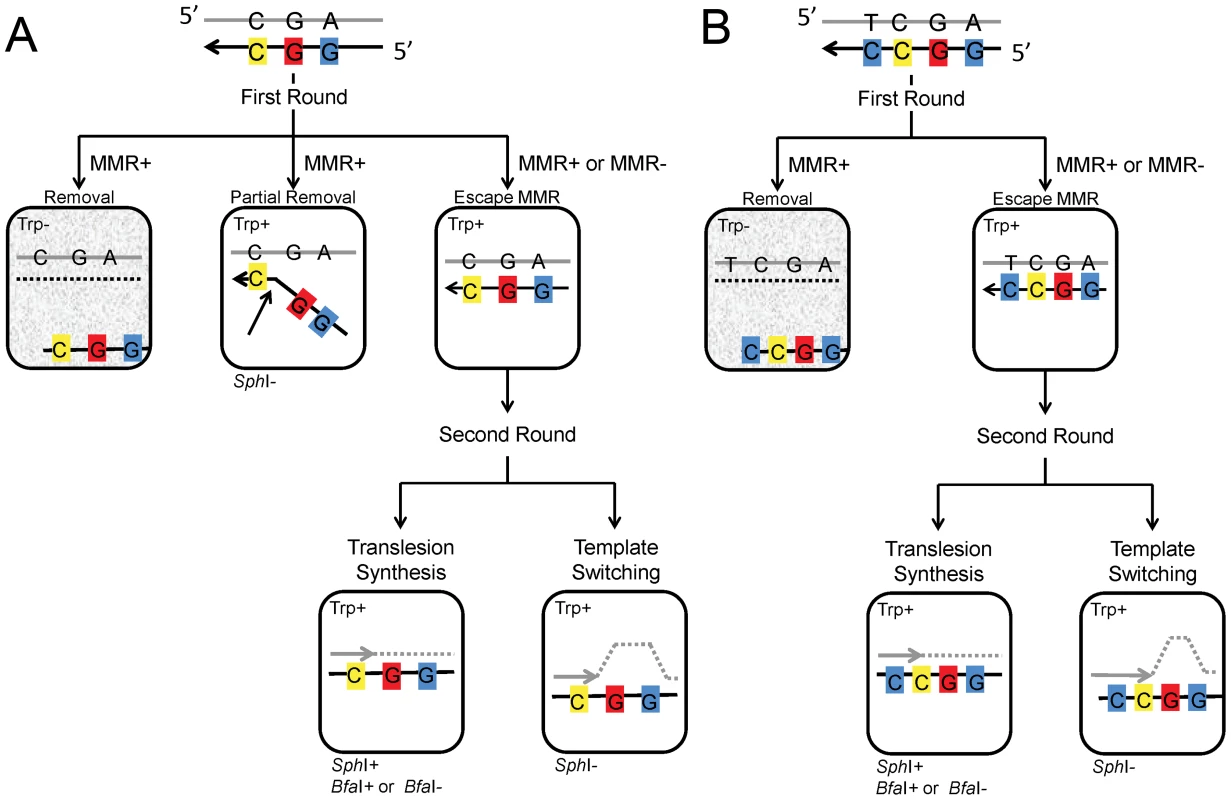

Fig. 2. Models for incorporation of oligo GO and UGO.
(A) Incorporation of Oligo GO creates three mismatches; if the oligo is not removed before the second round, replication of the C, indicated in yellow, would result in a Trp+ phenotype, replication of the 8-oxoG, indicated in red, would create a BfaI site if an A were incorporated, and replication of the G indicated in blue would create an SphI site. In the first round, usually the entire portion of the oligo containing the marked bases remains or is removed by MMR. However, when MMR is present, the segment of the oligo containing the 5′-two mismatches can be removed, but the segment creating the Trp+ phenotype can be left, presumably due to failure of MMR to recognized the C-C mismatch (see text). If the marked segment of Oligo GO persists to the second round of replication, translesion synthesis creates an SphI site and a BfaI site if the 8-oxoG is bypassed with an A. If the 8-oxoG induces template switching, no SphI site is created. (B) Incorporation of Oligo UGO creates an additional mismatch with the C indicated in blue, 3′ of the C-C mismatch. Due to this additional mismatch, in the first round, either the entire oligo remains, or is removed. The results of the second round of replication are identical to that of Oligo GO in (A). Cells with a gray background are Trp- and thus do not survive selection.

8-oxodG induces template switching in the absence of Pol η

Strains with a variety of different genotypes were transformed by Oligo G and Oligo GO and assayed for the presence of an SphI site. The results for strains of the R orientation are shown in Figure 3A. Results for strains of the F orientation are shown in Figure S1 and the numbers of colonies analyzed for each strain are given in Table S1. Because of the problem of partial oligo removal discussed above, strains with an active MMR cannot be analyzed for template switching (i.e. Trp+ transformants lacking an SphI site) with Oligo GO. In MMR-defective strains, with the exception of rad30 msh6 strains lacking both MMR and Pol η, the SphI site is created in almost all Oligo GO transformants. If the lack of the SphI site in that background is due to template switching, it should be blocked by loss of Rad5, Mms2, or Rad18 [20], [27], [47], [48]. That is seen to be true, as rad5 rad30 msh6, mms2 rad30 msh6, and rad18 rad30 msh6 strains show minimal loss of the SphI site.

Template switching induced by 8-oxoG.

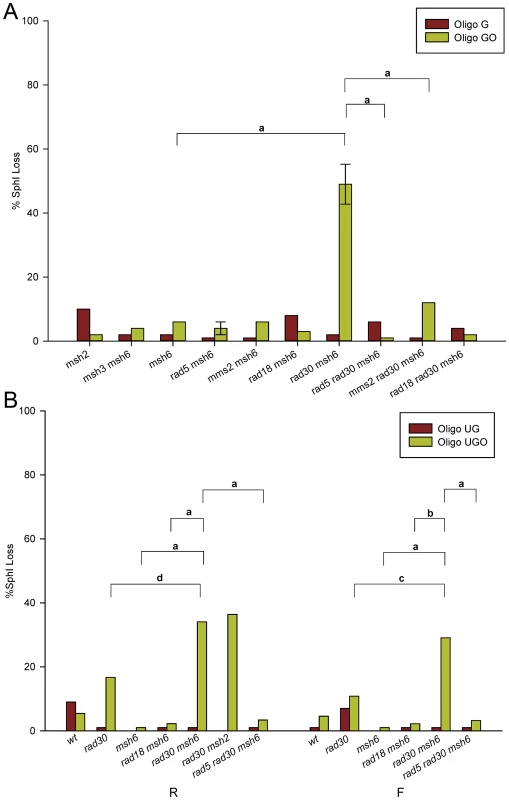

Fig. 3. Template switching induced by 8-oxoG.
Template switching was determined as those transformants that did not contain the SphI restriction site introduced by the oligo. More than 40 Trp+ revertants were assayed for the presence of an SphI site in each strain of the indicated genotype. Error bars represent standard deviation of the mean for cases in which three or more independent experiments were done. The 8-oxoG lesion is replicated in the second round; replication would be on the leading strand in R strains. Horizontal bars indicate selected genotype comparisons, with the letter above the bars indicating the probability of the null hypothesis that the results of transformation with Oligo GO or Oligo UGO in the two strains are the same. For a: P<0.0001; b: P = 0.0002; c: P = 0.004; d: P = 0.02. (A) Strains in the R orientation transformed with Oligo G or Oligo GO. (B) Experiments as in (A) using Oligo UG or Oligo UGO in strains of both orientations.

Our previous results had suggested that placing a base creating an additional mismatch 3′ of the C-C mismatch in Oligo G would prevent the partial removal of the oligo illustrated in Figure 2A [43]. Therefore, we used Oligo UG and Oligo UGO (Figure 1) to repeat a subset of the experiments shown in Figures 3A and S1. The results assaying presence of the SphI site in both R and F strains are presented in Figure 3B. As observed with Oligo GO, Oligo UGO displays template switching in the absence of both MMR and Pol η (Figure 3B). Loss of the SphI site is suppressed in rad5 rad30 msh6 strains. Oligo UG transformants in the presence of MMR showed little loss of the SphI site (Figure 3B). Oligo UGO transformants in rad30 strains also demonstrated little SphI site loss, and were significantly reduced in template switching compared to rad30 msh6 strains (Figure 3B). Therefore we can conclude that most template switching is suppressed by MMR. It appears in Figure 3B that the level of SphI site loss in rad30 Oligo UGO transformants is somewhat elevated compared to wild-type strains. The difference is not statistically significant in strains with the F orientation, and is only marginally significant (P = 0.03) in the R orientation.

Accuracy of 8-oxoG bypass depends on MMR and Pol η

8-oxodG is considered to be extremely mutagenic due to the frequency of misreplication, with an A inserted opposite the 8-oxodG. In order to measure the bypass accuracy of the introduced 8-oxodG, we selected only those revertants that were both Trp+ and contained an SphI site, as all of those revertants should have incorporated the intervening 8-oxodG into the genome. As illustrated in Figure 2, the 8-oxodG in oligos GO and UGO was placed opposite a G in the genome; thus removal of the 8-oxoG lesion would have resulted in retention of the original sequence at that point. Replication of the 8-oxoG lesion would be expected to yield only a C for accurate bypass or an A for inaccurate bypass, both leading to a change of sequence at that position. The replication accuracy could have been directly determined by sequencing each one of the revertants. However, as indicated in Figure 1, inaccurate replication with an A creates a novel BfaI site, allowing a direct measurement of accuracy without sequencing. In order to assess the validity of this approach, we sequenced 129 Trp+ revertants that contained the introduced SphI site but lacked the BfaI restriction site and found 126 C, 1 T and 2 G at that position, thus confirming the utility of the restriction site assay and the assumption that a C would be found in such cases; 22 out of 22 sequences that contained the BfaI site had an A as expected. The result of this assay in a variety of genetic backgrounds using Oligo GO is shown for strains of R orientation in Figure 4A and for the F orientation in Figure S2. All numbers are given in Table S1. To our surprise, not only was replication extremely accurate in wild-type cells, it was also highly accurate in the absence of MMR, averaging 94% in MMR-defective strains of both orientations compared to 97% in wild-type strains; the difference is not statistically significant. The source of the accurate replication was clearly Pol η, as in MMR-deficient strains in the absence of Pol η, the accuracy dropped to 36% in R orientation and 44% in F orientation (Figures 4A and S2; Table S1). The resulting 8-oxoG-A mismatch was efficiently recognized and corrected by MMR, as the replication accuracy in rad30 strains was 92% in R and 93% in F (Figures 4A and S2; Table S1), neither of which was significantly different from that measured in wild type or MMR-defective strains.

Accuracy of 8-oxoG replication.

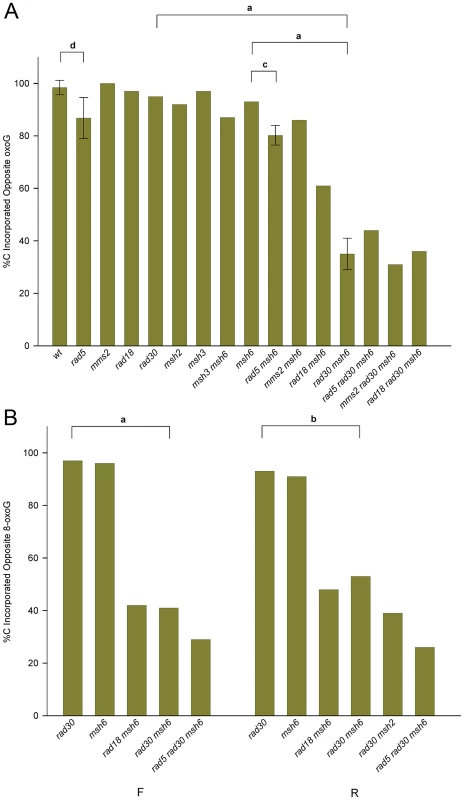

Fig. 4. Accuracy of 8-oxoG replication.
Trp+ revertants containing an SphI site were assayed for the presence of a BfaI site resulting from insertion of an A opposite 8-oxoG in strains of the indicated genotype transformed with an 8-oxoG-containing oligo; those transformants lacking the BfaI site had a C inserted opposite the 8-oxoG. In most cases, more than 40 SphI containing revertants were assayed. Note that the 8-oxoG lesion is replicated in the second round; thus for example replication is on the leading strand in R strains. The error bars and horizontal bars are as in Figure 3. For a: P<0.0001; b: P = 0.0005; c: P = 0.01; d: P = 0.04. (A) Strains in the R orientation transformed with Oligo GO. (B) Experiments as in (A) using Oligo UGO instead of Oligo GO in strains of both orientations.

In order to confirm our results with Oligo GO, we conducted a reduced set of experiments with Oligo UGO (Figure 4B; Table S1). The accuracies measured in either rad30 or msh6 strains were not significantly different from each other. The double mutant combinations of msh6 rad30 were significantly lower, at 44% in F and 36% in R orientation.

The graphs of accuracy in Figures 4 and S2 demonstrate that there are basically two categories of strains: those strains with deficient Pol η and MMR, and those that have at least one of the two pathways intact (as discussed above, Rad18 is thought to be necessary for Pol η function, which is consistent with our results). In general within each group there is no statistically significant difference among strains, and there is a significant difference between strains in the two groups. It appears that rad5 strains could be an exception. In both the R (Figure 4A) and F (Figure S2) orientations, accuracy in rad5 strains is lower than in wild-type, and accuracy in rad5 msh6 strains is lower than in msh6 strains. The P values are marginal, ranging from 0.01 to 0.04, but the pattern is consistent in the four comparisons. Another question is whether there are differences between the accuracies observed in the two orientations of the TRP5 gene. The measured accuracy in R strains is lower than in F strains for Oligo GO in msh2, msh6, msh3 msh6, and for Oligo UGO in msh6 strains. However, only by combining the results in msh2, msh3, and msh3 msh6 strains for Oligo GO does the difference approach statistical significance (P = 0.05). Because the 8-oxoG is replicated in the second round, replication of the 8-oxoG would be on the leading strand in strains with the R orientation.


In this work, we have developed a method of analyzing bypass of 8-oxoG in vivo by using oligos to place a single 8-oxoG in a defined location in the chromosome. Once incorporated into the chromosome, the 8-oxoG lesion is not replicated until a second cell cycle, such that the measured replication is of a lesion fully integrated into the chromosome. The replication of 8-oxoG was surprisingly accurate and that accuracy was due to the synergistic action of MMR and Pol η. Although the general expectation was that 8-oxoG would not affect replication, 8-oxoG-induced template switching was observed, but for the most part only in the absence of both MMR and Pol η.

The accuracy of 8-oxoG bypass

We know that Trp+ revertants containing a new SphI site must have resulted from replication past the 8-oxoG and can therefore measure the accuracy of that bypass. 8-oxoG is considered to be a very mutagenic lesion; therefore it was somewhat of a surprise that in wild-type cells it was replicated quite accurately. The accuracy of replication was 98% in F strains (replication on the lagging strand) and 97% in R strains. Even more surprising was the accuracy in MMR-deficient cells; pooling data from all genotypes lacking MutSα (msh2, msh6, msh3 msh6) gave 96% accuracy in F strains and 91% in R. As noted above, this difference is of marginal statistical significance (P = 0.05), but it is in agreement with experiments that showed a lagging strand bias for Pol η [19]. One important distinction between our measurement and other in vivo measurements is that our strains contain one 8-oxoG lesion above the background level of such lesions, whereas most other measurements have been made in Ogg1-deficient strains in which one would expect large numbers of additional 8-oxoG lesions. Given that the amount of MutSα in cells is low (one estimate is 1230 molecules of Msh2p and 5330 molecules of Msh6p per cell [49]), elevated levels of 8-oxoG in the cell could potentially titrate out MutSα. The source of accurate replication of 8-oxoG in MutSα-deficient strains is clearly Pol η, as in cells deleted for Pol η, 8-oxoG is replicated accurately only 40% of the time (Figure 4 and Table S1). Pol η is also in relatively low abundance in yeast (an estimated 1860 molecules per cell [49]) again suggesting a potentially misleading picture of 8-oxoG replication in cells with elevated levels of 8-oxoG. Thus our measurements indicate the levels of accuracy to be expected for repair of spontaneous levels of oxidative damage in normal conditions, but might not apply for cells under oxidative stress or with reduced levels of MMR or Pol η. Given that the accuracy of bypass in the absence of MMR was due to Pol η, our results support the independence of MMR and Pol η in maintenance of accuracy, as previously observed [19], and are not consistent with a model in which MMR is required to recruit Pol η [18].

Previous in vitro measurements had determined that yeast Pol η could replicate an 8-oxoG much more accurately than could Pol δ [11], [14], but it is impossible to extrapolate from such in vitro experiments using single DNA polymerases to an in vivo situation in a chromosomal context with multiple DNA polymerases available. The low accuracy observed in MMR- and Pol η-defective strains (40%) suggests that no other DNA polymerase in the cell is able to replicate 8-oxoG accurately. Therefore the high accuracy of 8-oxoG replication observed in MMR-defective strains indicates that most of the 8-oxoG replication must be due to Pol η. (Suppose Pol η is used for 75% of 8-oxoG bypass, and other polymerases with only 40% accuracy are used the rest of the time; the overall accuracy of bypass in the absence of MMR would be approximately 85%, considerably lower than what we observe.) In vitro experiments found a strong stall site with Pol δ just before replication of an 8-oxoG [11]; such a stall is likely the signal responsible on either replication strand for switching to synthesis by Pol η or switching templates.

Particularly because of the different abilities of Pol δ and Pol ε to bypass an 8-oxoG in vitro [14], [15], one might have expected a difference in replication fidelity due to replication of leading and lagging strands by different DNA polymerases [23], although we see little evidence for that here. The similarity in accuracy of leading and lagging strands in the absence of Pol η is surprising, particularly given the expected difference in the ability of Pol δ and Pol ε to bypass 8-oxoG. Our data suggest that the 8-oxoG lesion causes a stall; it has been hypothesized that a lesion on the leading strand could induce a switch to continued synthesis on the leading strand by Pol δ [50] and so it is possible that the synthesis observed on either strand across 8-oxoG in the absence of Pol η could be due primarily to Pol δ.

8-oxoG-induced template switching

The design of these experiments made it possible to observe template switching, in which the replicating DNA polymerase uses DNA from the replicating sister chromatid as a source of template [26]. In strains deficient in MMR, template switching was observed only in strains lacking Pol η (Rad30), and in those cases, occurred in about half of the replication events on both the leading and lagging strands of replication (Figures 3 and S1). As expected for template switching, these events were not observed in strains lacking Rad5, Mms2, or Rad18.

Template switching was measured as Trp+ revertants that did not contain the SphI site introduced by the oligo. As explained above, experiments with Oligo GO could not examine possible template switching in the presence of MMR because of the loss of part of the oligo during transformation in some Trp+ colonies (Figure 2A). Such partial loss was not observed with Oligo UGO, and those experiments showed that MMR suppresses template switching, as such events were significantly lower in rad30 strains compared to rad30 msh6 strains in both orientations (Figure 3B). It is possible that some template switching events were missed in these assays, as only 4 nucleotides separate the 8-oxoG from the C needed to produce Trp+ cells. If in template switching, there is loss of more than 4 bases from the 3′ invading end, the resulting strain would be Trp- and therefore not observed.

Template switching could occur via fork regression on the leading strand [26], but on the lagging strand must occur via a mechanism involving homologous recombination [47]. What triggers template switching and how does MMR suppress template switching? A stall by the replicative DNA polymerase in advance of the 8-oxoG is a strong candidate for a template switching signal. As postulated above, as a replicative DNA polymerase encountered an 8-oxoG, it would stall and either induce a switch to Pol η replication or the replicative polymerase would switch templates and bypass the lesion in an error-free manner. In the presence of MMR, presumably the same template switching would occur but when the DNA copied from the sister chromatid was brought back to pair with the template strand, MMR would recognize the 8-oxoG-G mispair and initiate removal of the newly synthesized DNA, thus abolishing the effect of the template switch.

It is evident from Figures 3A and S1 that deletion of either RAD5 or MMS2 blocks template switching. However, deletion of RAD5 in either wild-type or msh6 strains appears to somewhat decrease accuracy in Oligo GO transformants, whereas deletion of MMS2 in the same strains does not (Figures 4A and S2). That result is consistent with a role for Rad5 in addition to template switching [51]. A rad5 strain is more sensitive to UV damage than an mms2 strain [52] and a role for Rad5 was observed in TLS of UV damage independent of Mms2-Ubc13 [53]. Although on many substrates the Rad5-dependent TLS might be mutagenic [54], it would appear from our work that the Rad5-mediated events are accurate in replicating 8-oxoG.

The sequence context of a lesion can affect its fate. The trp5-G148Cm strains we have made could accommodate a lesion at several different positions, and thus somewhat different sequence contexts. Another option would be to place a lesion in a sequence context of choice and integrate it into a strain that would select for the loop integration [36]. The potential difficulty with such methods is that the spontaneous background of such reversion events, particularly in the absence of MMR, is considerably higher than in the trp5-G148Cm strains. The use of oligos to place defined DNA damage at unique places in the chromosome is potentially very informative. With proper markers in the oligos, we have shown that the fate of a defined lesion can be measured in a completely normal chromosome context in a variety of genetic backgrounds.

Materials and Methods

Yeast strains

The trp5-G148Cm mutation was created as described for the other trp5 mutations [42] using delitto perfetto [55] and created the sequence CGATGTTATCCAACTGGGA starting at position 138 of TRP5 with mutated bases underlined. The lys2CT1265GA mutation was similarly created by delitto perfetto. The genotypes of strains used in these experiments are given in Table S2. All gene deletions were created by one-step disruption with PCR generated fragments. In general gene deletions were made from a PCR fragment generated from the collection of yeast gene deletions [56]. The kanMX4 resistance marker was changed to hphMX4 or natMX4 by transformation with a fragment from pAG32 or pAG25, respectively [57]. For the msh6Δ::loxP deletion, the PCR fragment was from a strain in which MSH6 had been disrupted by a loxP-kanMX-loxP fragment that was subsequently excised by Cre expression [58].

Yeast transformation

Transformation was a modification of the method used previously [43], [59]. An overnight culture of a strain was diluted 1∶50 in YPAD [60], incubated with shaking at 30° to an OD600 of 1.3–1.5, washed twice with cold H2O, and once with cold 1 M sorbitol. After the final centrifugation, all solution was removed from the cells and a volume of cold 1 M sorbitol equal to that of the cell pellet added to resuspend the cells. For a typical transformation, 200 pmol of a Trp oligo and 200 pmol of LYS2TCARev40 (used to revert the lys2CT1265GA mutation) was added to 200 µl of this cell suspension in a 2-mm gap electroporation cuvette, and the mixture electroporated at 1.55 kV, 200 Ω, and 25 µF (BTX Harvard Apparatus ECM 630). Immediately after electroporation, the cell suspension was added to a volume of YPAD equal to that of the initial culture, and the cells incubated at 30° with shaking for 2 h. Cells were then centrifuged, washed with H2O, and plated on synthetic dextrose (SD) medium lacking either tryptophan or lysine [60] to select transformants. The number of Lys+ transformants served as a useful guide that a particular transformation experiment had worked, but was not correlated well enough with the number of Trp+ transformants to be used as an internal control (results not shown).

Colony PCR and revertant analysis

Individual Trp+ revertants were picked into 200 µl SD-Trp medium in 96-well deep well plates, grown overnight at 30° with shaking, a small aliquot of each transferred to fresh SD-Trp medium with a Boekel Microplate Replicator and grown overnight, and finally transferred with the replicator to another deep well plate for overnight growth in 300 µl YPAD. Cells were then transferred with the replicator to a PCR microplate containing 15 µl per well of 2 mg/mL Zymolyase 20T (USBiological) in 0.1 M Phosphate Buffer pH 7.4 and incubated at 37° for 30 min and 95° for 10 min. After incubation, 85 µl H2O was added to each well. PCR was performed using 5 µl of the lysate in a total volume of 50 µl of the recommended buffer with 0.3 µM trpseq2 and trpseq8 primers [43] and 0.5 µl Takara e2TAK DNA polymerase for 30 cycles. For restriction digestion, 5 µl of the PCR reaction was incubated with 2 units of either BfaI or SphI (New England Biolabs) in the recommended buffer in a total volume of 15 µl at 37° overnight and analyzed by gel electrophoresis.

Data analysis

The number of revertant colonies analyzed for each strain and oligo are given in Table S1. For each combination, usually 48 colonies were analyzed; in some instances experiments were repeated multiple times. For experiments repeated three or more times, means and standard deviations are shown in the figures. For comparison of results between strains, all data from a given strain and oligo were combined. Statistical calculations were performed using the VassarStats website ( In most cases, the number of samples was large enough for use of a chi-square test; in the remainder of cases, a Fisher's exact test was used. P values are given for each comparison in the relevant figure.

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4


1. EvansMD, DizdarogluM, CookeMS (2004) Oxidative DNA damage and disease: induction, repair and significance. Mutat Res 567: 1–61.

2. BeardWA, BatraVK, WilsonSH (2010) DNA polymerase structure-based insight on the mutagenic properties of 8-oxoguanine. Mutat Res 703: 18–23.

3. van LoonB, MarkkanenE, HubscherU (2010) Oxygen as a friend and enemy: How to combat the mutational potential of 8-oxo-guanine. DNA Repair (Amst) 9: 604–616.

4. NashHM, BrunerSD, ScharerOD, KawateT, AddonaTA, et al. (1996) Cloning of a yeast 8-oxoguanine DNA glycosylase reveals the existence of a base-excision DNA-repair protein superfamily. Curr Biol 6: 968–980.

5. van der KempPA, ThomasD, BarbeyR, de OliveiraR, BoiteuxS (1996) Cloning and expression in Escherichia coli of the OGG1 gene of Saccharomyces cerevisiae, which codes for a DNA glycosylase that excises 7,8-dihydro-8-oxoguanine and 2,6-diamino-4-hydroxy-5-N-methylformamidopyrimidine. Proc Natl Acad Sci USA 93: 5197–5202.

6. GirardPM, D'HamC, CadetJ, BoiteuxS (1998) Opposite base-dependent excision of 7,8-dihydro-8-oxoadenine by the Ogg1 protein of Saccharomyces cerevisiae. Carcinogen 19: 1299–1305.

7. EarleyMC, CrouseGF (1998) The role of mismatch repair in the prevention of base pair mutations in Saccharomyces cerevisiae. Proc Natl Acad Sci USA 95: 15487–15491.

8. NiTT, MarsischkyGT, KolodnerRD (1999) MSH2 and MSH6 are required for removal of adenine misincorporated opposite 8-oxo-guanine in S-cerevisiae. Mol Cell 4: 439–444.

9. JanssonK, BlombergA, SunnerhagenP, Alm RosenbladM (2010) Evolutionary loss of 8-oxo-G repair components among eukaryotes. Genome Integr 1: 12.

10. CarlsonKD, WashingtonAT (2005) Mechanism of efficient and accurate nucleotide incorporation opposite 7,8-dihydro-8-oxoguanine by Saccharomyces cerevisiae DNA polymerase eta. Mol Cell Biol 25: 2169–2176.

11. HaracskaL, YuSL, JohnsonRE, PrakashL, PrakashS (2000) Efficient and accurate replication in the presence of 7,8-dihydro-8-oxoguanine by DNA polymerase eta. Nature Genet 25: 458–461.

12. YuanFH, ZhangYB, RajpalDK, WuXH, GuoDY, et al. (2000) Specificity of DNA lesion bypass by the yeast DNA polymerase eta. J Biol Chem 275: 8233–8239.

13. SilversteinTD, JainR, JohnsonRE, PrakashL, PrakashS, et al. (2010) Structural basis for error-free replication of oxidatively damaged DNA by yeast DNA polymerase η. Structure 18: 1463–1470.

14. McCullochSD, KokoskaRJ, GargP, BurgersPM, KunkelTA (2009) The efficiency and fidelity of 8-oxo-guanine bypass by DNA polymerases δ and η. Nucleic Acids Res 37: 2830–2840.

15. SabouriN, VibergJ, GoyalDK, JohanssonE, ChabesA (2008) Evidence for lesion bypass by yeast replicative DNA polymerases during DNA damage. Nucleic Acids Res 36: 5660–5667.

16. De PadulaM, SlezakG, van der KempPA, BoiteuxS (2004) The post-replication repair RAD18 and RAD6 genes are involved in the prevention of spontaneous mutations caused by 7,8-dihydro-8-oxoguanine in Saccharomyces cerevisiae. Nucleic Acids Res 32: 5003–5010.

17. SakamotoAN, StoneJE, KisslingGE, McCullochSD, PavlovYI, et al. (2007) Mutator alleles of yeast DNA polymerase ζ. DNA Repair (Amst) 6: 1829–1838.

18. van der KempPA, De PadulaM, Burguiere-SlezakG, UlrichHD, BoiteuxS (2009) PCNA monoubiquitylation and DNA polymerase η ubiquitin-binding domain are required to prevent 8-oxoguanine-induced mutagenesis in Saccharomyces cerevisiae. Nucleic Acids Res 37: 2549–2559.

19. MudrakSV, Welz-VoegeleC, Jinks-RobertsonS (2009) The polymerase η translesion synthesis DNA polymerase acts independently of the mismatch repair system to limit mutagenesis caused by 7,8-dihydro-8-oxoguanine in yeast. Mol Cell Biol 29: 5316–5326.

20. ChangDJ, CimprichKA (2009) DNA damage tolerance: when it's OK to make mistakes. Nat Chem Biol 5: 82–90.

21. WatersLS, MinesingerBK, WiltroutME, D'SouzaS, WoodruffRV, et al. (2009) Eukaryotic translesion polymerases and their roles and regulation in DNA damage tolerance. Microbiol Mol Biol Rev 73: 134–154.

22. DaigakuY, DaviesAA, UlrichHD (2010) Ubiquitin-dependent DNA damage bypass is separable from genome replication. Nature 465: 951–955.

23. Nick McElhinnySA, GordeninDA, StithCM, BurgersPM, KunkelTA (2008) Division of labor at the eukaryotic replication fork. Mol Cell 30: 137–144.

24. PavlovYI, NewlonCS, KunkelTA (2002) Yeast origins establish a strand bias for replicational mutagenesis. Mol Cell 10: 207–213.

25. PavlovYI, MianIM, KunkelTA (2003) Evidence for preferential mismatch repair of lagging strand DNA replication errors in yeast. Curr Biol 13: 744–748.

26. LiX, HeyerWD (2008) Homologous recombination in DNA repair and DNA damage tolerance. Cell Res 18: 99–113.

27. MincaEC, KowalskiD (2010) Multiple Rad5 activities mediate sister chromatid recombination to bypass DNA damage at stalled replication forks. Mol Cell 38: 649–661.

28. BlastyakA, PinterL, UnkI, PrakashL, PrakashS, et al. (2007) Yeast Rad5 protein required for postreplication repair has a DNA helicase activity specific for replication fork regression. Mol Cell 28: 167–175.

29. KamiyaH, YamaguchiA, SuzukiT, HarashimaH (2010) Roles of specialized DNA polymerases in mutagenesis by 8-hydroxyguanine in human cells. Mutat Res 686: 90–95.

30. SuzukiT, HarashimaH, KamiyaH (2010) Effects of base excision repair proteins on mutagenesis by 8-oxo-7,8-dihydroguanine (8-hydroxyguanine) paired with cytosine and adenine. DNA Repair (Amst) 9: 542–550.

31. AvkinS, LivnehZ (2002) Efficiency, specificity and DNA polymerase-dependence of translesion replication across the oxidative DNA lesion 8-oxoguanine in human cells. Mutat Res 510: 81–90.

32. MoriyaM, OuC, BodepudiV, JohnsonF, TakeshitaM, GrollmanAP (1991) Site-specific mutagenesis using a gapped duplex vector: a study of translesion synthesis past 8-oxodeoxyguanosine in E. coli. Mutat Res 254: 281–288.

33. ScottAD, NeishaburyM, JonesDH, ReedSH, BoiteuxS, et al. (1999) Spontaneous mutation, oxidative DNA damage, and the roles of base and nucleotide excision repair in the yeast Saccharomyces cerevisiae. Yeast 15: 205–218.

34. YamamotoT, MoerschellRP, WakemLP, FergusonD, ShermanF (1992) Parameters affecting the frequencies of transformation and co- transformation with synthetic oligonucleotides in yeast. Yeast 8: 935–948.

35. YamamotoT, MoerschellRP, WakemLP, Komar-PanicucciS, ShermanF (1992) Strand-specificity in the transformation of yeast with synthetic oligonucleotides. Genetics 131: 811–819.

36. BaoG, KowYW (2009) Effect of sequence context and direction of replication on AP site bypass in Saccharomyces cerevisiae. Mutat Res 669: 147–154.

37. YungCW, OkugawaY, OtsukaC, OkamotoK, ArimotoS, et al. (2008) Influence of neighbouring base sequences on the mutagenesis induced by 7,8-dihydro-8-oxoguanine in yeast. Mutagenesis 23: 509–513.

38. KowYW, BaoG, MinesingerB, Jinks-RobertsonS, SiedeW, et al. (2005) Mutagenic effects of abasic and oxidized abasic lesions in Saccharomyces cerevisiae. Nucleic Acids Res 33: 6196–6202.

39. OtsukaC, KobayashiK, KawaguchiN, KunitomiN, MoriyamaK, et al. (2002) Use of yeast transformation by oligonucleotides to study DNA lesion bypass in vivo. Mutat Res 502: 53–60.

40. OtsukaC, SanadaiS, HataY, OkutoH, NoskovVN, et al. (2002) Difference between deoxyribose- and tetrahydrofuran-type abasic sites in the in vivo mutagenic responses in yeast. Nucleic Acids Res 30: 5129–5135.

41. NoskovV, NegishiK, OnoA, MatsudaA, OnoB, et al. (1994) Mutagenicity of 5-bromouracil and N6-hydroxyadenine studied by yeast oligonucleotide transformation assay. Mutat Res 308: 43–51.

42. WilliamsT-M, FabbriRM, ReevesJW, CrouseGF (2005) A new reversion assay for measuring all possible base pair substitutions in Saccharomyces cerevisiae. Genetics 170: 1423–1426.

43. RodriguezGP, SongJB, CrouseGF (2012) Transformation with oligonucleotides creating clustered changes in the yeast genome. PLoS ONE 7: e42905.

44. GirardPM, GuibourtN, BoiteuxS (1997) The Ogg1 protein of Saccharomyces cerevisiae: A 7,8-dihydro-8-oxoguanine DNA glycosylase AP lyase whose lysine 241 is a critical residue for catalytic activity. Nucleic Acids Res 25: 3204–3211.

45. BoiteuxS, GellonL, GuibourtN (2002) Repair of 8-oxoguanine in Saccharomyces cerevisiae: interplay of DNA repair and replication mechanisms. Free Radic Biol Med 32: 1244–1253.

46. DizdarogluM (2003) Substrate specificities and excision kinetics of DNA glycosylases involved in base-excision repair of oxidative DNA damage. Mutat Res 531: 109–126.

47. BranzeiD, VanoliF, FoianiM (2008) SUMOylation regulates Rad18-mediated template switch. Nature 456: 915–920.

48. ZhangH, LawrenceCW (2005) The error-free component of the RAD6/RAD18 DNA damage tolerance pathway of budding yeast employs sister-strand recombination. Proc Natl Acad Sci USA 102: 15954–15959.

49. GhaemmaghamiS, HuhW, BowerK, HowsonRW, BelleA, et al. (2003) Global analysis of protein expression in yeast. Nature 425: 737–741.

50. PavlovYI, ShcherbakovaPV (2010) DNA polymerases at the eukaryotic fork-20 years later. Mutat Res 685: 45–53.

51. BoiteuxS, Jinks-RobertsonS (2013) DNA repair mechanisms and the bypass of DNA damage in Saccharomyces cerevisiae. Genetics 193: 1025–1064.

52. UlrichHD, JentschS (2000) Two RING finger proteins mediate cooperation between ubiquitin-conjugating enzymes in DNA repair. EMBO J 19: 3388–3397.

53. GangavarapuV, HaracskaL, UnkI, JohnsonRE, PrakashS, et al. (2006) Mms2-Ubc13-dependent and -independent roles of Rad5 ubiquitin ligase in postreplication repair and translesion DNA synthesis in Saccharomyces cerevisiae. Mol Cell Biol 26: 7783–7790.

54. MinesingerBK, Jinks-RobertsonS (2005) Roles of RAD6 epistasis group members in spontaneous pol ζ-dependent translesion synthesis in Saccharomyces cerevisiae. Genetics 169: 1939–1955.

55. StoriciF, LewisLK, ResnickMA (2001) In vivo site-directed mutagenesis using oligonucleotides. Nat Biotechnol 19: 773–776.

56. WinzelerEA, ShoemakerDD, AstromoffA, LiangH, AndersonK, et al. (1999) Functional characterization of the S. cerevisiae genome by gene deletion and parallel analysis. Science 285: 901–906.

57. GoldsteinAL, McCuskerJH (1999) Three new dominant drug resistance cassettes for gene disruption in Saccharomyces cerevisiae. Yeast 15: 1541–1553.

58. GüldenerU, HeckS, FiedlerT, BeinhauerJ, HegemannJH (1996) A new efficient gene disruption cassette for repeated use in budding yeast. Nucleic Acids Res 24: 2519–2524.

59. KowYW, BaoG, ReevesJW, Jinks-RobertsonS, CrouseGF (2007) Oligonucleotide transformation of yeast reveals mismatch repair complexes to be differentially active on DNA replication strands. Proc Natl Acad Sci USA 104: 11352–11357.

60. ShermanF (2002) Getting started with yeast. Methods Enzymol 350: 3–41.
