and Are Required for Growth under Iron-Limiting Conditions


Iron is essential for photosynthesis and is often a limiting nutrient for plant productivity. Plants respond to conditions of iron deficiency by increasing transcript abundance of key genes involved in iron homeostasis, but only a few regulators of these genes have been identified. Using genome-wide expression analysis, we searched for transcription factors that are induced within 24 hours after transferring plants to iron-deficient growth conditions. Out of nearly 100 transcription factors shown to be up-regulated, we identified MYB10 and MYB72 as the most highly induced transcription factors. Here, we show that MYB10 and MYB72 are functionally redundant and are required for plant survival in alkaline soil where iron availability is greatly restricted. myb10myb72 double mutants fail to induce transcript accumulation of the nicotianamine synthase gene NAS4. Both myb10myb72 mutants and nas4-1 mutants have reduced iron concentrations, chlorophyll levels, and shoot mass under iron-limiting conditions, indicating that these genes are essential for proper plant growth. The double myb10myb72 mutant also showed nickel and zinc sensitivity, similar to the nas4 mutant. Ectopic expression of NAS4 rescues myb10myb72 plants, suggesting that loss of NAS4 is the primary defect in these plants and emphasizes the importance of nicotianamine, an iron chelator, in iron homeostasis. Overall, our results provide evidence that MYB10 and MYB72 act early in the iron-deficiency regulatory cascade to drive gene expression of NAS4 and are essential for plant survival under iron deficiency.


Published in the journal: . PLoS Genet 9(11): e32767. doi:10.1371/journal.pgen.1003953
Category: Research Article
doi: https://doi.org/10.1371/journal.pgen.1003953

Summary

Iron is essential for photosynthesis and is often a limiting nutrient for plant productivity. Plants respond to conditions of iron deficiency by increasing transcript abundance of key genes involved in iron homeostasis, but only a few regulators of these genes have been identified. Using genome-wide expression analysis, we searched for transcription factors that are induced within 24 hours after transferring plants to iron-deficient growth conditions. Out of nearly 100 transcription factors shown to be up-regulated, we identified MYB10 and MYB72 as the most highly induced transcription factors. Here, we show that MYB10 and MYB72 are functionally redundant and are required for plant survival in alkaline soil where iron availability is greatly restricted. myb10myb72 double mutants fail to induce transcript accumulation of the nicotianamine synthase gene NAS4. Both myb10myb72 mutants and nas4-1 mutants have reduced iron concentrations, chlorophyll levels, and shoot mass under iron-limiting conditions, indicating that these genes are essential for proper plant growth. The double myb10myb72 mutant also showed nickel and zinc sensitivity, similar to the nas4 mutant. Ectopic expression of NAS4 rescues myb10myb72 plants, suggesting that loss of NAS4 is the primary defect in these plants and emphasizes the importance of nicotianamine, an iron chelator, in iron homeostasis. Overall, our results provide evidence that MYB10 and MYB72 act early in the iron-deficiency regulatory cascade to drive gene expression of NAS4 and are essential for plant survival under iron deficiency.

Introduction

Understanding plant growth and nutrient uptake is becoming increasingly critical in today's climate of rising food and energy demands. Iron is one of the most limiting nutrients for plant growth and is required for many essential processes including photosynthesis and respiration [1]. Although iron is abundant in most soils, it is often found in the bio-unavailable form of insoluble ferric oxides, particularly in aerobic or alkaline soils [2]. To overcome iron-limiting conditions, graminaceous plants utilize a chelation strategy in which iron-chelating compounds called phytosiderophores are released into the rhizosphere where they chelate iron. These complexes are then taken up via YS/YSL transporters [3], [4]. Non-graminaceous plants utilize a reduction strategy in which they acidify the soil by proton extrusion, reduce iron from the ferric to the ferrous form, and then take up the ferrous form via a ferrous iron transporter. In the model plant Arabidopsis thaliana, the H+-ATPase AHA2 has been shown to play a role in proton extrusion [5], the ferric chelate reductase FRO2 is responsible for reduction of ferric iron [6], and the high affinity ferrous iron transporter IRT1 takes up iron into the epidermis of the root [7], [8]. Once in the root, ferrous iron is thought to be loaded into the xylem by Ferroportin1 (FPT1) [9] where it forms a complex with citrate [10] and it is loaded into the phloem complexed to nicotianamine (NA) [11]. NA is synthesized from S-adenosyl methionine by nicotianamine synthase (NAS) and can form stable complexes with many metals including iron and nickel [12]. NA-Fe2+ complexes are essential for unloading of the vasculature as well as remobilizing iron [13], [14], highlighting these complexes as particularly essential for iron homeostasis. Recent work has also revealed an essential role of NA in zinc tolerance in Arabidopsis and in hyperaccumulation of zinc in Arabidopsis halleri, further stressing the emerging central role of NA in metal homeostasis and suggesting potential for this molecule in biofortification and bioremediation [15], [16]. Indeed, there are now a number of studies showing that expression of various NAS genes leads to increased levels of micronutrients in the seed [17][20]. For example, overexpression of the barley hvNAS1 gene in rice leads to increased concentrations of iron and zinc in the grain [17]. Most encouragingly, enhancing the NA concentration does increase the levels of bioavailable iron and zinc in polished rice. [18].

Transcripts for many of the genes encoding iron homeostasis factors increase within 24 hours of exposure to iron deficiency [21], [22]. Up to 1000 genes show changes in transcript abundance in Arabidopsis roots in response to iron deficiency, but relatively little is known about the factors that may regulate them [21][23]. Previous work in Arabidopsis has shown that the bHLH transcription factor FIT (FER-like Iron-deficiency-induced Transcription factor) is required for mounting a proper iron-deficiency response, and fit plants are severely chlorotic, have reduced iron content, are seedling lethal under iron deficiency, and fail to induce approximately 75 genes that are normally induced under iron deficiency [23][25]. FIT has been shown to form heterodimers with four other bHLH transcription factors belonging to the group Ib sub-family (bHLH38/39/100/101), leading to activation of FRO2 and IRT1 [26], [27]. Another member of the bHLH transcription factor family, POPEYE (PYE), is induced in the root under iron deficiency and has been recently shown to be critical for proper iron homeostasis [28]. pye-1 mutants are able to survive under normal growth conditions, but the mutation is lethal when plants are grown under iron-deficient conditions. Unlike FIT, PYE appears to be a negative regulator and several iron-deficiency regulated genes show higher expression in pye-1 mutants.

To identify important transcriptional regulators, we searched for transcription factors that are induced within 24 hours of transferring plants to iron-deficient growth conditions. MYB10 and MYB72 are the most highly induced transcription factors within 24 hours of exposure to iron deficiency, and this induction continues to increase through 72 hours [22], [23]. Previous studies have shown that MYB10 and MYB72 are also induced in response to zinc and cadmium excess, conditions that are thought to induce iron deficiency [29]. MYB10 and MYB72 are close paralogs in the MYB family, a family with 126 members characterized by the R2 and R3 MYB helix-turn-helix DNA-binding domain [30]. In spite of the large size of this family in Arabidopsis, no MYB factors have been shown to play a functional role in iron homeostasis. In fact, no role has been found yet for MYB10. MYB72 has been shown to be required for induced systemic resistance (ISR) in Arabidopsis roots, although this may also be a result of iron stress, caused by resource competition between the plant and the pathogen [31], [32]. MYB10 and MYB72 are clustered together within the family tree and show 55% similarity overall with 87% similarity within the MYB domains [33]. Many closely clustered MYB family members show conserved function, which suggests that MYB10 and MYB72 may be functionally redundant [34]. At present, there is no information about the function of MYB10 or MYB72 orthologs in other plant species.

In this study, we establish that the transcription factors MYB10 and MYB72 are required for plant survival under iron deficiency. In the absence of these two MYB proteins, induction of the nicotianamine synthase gene NAS4 is reduced in the root, leading to sensitivity to iron deficiency as well as to nickel or zinc excess. Our results establish an essential role for MYB10 and MYB72 in the regulatory cascade of the iron-deficiency response and highlight the importance of NAS4 for proper plant metal homeostasis. Given the emerging role of NA in metal homeostasis, these findings can offer insight into future application in biofortification or bioremediation.

Results

MYB10 and MYB72 are required for survival under iron deficiency

To determine if MYB10 and MYB72 function in the iron deficiency pathway, we obtained T-DNA insertion lines for MYB10 and MYB72 from the Salk collection [35] with an insertion 189 bp upstream of the start codon in the myb10 allele or 296 bp downstream of the start of the third exon in the myb72 allele (Figure S1A). These lines were crossed to create the double mutant myb10myb72. We confirmed that full-length transcripts of MYB10 and MYB72 were absent in these plants (Figure S1B). Although myb10, myb72, and myb10 myb72 plants did not show visible mutant phenotypes when grown on normal soil (pH∼6.0), myb10myb72 plants displayed seedling lethality when grown on alkaline soil (pH∼8.0), a growth condition which leads to iron deficiency due to decreased iron solubility at the elevated pH of the soil (Figure 1A) [2]. This lethality was not observed in myb10 or myb72 plants (Figure 1A), suggesting that MYB10 and MYB72 have overlapping roles. Seedling lethality of myb10myb72 plants was rescued by supplementation with exogenous iron (Figure 1A), but not zinc or manganese, which are also limiting for plant growth under alkaline conditions (Figure S1C).

<i>MYB10</i> and <i>MYB72</i> are required under iron deficiency.
Fig. 1. MYB10 and MYB72 are required under iron deficiency.
A. Plants were grown for 3 weeks on soil under normal, alkaline (iron-limiting), and alkaline +Fe (iron excess) conditions. Iron was added by watering the plants with 500 µM FeEDDHA. B. Plants were grown on intermediate soil (½ normal, ½ alkaline) for 4 weeks and chlorophyll levels were measured. C. Plants grown as in B. Shoot mass of 15 pooled plants. n = 3 biological replicates. p values were calculated using Student's t-test to compare Col and myb10myb72 plants. *p<0.01.

Iron is required for the synthesis of chlorophyll, and iron-deficient plants often show decreased levels of chlorophyll [36]. We measured chlorophyll levels in plants grown on intermediate pH soil (pH∼7.0) and found that while myb10myb72 plants were able to survive on this soil, they showed significantly reduced chlorophyll levels (Figure 1B) and shoot mass (Figure 1C). Plants tightly regulate iron concentrations and while it is rare to see alterations in iron concentrations, concentrations of other metals such as zinc, manganese, cadmium, cobalt, and molybdenum can often serve as a fingerprint for iron deficiency [37]. We find that when grown in intermediate soil, myb10myb72 plants have significantly reduced shoot iron and molybdenum concentrations, as well as significantly increased zinc, cadmium, and cobalt shoot concentrations (Table 1). Although a 13.5% decrease in shoot iron concentration relative to wild type may seem small, as mentioned above, plants tightly regulate their iron levels. The decrease in iron concentration in the myb10myb72 mutant, coupled with the rescue of myb10myb72 seedling lethality by the addition of iron to alkaline soil, suggests that low iron underlies the growth defect. myb10myb72 mutants also have significantly lower iron concentrations and higher cadmium and zinc concentrations in the seeds when grown on normal soil, suggesting that in the absence of MYB10 and MYB72, the plant is unable to properly regulate iron levels (Table 1). No significant differences in iron concentration were detected in roots, but myb10myb72 mutants show significantly higher concentrations of cadmium in their roots (Table S1). myb10myb72 plants also show significantly reduced manganese concentrations in both normal and intermediate pH growth conditions, suggesting an additional role for these transcription factors in manganese homeostasis (Table S2). Excess zinc can also cause iron deficiency by competing for uptake [38]. myb10myb72 plants were more sensitive to excess zinc levels, and this phenotype could be reversed by the presence of added iron (Figure S2).

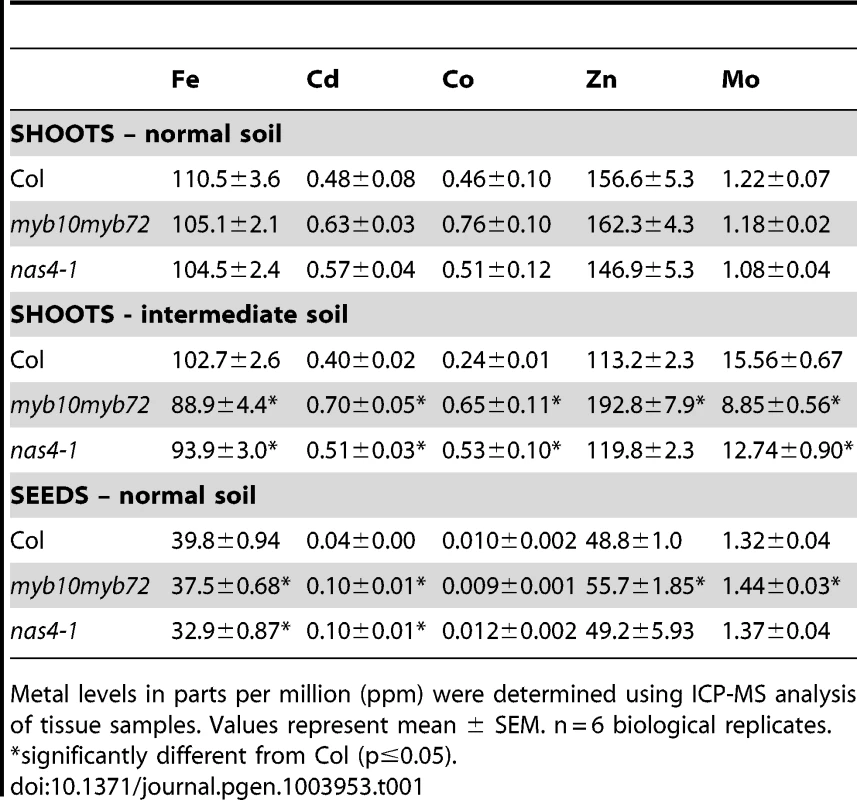

Tab. 1. ICP-MS data for soil-grown plants.
ICP-MS data for soil-grown plants.
Metal levels in parts per million (ppm) were determined using ICP-MS analysis of tissue samples. Values represent mean ± SEM. n = 6 biological replicates.

MYB10 and MYB72 are expressed in the root under iron deficiency

Previous transcriptional profiling in roots of plants exposed to iron deficiency showed that steady state levels of MYB10 and MYB72 transcripts are increased in whole roots under iron deficiency, but showed no enrichment when analyzed by tissue layer [22], [23]. To determine where MYB10 and MYB72 are expressed at the tissue level, we generated transgenic plants expressing the ß-glucuronidase (GUS) reporter gene fused to the MYB10 or MYB72 endogenous promoters (MYB10-GUS or MYB72-GUS). We show that MYB10-GUS and MYB72-GUS were strongly expressed in the root stele when plants were exposed to iron-deficient conditions for 72 hours (Figure 2A). MYB10-GUS also shows staining in the outer layers of the lateral roots under iron deficiency. No staining was observed in other tissues, consistent with expression datasets from AtGenExpress and Genevestigator [39], [40]. To localize the MYB10 and MYB72 proteins, we fused GFP to the C terminus of each coding region with expression driven by the endogenous promoter. These constructs were stably transformed into myb10 or myb72 mutant plants, respectively, and were able to complement the mutant phenotype of myb10myb72 plants, indicating that the constructs are functional (Figure S1D). Consistent with GUS staining patterns, no signal was detected in roots of plants grown under iron sufficiency. MYB10-GFP and MYB72-GFP were detected in nuclei of root cells under iron deficiency with some staining also seen in the cytoplasm and signal was detected in multiple cell layers of the root (Figure 2B).

<i>MYB10</i> and <i>MYB72</i> are expressed in the root under iron deficiency.
Fig. 2. MYB10 and MYB72 are expressed in the root under iron deficiency.
A. GUS expression in the roots of stable MYB10-GUS and MYB72-GUS lines in the Col background. Plants were grown for 5 d on ½ B5 and transferred to +/− Fe plates for 72 hrs. B. GFP expression in the roots of myb10 or myb72 plants stably transformed with MYB10-GFP or MYB72-GFP protein fusions, respectively. Plants were grown for 5 d on ½ B5 and transferred to +/− Fe plates for 72 hrs. Roots were counterstained with propidium iodide (red). A. B. Differentiation zone of root. Scale bar is 0.5 mm.

NAS4 is misregulated in myb10myb72 plants

To identify targets of the MYB10 and MYB72 transcription factors, we conducted microarray analysis on root tissue after 2 week-old seedlings were exposed to iron deficiency for 72 hours. In contrast to the extensive transcriptional misregulation often seen with the loss of a transcription factor, loss of MYB10 and MYB72 in iron-deficient roots led to very few expression changes. 9 genes were found to have at least a 2-fold difference in expression level when comparing RNA isolated from wild type and myb10myb72 root tissue from plants grown under iron deficiency (Table S3). Of these genes, only 5 were confirmed by qPCR to be misregulated in myb10myb72 plants (Figure 3A, Figure S1B, S3A). The two most misregulated transcripts were MYB10 and MYB72, confirming the lack of transcript in myb10myb72 mutants. The transcript levels of the 3 remaining genes, At5g38910, At4g33666, and NAS4, were also significantly lower in myb10myb72 tissue, suggesting that MYB10 and MYB72 positively regulate their transcription under iron deficiency. While this is a surprisingly small number of targets, all three have potential roles in metal homeostasis. At5g38910 is predicted to a be a putative Mn superoxide dismutase, At4g33666 is an unknown protein predicted to localize to the chloroplast, and At1g56430 encodes NAS4, a synthase of NA, a well-known chelator of iron. At5g38910 is not iron-regulated, so we did not pursue this gene in our studies, but both At4g33666 and NAS4 normally show increased transcript levels in the root under iron deficiency [22], [23]. To further assess whether these genes might be direct targets, we analyzed the promoter regions for consensus MYB binding sites. MYB10 and MYB72 belong to group C of the MYB family and are predicted to bind to the IIG canonical sequence of 5′-G(G/T)T(A/T)GGT(A/G)-3′ [41]. Of the three confirmed targets, only NAS4 has a binding site within 1 kb upstream of the predicted translational start site.

<i>nas4-1</i> mutants are sensitive to alkaline soil.

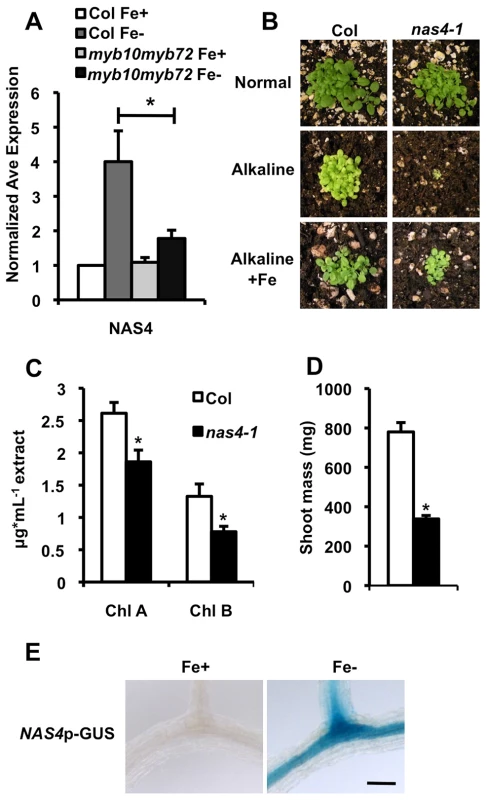

Fig. 3. nas4-1 mutants are sensitive to alkaline soil.
A. qPCR on root tissue from plants grown for 2 weeks on ½ B5 and transferred to +/− Fe plates for 72 hrs. B. Plant seedling phenotype on soil under normal, alkaline (iron-limiting), and alkaline +Fe (excess iron) conditions. C. Chlorophyll levels of 15 pooled plants grown on intermediate soil for 4 weeks. D. Quantification of shoot mass of 15 pooled plants grown on intermediate soil for 4 weeks. E. GUS expression in the roots of stable NAS4p-GUS lines in the Col background. Scale bar is 0.5 mm. Plants were grown for 5 days on ½ B5 and transferred to −Fe plates for 72 hr. n = 3 biological replicates. *p<0.01.

In addition to microarray analysis, we used qPCR to confirm that MYB10 and MYB72 are not required for expression of FRO2 and IRT1, the two main genes required for mounting a proper iron deficiency response. Both FRO2 and IRT1 were induced in myb10 myb72 plants under iron deficiency. In fact, levels of ferric chelate reductase activity and IRT1 protein were somewhat elevated under iron deficiency in the myb10/myb72 plants, suggesting that myb10/myb72 plants are iron deprived relative to wild type plants. We also investigated if MYB10 and MYB72 regulate the other two root-expressed NAS genes, NAS1 and NAS2, and found that while NAS2 is modestly induced in wild type plants under iron deficiency, this induction is completely lost in the myb10myb72 mutants (Fig. S3B). NAS1 expression was not altered in the double mutant background. NAS2 also has a MYB binding site within 1 kb upstream of the translational start site. These data suggest that in addition to NAS4, NAS2 is also a downstream target of MYB10 and MYB72 under iron deficiency.

nas4-1 mutants are sensitive to iron deficiency

To test if expression of NAS4, NAS2, or At4g33666 is required for survival under iron deficiency, we obtained T-DNA insertional mutants from the SALK collection [35]. All three genes are encoded by a single exon, and the T-DNA insertion is found in the exon of each mutant line. qPCR showed dramatically reduced transcript levels of the interrupted gene in the a4tg33666, nas4-1, and nas2-2 lines (Figure S3C, D) [42]. at4g33666 mutants showed no visible phenotype on alkaline soil, suggesting that At4g33666 is not required for survival under iron deficiency (Figure S4A). We found no detectable phenotype for the nas2-2 mutants when grown on alkaline soil (Figure S4B). However, we find that nas4-1 mutants are seedling lethal on alkaline soil, and this lethality can be rescued by application of exogenous iron (Figure 3B), similar to the phenotype seen in myb10myb72 plants. nas4-1 mutants survive on intermediate soil, but show reduced leaf size and interveinal chlorosis (Figure 3C, D). This chlorosis is limited to the interveinal region (Figure S4C). Like myb10myb72 plants, nas4-1 plants also have significantly reduced shoot iron and molybdenum concentrations and increased shoot cadmium and cobalt concentrations when grown on intermediate soil, as well as reduced seed iron concentrations and increased seed cadmium concentrations when grown on normal soil (Table 1). nas4-1 plants also show decreased manganese concentrations (Table S2) and sensitivity to excess levels of zinc (Figure S2). Lastly, we fused the NAS4 promoter to the GUS reporter gene and see that NAS4 is strongly expressed in the root stele under iron deficiency in the same pattern as MYB10 and MYB72 (Figure 3E). These data suggest that NAS4 expression is required for proper iron homeostasis under iron-deficient growth conditions and that reduced expression of NAS4 in myb10myb72 plants may be the primary cause of the myb10myb72 mutant phenotype.

myb10myb72 and nas4-1 mutants are sensitive to nickel

NAS genes have previously been implicated in nickel tolerance [43][45], so we tested the sensitivity of nas4-1 and myb10myb72 plants to excess levels of nickel. We found that nas4-1 and myb10myb72 plants showed severe growth defects in comparison to wild type when germinated on plates with excess nickel (Fig. 4A). This could be rescued by the addition of extra iron. Neither nas2-2 nor at4g33666 plants showed sensitivity (Figure S4D, E). nas4-1 and myb10myb72 plants also showed greater sensitivity than wild type plants to acute application of excess nickel when grown on soil (Fig. 4B).

<i>myb10myb72</i> and <i>nas4-1</i> mutants are sensitive to excess nickel.
Fig. 4. myb10myb72 and nas4-1 mutants are sensitive to excess nickel.
A. Plants were grown for 3 weeks on ½ B5 plates supplemented as indicated. B. Plants were grown on intermediate soil for 3 weeks supplemented weekly with water or 50 mM NiSO4.

Overexpression of NAS4 rescues myb10myb72 mutants

If the inability to induce NAS4 expression is the primary cause of the iron and nickel sensitivity of myb10myb72 plants, overexpression of NAS4 should rescue myb10myb72 plants. Because the endogenous NAS4 promoter may require MYB10 and MYB72 for activation, we generated myb10myb72 plants expressing NAS4 under the control of the 35S promoter. These seedlings have high levels of NAS4 expression and contain 4 fold more NA than wild type or myb10myb72 seedlings (Figure S5). They survived on alkaline soil and showed rescue of nickel sensitivity (Figure 5A, B). It is important to note that under the growth conditions used here, both wild type and the myb10 myb72 mutant have low levels of NAS4 expression and hence low NA levels. It is the inability of myb10 myb72 to raise its NA levels under Fe deficiency that is apparently causing a problem as increasing NA by overexpressing NAS4 clearly improved growth. Of course, because we do not see complete rescue of the myb10myb72 mutant by NAS4 it is possible these two transcription factors control other aspects of growth in alkaline soil. It is also possible that NA levels are not necessarily at the right concentration in the right place at the right time.

Overexpression of <i>NAS4</i> rescues <i>myb10myb72</i> sensitivity.
Fig. 5. Overexpression of NAS4 rescues myb10myb72 sensitivity.
A. Plants were grown for 3 weeks on soil under normal or alkaline (iron-limiting) conditions. B. Plants were grown for 3 weeks on ½ B5 plates with 50 µM NiCl2.

To test if MYB10 and MYB72 act directly on NAS4, we created a yeast line with stable integration of 1.5 kb of the NAS4 promoter driving the histidine biosynthesis gene HIS3 and separately driving ß-galactosidase (LacZ). These stable lines were transformed with constructs expressing MYB10 or MYB72 fused the yeast GAL activation domain (AD). Yeast expressing MYB10-AD or MYB72-AD showed an increased ability to grow in the absence of HIS in the presence of the histidine competitor 3-Amino-1,2,3-triazole (3-AT), indicating that they bind to the NAS4 promoter and drive HIS production (Figure S6A, B). This binding may be weak as there was no detectable activation of the LacZ reporter in these strains (Fig. S5B). We also carried out ChIP-qPCR and see enrichment of MYB10-GFP at the NAS2 and NAS4 promoters (Figure S6C).

Discussion

To date, a number of bHLH transcription factors, including FIT and PYE, have been shown to have a critical role in the iron-deficiency response in Arabidopsis [23], [27], [28]. Here we identify two new MYB family transcription factors, MYB10 and MYB72, that are required for plant survival under iron-limited conditions. MYB10 and MYB72 are both induced in the root within 6 hours of exposure to iron deficiency and this induction is reduced in fit mutants but not in pye mutants, suggesting that they act early in the regulatory cascade ([22], [23]; see model in Figure 6). MYB72 has recently been shown to be a direct target of FIT [46]. FIT is only expressed in the root and we see no expression of MYB10 or MYB72 in the shoot. We show that MYB10 and MYB72 are required for proper induction of NAS4 expression in the root under iron deficiency. NAS4 has previously been shown to be negatively regulated by PYE, suggesting that PYE may play an antagonistic role to that of MYB10 and MYB72 [28]. Loss of NA has previously been shown to lead to severe chlorosis in tomato chloronerva mutants which lack any functional NAS, as well as in tobacco plants overexpressing the nicotianamine amino transferase gene NAAT, which consumes NA [11], [47], [48]. Loss of all four NAS genes in Arabidopsis thaliana has also been shown to lead to chlorosis and sterility [42]. While previous work had shown that loss of any single NAS gene in Arabidopsis did not lead to a detectable phenotype under iron deficiency [42], [49], a recent review article reports that all single nas mutants are more chlorotic than wild type [12]. We find that nas4-1 mutants show interveinal chlorosis and reduced shoot mass under iron-deficient conditions, as well as decreased shoot and seed iron concentrations. We confirmed previous results showing that nas4-1 mutants are sensitive to high nickel levels (Figure 4) [42]. Overexpression of a Thlaspi caerulescens NAS or barley NAS in Arabidopsis has been shown to confer tolerance to excess levels of nickel [43], [44] and the nickel hyperaccumulator Thlaspi caerulescens has higher levels of NAS4 expression than Arabidopsis [29], [45]. Most recently, Koen et al. [50] have also documented a role for nas4 in the iron deficiency response as well as in sensitivity to cadmium.

Relationship of MYB10, MYB72, FIT and PYE in the transcriptional response to iron deficiency.

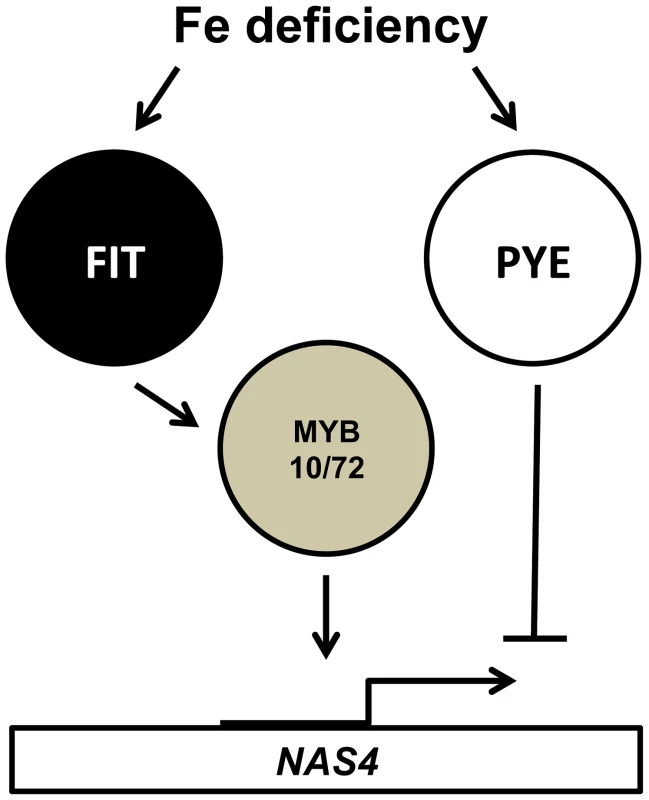

Fig. 6. Relationship of MYB10, MYB72, FIT and PYE in the transcriptional response to iron deficiency.
All interactions shown are believed to be direct binding to the respective promoters.

Although previous work showed no reduction in total NA levels in nas4-1 mutants [42], Koen et al. have reported that the concentration of NA in roots and shoots of nas4 plants are significantly reduced compared to wild type [50]. Of the four NAS genes, NAS4 is the most highly induced in the root under iron deficiency and is the only one that is induced in the stele, supportive of a role in iron transport with the root vasculature [22]. Nicotianamine has been well established to bind the divalent cations Mn<Fe<Zn<Ni, with increasing binding affinity [11]. Under conditions of limited iron, the limiting levels of NA will favor the formation of NA-Zn2+ complexes over Fe and Mn, leading to decreased iron and manganese transport into the phloem by the appropriate transporter. Excess nickel would exacerbate this decreased iron transport by competing for binding with the NA that is present, especially given the higher binding affinity.

We propose that the sensitivity of myb10myb72 mutants to iron deficiency and excess nickel is predominantly due to reduced levels of NAS4 and a resulting decrease in root vasculature levels of NA. This reduction is further exacerbated by reduced levels of NAS2 in the root under iron deficiency. NAS2 has been shown to be primarily expressed in the root epidermis and cortex [22]. We hypothesize that it provides a pool of NA in the epidermis where metals are taken up from the rhizosphere. Loss of NAS2 alone does not lead to a detectable defect, but when coupled with loss of NAS4, root levels of NA are insufficiently induced under iron deficiency to meet the demands of the plant. The reduced pool of local NA also leads to an iron-deprived phenotype in these mutants under conditions of nickel excess due to competition for NA binding. Differences between the myb10myb72 mutant and nas4-1 may be attributable to the fact that myb10myb72 still has NAS4 expression in the shoot, which would allow for unloading of metals from the vasculature, leading to the uniform chlorosis seen in the myb10myb72 mutants.

We put forward the following model. Under conditions of iron deficiency, upregulation of IRT1 leads to increased uptake of iron, zinc, cadmium, and manganese in the root epidermis. Local NA, potentially produced by NAS2, can bind these metals and either serves as a substrate for transporters that drive sequestration of excess metals into the vacuole or can move through the symplastic space toward the pericycle. Once in the pericycle, any unbound metals can be chelated by a second pool of NA, likely produced by NAS4, and loaded into the vasculature. Excess zinc and cadmium can be loaded into the xylem by HMA transporters [51], independent of NA levels. Once in the vasculature, NA complexes are taken into the shoot via YSL transporters and ultimately reach the seed, and this transport is dependent on shoot expression of NAS4. In the absence of MYB10 and MYB72, NAS2 and NAS4 are not properly induced under iron deficiency, leading to local decreases in NA, decreased levels of NA bound Fe2+, and ultimately decreased levels of iron in the shoot and the seed. Thus, we propose that MYB10 and MYB72 serve essential roles in the iron-deficiency response by regulating expression of NAS2 and NAS4 in the root. In combination with previous research, these findings suggest that the iron-deficiency induced transcription factors may induce distinct portions of the iron-deficiency response, from upregulation of the iron transporter as with FIT and IRT1 to up-regulation of the NA biosynthesis enzymes as with MYB10, MYB72 and NAS4. This partitioning by a small number of initial response transcription factors can allow the plant to fine-tune responses to the environment while still maintaining a rapid response.

In summary, our study shows that MYB10 and MYB72 are required for survival under iron-limiting conditions and nickel excess, for expression of NAS2 and NAS4, and for proper iron acquisition in plants.

Materials and Methods

Plant materials and growth conditions

Seeds were surface sterilized and stratified for 2 d in the dark at 4°C. ½ B5 medium was supplemented with 1 mM MES, 2% sucrose, 0.6% agar, pH 5.8. To test for metal sensitivity, ½ B5 medium was amended with either 25 µM ZnSO4, 2.5 µM CdSO4 or 50 µM NiCl2. +Fe and −Fe minimal medium plates were made as described [52], 0.6% agar, and 1 mM MES, pH 6.0, then supplemented with either 50 µM Fe(III)-EDTA (+Fe), or 300 µM ferrozine [3- (2-pyridyl)-5,6-diphenyl-1,2,4-triazine sulfonate] (−Fe). Alkaline soil was prepared by addition of calcium oxide to a final soil pH of 7.5–8.0. “Alkaline +Fe” conditions were achieved by watering plants growing in alkaline soil with 500 µM FeEDDHA. Plants were grown under a 16/8-h light-dark cycle at 21°C.

Identification of mutant lines

myb10 and myb72 lines were acquired from the Arabidopsis Knockout Facility and screened using MYB10- and MYB72-specific primers and a T-DNA–specific primer (Table S4) [53]. The Col lines myb10 (SALK_120297), myb72 (SALK_052993), nas1-2 (SALK_082176), nas2-2 (SALK_066962), nas3-2 (SAIL_626_G10), nas4-1 (SALK_130557) nas4-2 (SALK_017016) were acquired from the Salk Collection and at4g33666-1 (CS900982) from the WiscDsLoxHs Collection via ABRC [35], [54].

GUS histochemical staining

MYB10-GUS and MYB72-GUS plants were grown for 5 d on ½ B5 medium and then transferred to +Fe or −Fe minimal media for 3 d. Plants were incubated with the substrate 5-bromo-4-chloro-3-indolyl β-D-glucuronide as described [55].

GFP localization

MYB10-GFP and MYB72-GFP plants were grown for 5 d on ½ B5 medium and transferred to +Fe or −Fe minimal media for 3 d. Roots were counterstained with propidium iodide and visualized using an epifluorescence microscope, Nikon Eclipse 80i (Nikon USA), using 543 nm and 633 nm HeNe lasers with filter sets 31001 (exciter, D480/20x; dichroic, 505DCLP; emitter, D535/40m) and 31003 (exciter, D546/10x; dichroic, 560DCLP; emitter, D590/30m) from Chroma Technology.

Chlorophyll assay

Plants were grown under a 16/8-h light-dark cycle at 21°C on ½ B5+2% sucrose for 2 weeks and then transferred to +Fe or −Fe minimal media for 3 d. The shoots were harvested and assayed for chlorophyll and carotenoid content as previously described [56].

Real-time quantitative PCR

RNA was prepared from Col and myb10myb72 plants (grown on ½ B5 for 2 weeks and then transferred to +Fe or −Fe minimal media for 3 d). Real-time quantitative PCR was performed on an ABI Model 7700 using SYBR Premix ExTaq (Perfect Real Time) reagents and protocol (Takara). Primers used are listed in Table S4. Samples were run in triplicate, normalized to EF1α, and arbitrary transcriptional units calculated. Values represent the average of three biological replicates.

Microarray analysis

Plants were grown for 2 wk on ½ B5+2% sucrose and then transferred to −Fe plates for 72 hr under a 16/8-h light-dark cycle at 21°C. RNA was harvested from root tissue from 20 plants per replicate, and samples were run in duplicate. RNA was labeled and hybridized to the GeneChip Affymetrix Arabidopsis ATH1 Genome Arrays at Purdue University. Raw data were analyzed using the limma and affy packages in R [57]. Data has been deposited at ArrayExpress.

Tissue elemental analysis

Tissue samples were dried at 92°C for 20 h in Pyrex tubes (16×100 mm). Elemental analysis was done by ICP-MS at Purdue University as described [58].

Plasmid construction and plant transformation

For GUS constructs, MYB10, MYB72, and NAS4 promoter regions were amplified from Col genomic DNA and cloned into the pMDC162 Gateway destination vector [59] using Gateway LR Clonase II (Invitrogen). Agrobacterium tumefaciens strain GV3101 was transformed with these constructs and used to transform plants using the floral dip method [60]. Transformants were isolated by selection on hygromycin (25 mg/mL).

35S lines were created by amplifying the MYB10, MYB72, and NAS4 CDS off cDNA from wild-type roots grown for 2 weeks on half-strength B5 and then transferred for 3 d to −Fe minimal media. They were subcloned into the pENTR Gateway plasmid (Invitrogen) and sequenced. The MYB10, MYB72, NAS4 constructs were subcloned into the pMDC32 Gateway destination vector [59] using Gateway LR Clonase II (Invitrogen). Proper integration was assessed by sequencing. Plant transformants were generated as above.

MYB10-GFP and MYB72-GFP constructs were made by subcloning the region starting from 1.5 kb upstream of the start site (promoter) and ending one codon upstream of the stop site in the open reading frame into the pENTR Gateway plasmid (Invitrogen), allowing for a translational fusion with GFP in the final vector. These constructs were then subcloned into a modified pEARLEY301 [61] that had the HA tag replaced with the GFP from pEARLEY103 (Suna Kim) using Gateway LR Clonase II (Invitrogen). Proper integration was assessed by sequencing. Constructs were amplified and prepared for direct use in protoplasts using a plasmid midi kit (Promega).

Yeast one-hybrid

1.5 kb of the NAS4 promoter was cloned into the pMW2 and pMW3 backbone and stably transformed into the YM4271 yeast strain. The MYB10 or MYB72 CDS was cloned into pGADT7 and transiently expressed in the stable transformants. Growth on selective media was assessed as described [62].

Chromatin immunoprecipitation assay

Plants were germinated on ½ B5 plates with hygromycin (25 mg/mL) and no sucrose. After 14 d, they were transferred to −Fe minimal medium for 3 d. Roots from 40 plants were pooled and processed for chromatin immunoprecipitation as previously described [63]. Briefly, roots were cross-linked using formaldehyde, chromatin was extracted and sonicated to approximately 0.5–1 kb DNA fragments. Proteins were immunopreciptated using anti-GFP antibody (ab290, Abcam) and protein A agarose with salmon sperm (Millipore). Samples were washed, reverse crosslinked, precipitated, and analyzed for bound DNA using qPCR.

Nicotianamine measurement

Plants were grown on 1/2 B5 plates for 2 weeks. Seedlings were harvested and 100 mg fresh weight was flash frozen and lyophilized overnight (n = 4 per genotype). Nicotianamine was quantified following derivatization with 9-fluorenylmethyl N-succinimidyl carbonate (Fmoc-Osu) by stable isotope dilution as previously described [64].

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4

Attachment 5

Attachment 6

Attachment 7

Attachment 8

Attachment 9

Attachment 10


Zdroje

1. PalmerC, GuerinotML (2009) Facing the challenges of Cu, Fe and Zn homeostasis in plants. Nature Chem Biol 5: 333–340.

2. GuerinotML, YiY (1994) Iron: nutritious, noxious, and not readily available. Plant Physiol 104: 815–820.

3. CurieC, PanavieneZ, LoulergueC, DellaportaSL, BriatJ-F, et al. (2001) Maize yellow stripe1 encodes a membrane protein directly involved in Fe(III) uptake. Nature 409: 346–349.

4. LeeS, ChieckoJC, KimSA, WalkerEL, LeeY, et al. (2009) Disruption of OsYSL15 leads to iron inefficiency in rice plants. Plant Physiol 150: 786–800.

5. SantiS, SchmidtW (2009) Dissecting iron deficiency-induced proton extrusion in Arabidopsis roots. New Phytol 183 (4) 1072–84.

6. RobinsonNJ, ProcterCM, ConnollyEL, GuerinotML (1999) A ferric-chelate reductase for iron uptake from soils. Nature 397: 694–697.

7. EideD, BroderiusM, FettJ, GuerinotML (1996) A novel iron-regulated metal transporter from plants identified by functional expression in yeast. Proc Natl Acad Sci USA 93: 5624–5628.

8. VertG, GrotzN, DedaldechampF, GaymardF, GuerinotML, et al. (2002) IRT1, an Arabidopsis transporter essential for iron uptake from the soil and plant growth. Plant Cell 14: 1223–1233.

9. MorrisseyJ, BaxterIR, LeeJ, LiL, LahnerB, et al. (2009) The ferroportin metal efflux proteins function in iron and cobalt homeostasis in Arabidopsis. Plant Cell 21: 3326–3338.

10. RogersEE, GuerinotML (2002) FRD3, a member of the multidrug and toxin efflux family, controls iron deficiency responses in Arabidopsis. Plant Cell 14: 1787–1799.

11. CurieC, CassinG, CounchD, DivolF, KH, et al. (2009) Metal movement within the plant: contribution of nictotianamine and yellow stripe 1-like transporters. Ann Bot 103: 1–11.

12. BauerP, SchulerM (2011) Heavy metals need assistance: The contribution of nicotianamine to metal circulation throughout the plant and the Arabidopsis NAS gene family. Frontiers in Plant Science 2: 69.

13. WatersBM, ChuHH, DidonatoRJ, RobertsLA, EisleyRB, et al. (2006) Mutations in Arabidopsis Yellow Stripe-Like1 and Yellow Stripe-Like3 reveal their roles in metal ion homeostasis and loading of metal ions in seeds. Plant Physiol 141: 1446–1458.

14. SchulerM, Rellan-AlverezR, Fink-StraubeC, AbadiaJ, BauerP (2012) Nictoianamine functions in the phloem-based transport of iron to sink organs, in pollen development and pollen tube growth in Arabidopsis. Plant Cell 24: 2380–2400.

15. DeinleinU, WeberM, SchmidtH, RenschS, TrampczynskaA, et al. (2012) Elevated nicotianamine levels in Arabidopsis halleri roots play a key role in zinc hyperaccumulation. Plant Cell 24: 708–723.

16. HaydonMJ, KawachiM, WirtzM, HillmerS, HellR, et al. (2012) Vacuolar nicotianamine has critical and distinct roles under iron deficiency and for zinc sequestration in Arabidopsis. Plant Cell 24: 724–737.

17. MasudaH, UsudaK, KobayashiT, IshimaruY, KakeiY, et al. (2009) Overexpression of the barley nicotianamine synthase gene HvNAS1 increases iron and zinc concentrations in rice grains. Rice 2: 155–166.

18. LeeS, JeonUS, LeeSJ, KimYK, PerssonDP, et al. (2009) Iron fortification of rice seeds through activation of the nicotianamine synthase gene. Proc Natl Acad Sci USA 106: 14–19.

19. JohnsonAA, KyriacouB, CallahanDL, CarruthersL, StangoulisJ, et al. (2011) Constitutive overexpression of the OsNAS gene family reveals single-gene strategies for effective iron- and zinc-biofortification of rice endosperm. PLoS One 6 (9) e24476 doi: 10.1371/journal.pone.0024476

20. MasudaH, IshimaruY, AungMS, KobayashiT, KakeiY, et al. (2012) Iron biofortification in rice by the introduction of multiple genes involved in iron nutrition. Sci Rep 2: 543.

21. BuckhoutTJ, YangTJ, SchmidtW (2009) Early iron-deficiency-induced transcriptional changes in Arabidopsis roots as revealed by microarray analyses. BMC Genomics 10: 147.

22. DinnenyJR, LongTA, WangJY, JungJW, MaceD, et al. (2008) Cell identity mediates the response of Arabidopsis roots to abiotic stress. Science 320: 942–945.

23. ColangeloEP, GuerinotML (2004) The essential bHLH protein FIT1 is required for the iron deficiency response. Plant Cell 16: 3400–3412.

24. JakobyM, WangHY, ReidtW, WeisshaarB, BauerP (2004) FRU (BHLH029) is required for induction of iron mobilization genes in Arabidopsis thaliana. FEBS Lett 577: 528–534.

25. YuanYX, ZhangJ, WangDW, LingHQ (2005) AtbHLH29 of Arabidopsis thaliana is a functional ortholog of tomato FER involved in controlling iron acquisition in strategy I plants. Cell Res 15: 613–621.

26. YuanY, WuH, WangN, KLiJ, ZhaoW, et al. (2008) FIT interacts with AtbHLH38 and AtbHLH39 in regulating iron uptake gene expression for iron homeostasis in Arabidopsis. Cell Res 18: 385–397.

27. WangN, CuiY, FanH, DuJ, HuangZ, et al. (2012) Requirement and functional redundancy of 1b subgroup bHLH proteins for iron deficiency responses and uptake in Arabidopsis thaliana. Mol Plant 6 (2) 503–13.

28. LongTA, TsukagoshiH, BuschW, LahnerB, SaltDE, et al. (2010) The bHLH transcription factor POPEYE regulates response to iron deficiency in Arabidopsis roots. Plant Cell 22: 2219–2236.

29. van de MortelJE, SchatH, ModerlandPD, van ThemaatE, van der EntS, et al. (2008) Expression differences for genes involved in lignin, glutathione and sulphate metabolism in response to cadmium in Arabidopsis thaliana and the related Zn/Cd hyperaccumulator Thlaspi caerulescens. Plant Cell Environ 31: 301–324.

30. DubosC, StrackeR, GrotewoldE, WeisshaarB, MartinC, et al. (2010) MYB transcription factors in Arabidopsis. Trends Plant Sci 15: 573–581.

31. Van der EntS, VerhagenBWM, Van DoornR, BakkerD, VerlaanMG, et al. (2008) MYB72 is required in early signaling steps of rhizobacteria-induced systemic resistance in Arabidopsis. Plant Physiol 146: 1293–1304.

32. SegarraG, Van der EntS, TrillasI, PieterseC (2009) MYB72, a node of convergence in induced systemic resistance triggered by a fungal and a bacterial beneficial microbe. Plant Biol 11: 90–96.

33. MatusJT, AqueaF, Arce-JohnsonP (2008) Analysis of the grape MYB R2R3 subfamily reveals expanded wine quality-related clades and conserved gene structure organization across Vitis and Arabidopsis genomes. BMC Plant Biol 8: 83.

34. StrackeR, WerberM, WeisshaarB (2001) The R2R3-MYB gene family in Arabidopsis thaliana. Curr Opin Plant Biol 4: 447–456.

35. AlonsoJM, StephanovaAN, LeisseTJ, KCJ, ChenH, et al. (2003) Genome-wide insertional mutagenesis of Arabidopsis thaliana. Science 301: 653–657.

36. Marschner H (2012) Mineral Nutrition of Higher Plants. Boston: Academic Press. 651 p.

37. BaxterI, VitekO, LahnerB, MuthukumarB, BorghiM, et al. (2008) The leaf ionome as a multivariable system to detect a plant's physiological status. Proc Natl Acad Sci U S A 105: 12081–12086.

38. GhasemiR, GhaderianSM, KramerU (2009) Interference of nickel with copper and iron homeostasis contributes to metal toxicity symptoms in the nickel hyperaccumulator plant Alyssum inflatum. New Phytol 184: 566–580.

39. SchmidM, DavisonTS, HenzSR, PapeUJ, DemarM, et al. (2005) A gene expression map of Arabidopsis thaliana development. Nat Genet 37: 501–506.

40. ZimmermannP, Hirsch-HoffmannM, HennigL, GruissemW (2004) GENEVESTIGATOR. Arabidopsis microarray database and analysis toolbox. Plant Physiol 136: 2621–2632.

41. RomeroI, FuertesA, BenitoMJ, MalpicaJM, LeyvaA, et al. (1998) More than 80R2R3-MYB regulatory genes in the genome of Arabidopsis thaliana. Plant J 14: 273–284.

42. KlatteM, SchulerM, WirtzM, Fink-StraubeC, HellR, et al. (2009) The analysis of Arabidopsis nicotianamine synthase mutants reveals functions for nicotianamine in seed iron loading and iron deficiency responses. Plant Physiol 150: 257–271.

43. PianelliK, MariS, MarquesL, LebrunM, CzernicP (2005) Nicotianamine over-accumulation confers resistance to nickel in Arabidopsis thaliana. Transgenic Res 14: 739–748.

44. KimS, TakahashiM, HiguchiK, TsunodaK, NakanishiH, et al. (2005) Increased nicotianamine biosynthesis confers enhanced tolerance of high levels of metals, in particular nickel, to plants. Plant Cell Physiol 46: 1809–1818.

45. MariS, GendreD, PianelliK, OuerdaneL, LobinskiR, et al. (2006) Root-to-shoot long-distance circulation of nicotianamine and nicotianamine-nickel chelates in the metal hyperaccumulator Thlaspi caerulescens. J Exp Bot 57: 4111–4122.

46. SivitzAB, HermandV, CurieC, VertG (2012) Arabidopsis bHLH100 and bHLH101 control iron homeostasis via a FIT-independent pathway. PLoS One 7: e44843.

47. LingHQ, KochG, BauleinH, GanalMW (1999) Map-based cloning of chloronerva, a gene involved in iron uptake of higher plants encoding nicotianamine synthase. Proc Natl Acad Sci USA 96: 7098–7103.

48. TakahashiM, TeradaY, NakaiI, NakanishiH, YoshimuraE, et al. (2003) Role of nicotianamine in the intracellular delivery of metals and plant reproductive development. Plant Cell 15: 1263–1280.

49. BauerP, ThielT, KlatteM, BereczkyZ, BrumbarovaT, et al. (2004) Analysis of sequence, map position, and gene expression reveals conserved essential genes for iron uptake in Arabidopsis and tomato. Plant Physiol 136: 4169–4183.

50. KoenE, Besson-BardA, DucC, AstierJ, GravotA, et al. (2013) Arabidopsis thaliana nicotianamine synthase 4 is required for proper response to iron deficiency and to cadmium exposure. Plant Sci 209: 1–11.

51. KramerU, TalkeIN, HanikenneM (2007) Transition metal transport. FEBS Lett 581: 2263–2272.

52. MarschnerH, RömheldV, Ossenberg-NeuhausH (1982) Rapid method for measuring changes in pH and reducing processes along roots of intact plants. Z Pflanzenphysiol 105: 407–416.

53. KrysanPJ, YoungJC, SussmanMR (1999) T-DNA as an insertional mutagen in Arabidopsis. Plant Cell 11: 2283–2290.

54. NishalB, TantikanjanaT, SundaresanV (2005) An inducible targeted tagging system for localized saturation mutagenesis in Arabidopsis. Plant Physiol 137: 3–12.

55. JeffersonRA, KavanaghTA, BevanMW (1987) GUS fusions: beta-glucuronidase as a sensitive and versatile gene fusion marker in higher plants. EMBO J 6: 3901–3907.

56. LichtenthalerHK (1987) Chlorophylls and carotenoids: pigments of photosynthetic biomembranes. Meth Enzymol 148: 350–382.

57. SmythGK (2004) Linear models and empirical bayes methods for assessing differential expression in microarray experiments. Stat Appl Genet Mol Biol 3: Article 3.

58. LahnerB, GongJ, MahmoudianM, SmithEL, AbidKB, et al. (2003) Genomic scale profiling of nutrient and trace elements in Arabidopsis thaliana. Nat Biotechnol 21: 1215–1221.

59. CurtisMD, GrossniklausU (2003) A gateway cloning vector set for high-throughput functional analysis of genes in planta. Plant Physiol 133: 462–469.

60. CloughSJ, BentAF (1998) Floral dip: a simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J 16: 735–743.

61. EarleyKW, HaagJR, PontesO, OpperK, JuehneT, et al. (2006) Gateway-compatible vectors for plant functional genomics and proteomics. Plant J 45: 616–629.

62. DeplanckeB, VermeirssenV, ArdaHE, MartinezNJ, WalhoutAJ (2006) Gateway-compatible yeast one-hybrid screens. CSH Protoc 2006 doi: 10.1101/pdb.prot4590

63. BowlerC, BenvenutoG, LaflammeP, MolinoD, ProbstA, et al. (2004) Chromatin techniques for plant cells. Plant J 39: 776–789.

64. SchmidtH, BöttcherC, TrampczynskaA, ClemensS (2011) Use of recombinantly produced 15N3-labelled nicotianamine for fast and sensitive stable isotope dilution ultra-performance liquid chromatography/electrospray ionization time-of-flight mass spectrometry. Anal Bioanal Chem 399: 1355–1361.
