A Unique Virulence Gene Occupies a Principal Position in Immune Evasion by the Malaria Parasite


Many eukaryotic pathogens avoid the immune system of their hosts by switching expression between genes encoding their exposed surface antigens. This process, called antigenic variation, is key to the ability of these organisms to cause long-term, chronic infections and represents a major virulence determinant for many infectious diseases. The human malaria parasite Plasmodium falciparum achieves this by varying expression between members of the multi-copy var gene family. While significant progress has been made in recent years to identify factors that determine whether an individual var gene is active or silent, how switching between members of the family is coordinated remains a mystery. Previous work has shown that switching is not random, but rather is coordinated to result in rising and falling populations of parasites expressing single surface antigens. Here we provide evidence that one specific, highly conserved var gene occupies a unique position within the switching network, fulfilling a prediction made by mathematical models derived from population switching patterns. These data provide the first insights into the regulatory network underlying antigenic variation by malaria parasites.


Published in the journal: . PLoS Genet 11(5): e32767. doi:10.1371/journal.pgen.1005234
Category: Research Article
doi: https://doi.org/10.1371/journal.pgen.1005234

Summary

Many eukaryotic pathogens avoid the immune system of their hosts by switching expression between genes encoding their exposed surface antigens. This process, called antigenic variation, is key to the ability of these organisms to cause long-term, chronic infections and represents a major virulence determinant for many infectious diseases. The human malaria parasite Plasmodium falciparum achieves this by varying expression between members of the multi-copy var gene family. While significant progress has been made in recent years to identify factors that determine whether an individual var gene is active or silent, how switching between members of the family is coordinated remains a mystery. Previous work has shown that switching is not random, but rather is coordinated to result in rising and falling populations of parasites expressing single surface antigens. Here we provide evidence that one specific, highly conserved var gene occupies a unique position within the switching network, fulfilling a prediction made by mathematical models derived from population switching patterns. These data provide the first insights into the regulatory network underlying antigenic variation by malaria parasites.

Introduction

Mutually exclusive gene expression, whether selective expression of either the maternal or paternal allele in a diploid organism, the inactivation of an entire sex chromosome during dosage compensation, or the expression of a single gene while silencing all others within a multi-copy gene family, remains one of the most intriguing phenomena in the study of gene expression. Maintaining gene exclusivity is obligatory for proper function of several systems including the regulation of mating-type switching in fission and budding yeast [1], the decision between classes in immunoglobulin switching [2], odorant receptor discrimination within the olfactory system in both vertebrate and invertebrate animals [3], and in X-chromosome inactivation during female mammalian development [4]. Although the intrinsic mechanisms that govern choice, activation and silencing differ remarkably in each system, epigenetic regulation appears to consistently play a part in maintaining mutual exclusivity.

The maintenance of mutually exclusive gene expression is also a key component of the process of antigenic variation employed by many pathogenic organisms that cause chronic, persistent infections [5]. Eukaryotic pathogens including Giardia [6,7], Babesia [8], African trypanosomes [9], and malaria parasites [10] all avoid clearance by the antibody response of their mammalian hosts by continuously altering the surface antigens exposed to the immune system. The genomes of these organisms contain large, multi-copy gene families with each family member encoding a variable form of the surface antigen. Mutually exclusive expression of these genes ensures that only a small portion of the parasites’ repertoire of potential surface antigens is exposed at any time, thereby limiting the infected host’s ability to generate an effective antibody response. Further, by continuously switching which gene is expressed, the parasites can avoid antibodies made earlier in the infection or during previous infections. Thus unlike most examples of mutually exclusive expression from higher eukaryotes in which choice of the active gene is part of terminal differentiation and therefore permanent, for the gene families involved in antigenic variation, activation and silencing are reversible, thereby adding an additional level of complexity to the regulatory system. For switching to occur, a new gene must be chosen for activation while the previously active gene must be simultaneously silenced, thus requiring a mechanism of coordination between different members of the family. In addition, in many instances the switching process does not appear to be entirely random, resulting in populations of millions of individual cells that rise and fall in waves of parasitemia over the course of an infection [11]. The molecular mechanisms that control both activation and silencing of individual genes as well as coordination of the switching process remain virtually entirely undefined.

Antigenic variation mediated by mutually exclusive gene expression is a key component of the lifestyle employed by the causative agent responsible for the most severe form of human malaria, the protozoan parasite Plasmodium falciparum. P. falciparum has a multi-gene family called var that encodes the primary antigenic determinant displayed on the surface of infected erythrocytes, a protein called P. falciparum erythrocyte membrane protein-1 (PfEMP1) [1214]. The parasite inserts PfEMP1 into the membrane of the infected erythrocyte during asexual development, thereby extended the hyper-variable portion of the protein into the extracellular space where it interacts with a broad range of host cell receptors displayed on the endothelium of blood vessels, including EPCR [15], CD-36 [16] and the placental specific ligand chrondroitin sulfate A (CSA) [17]. The interactions between PfEMP1 and these receptors enable the parasites to tightly adhere and sequester within the deep tissue capillary beds thereby avoiding the peripheral circulation and destruction by the spleen. The genome of P. falciparum possesses 60 var genes interspersed throughout thirteen of the fourteen chromosomes. They are primarily found within the sub-telomeric regions, but approximately a third of the family resides within the central regions of the chromosomes, generally as tandemly arranged arrays. Expression of the var gene family operates in a mutually exclusive manner such that only one gene expresses PfEMP1 over many cycles of asexual replication and the other 59 remain transcriptionally silent, thereby avoiding exposure of the encoded proteins to the host’s immune system [18]. Individuals with a healthy immune system can mount a robust antibody response against the surface-exposed PfEMP1, however through expression switching, sub-populations of parasites arise expressing a different var gene, resulting in antigenic variation and a persistent infection typified by successive waves of parasitemia.

Significant progress has been achieved in recent years in understanding many aspects of the molecular basis of var gene activation and silencing. Changes in the transcription state of a var gene do not appear to involve any alterations at the DNA sequence level or to require changes in the presence or absence of typical transcription factors. Thus the process meets the classical definition of an epigenetic mechanism. Silent var genes are found in a state of condensed chromatin and known components of heterochromatin appear to be necessary for maintenance of var gene silencing [1922]. Histone marks generally associated with active or silent chromatin in higher eukaryotes are similarly distributed at active or silent var genes, however two marks, H3K9me3 and H3K36me3, appear to play particularly prominent roles in var gene regulation [23,24]. The silencing mark H3K9me3 seems to be devoted specifically to regulating genes that display variable expression, for example those involved in antigenic variation, alternative invasion pathways and differentiation into the sexual forms. Therefore rather than being found at many transcriptionally silent regions of the genome, it is distributed within the narrow regions of the genome where these genes reside [22,25]. Similarly, the mark H3K36me3 is found primarily at the multi-copy gene families that display mutually exclusivity, however unlike H3K9me3, this mark is found at both active and silent genes [26,27]. Characterization of these marks and their distribution within members of the var gene family represents an important step in gaining an understanding of how this gene family is regulated. However, the mechanism underlying expression switching and thus how the individual members of each family are integrated into a single, coordinated unit, remains a mystery.

Although the mechanism by which P. falciparum is able to maintain the mutual exclusive nature of the var multi-copy family remains an enigma in the malaria field, several lines of evidence suggest that switching is not random and that a hierarchy exists in the choice of which genes become activated in the event of a switch. Several studies have shown that different var genes have different intrinsic switching rates [2830]. For example, once activated var genes located in central chromosomal regions are relatively stable and rarely switch in the absence of selection. In contrast, those in the subtelomeric regions of the chromosomes tend to switch much more frequently, resulting in higher “on” and “off” rates. Careful measurement of var gene switching dynamics observed in clonal parasite populations grown for several months in culture revealed a surprisingly simple switching pattern in which an initial dominant var transcript was replaced over time by one or a small number of alternative members of the family [29]. Mathematical modeling of the observed in vitro switching events, as well as population dynamics observed in experimental infections, suggested that these parasite populations were highly unlikely to be undergoing random switching. Rather, two separate mathematical models predicted that var gene switching occurs through the use of transiently activated genes that act as “switch intermediates”, thereby adding a level of uniformity and coordination to the switching process [29]. However the identity of such intermediates was not defined.

In an unrelated study, clonal parasite cultures were grown without selection for over ~ 200 generations (>1 year) and found to display a very high activation rate of a particular gene within the family called var2csa, leading the authors to suggest that expression of var2csa might represent a “default” state [31]. var2csa is a unique member of the var family that encodes a form of PfEMP1 that binds exclusively to chondroitin sulfate A (CSA) displayed on the surface of synciciotrophoblasts in the placenta [32]. Unlike most var genes, var2csa appears to be universally conserved among parasite isolates from all over the world, suggesting strong selection pressure to maintain this gene within the parasite’s genome [33]. This is surprising considering that the PfEMP1 encoded by this gene appears to be useful only when expressed in women during their first pregnancy, a relatively small portion of the human population. Further, this particular var gene is unique amongst members of the family in that it is also translationally repressed and thus frequently does not express PfEMP1 even when transcriptionally activated [31,34,35]. Even more intriguing, transcripts from this gene are frequently detected in non-pregnant individuals [36,37], an observation that is puzzling given the presumed role of the gene in placental binding. These observations suggest that this gene might have an alternative function beyond simply encoding a unique form of PfEMP1.

In previous work, we also observed the specific upregulation of var2csa upon manipulation of chromatin marks specific to var genes and telomeres [27]. Here, we extend these findings and show that var2csa occupies a unique position within the var switching network. Specifically, manipulation of histone modifications found within chromatin surrounding var genes using both genetic and chemical means results in the transcriptional activation of var2csa. Activation of var2csa coincides with the simultaneous silencing of other members of the family, indicating that mutually exclusive expression was maintained and thus that the induction of var2csa is indeed a “true” switching event. This activation was specific to the conserved var2csa locus on chromosome 12 and did not extend to a second copy located at a different chromosomal position within the genome, even though both copies contain virtually identical regulatory domains. This indicates that var2csa activation involves coordination at the level of the entire genome rather than simply the sequence dependent recruitment of transcriptional activators to the UpsE-type regulatory region. These data suggest that var2csa displays many of the characteristics of a previously predicted switch intermediate and that its function likely extends well beyond simply encoding a conserved form of PfEMP1. In addition, this work provides clues as to how overall var gene switching events are coordinated as well as the first example of a chemical method to manipulate var gene expression patterns.

Results

Disruption of PfSET2 recruitment by RNA pol II induces activation of var2csa

Recent work showed that similar to H3K9me3, the histone mark H3K36me3 is deposited primarily on chromatin associated with multi-copy gene families, including both active and silent var genes, but not on the vast majority of other regions of the P. falciparum genome [26,27]. Consistent with a specific role for the H3K36me3 mark in regulating variant gene expression, knocking out PfSET2, the histone methyltransferase that deposits the H3K36me3 mark, did not have a significant effect on parasite growth but led to leaky expression of all var genes, thus implicating a role in maintaining mutually exclusive expression [26]. We previously showed that PfSET2 binds directly to the C-terminal domain (CTD) of RNA polymerase II, providing a mechanism for its recruitment to specific regions of the genome [27]. Using in vitro co-immunoprecipitation assays, we identified the region of PfSET2 that interacts with the CTD (called the SET2-RNA pol II Interaction region or PfSRIR, Fig 1A) [27]. We further validated the function of this domain by creating a “dominant-negative” construct that consisted of only the PfSRIR. We hypothesized that this truncated version of PfSET2 would compete with the endogenous protein for binding to RNA pol II, thereby reducing recruitment without affecting actual enzyme levels. As predicted, over-expression of the PfSET2 dom-neg resulted in profound changes in var gene expression patterns [27]. Surprisingly however, in multiple independent transfections, over-expression of the dominant-negative construct did not lead to random var gene switching or de-repression of multiple var genes, but rather consistently resulted in the specific activation of the single, conserved gene var2csa. Over-expression of firefly luciferase using the same methodology had no effect on var gene expression. Similar, independent experimental results are shown in Fig 1B.

Effect of over-expression of PfSET2 dom-neg on <i>var</i> gene expression.

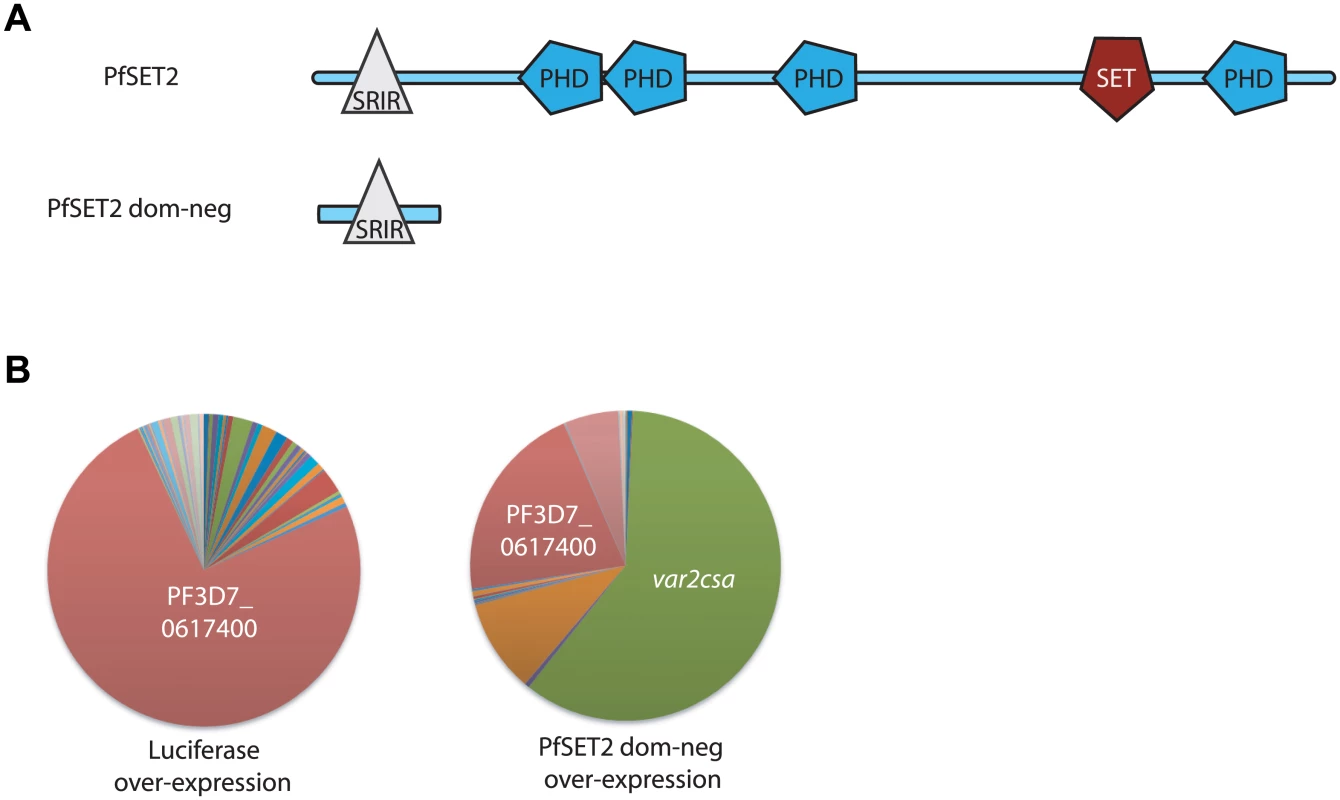

Fig. 1. Effect of over-expression of PfSET2 dom-neg on var gene expression.
(A) Schematic diagram of the domain structure of PfSET2. The top image shows the conserved domains identified using SMART (Simple Modular Architecture Research Tool, http://smart.embl-heidelberg.de). PHD domains are shown as blue polygons while the methyltransferase domain (labeled SET) is shown in red. The SET2 Rpb1 Interacting Region (SRIR) is shown as a white triangle. (B) var gene expression is shown as a pie-chart, with each slice of the pie representing the fraction of the total var mRNA pool transcribed from each var gene. The left chart shows the var gene expression pattern in a population over-expressing firefly luciferase. This is unchanged from the untransfected population and the annotation number of the dominant gene is shown in white text. The chart on the right shows the var gene expression pattern in a population after over-expression of the PfSET2 dominant negative construct for 6 weeks. var2csa (PF3D7_1200600, shown in green) has become the dominant transcript. Individual copy number values for each transcript are shown in S1 Fig.

While most members of the var gene family are highly variable when compared between parasite lines [38,39], var2csa is conserved among isolates from all over world [33]. It is also unusual in that it has a unique promoter (called UpsE) and is translationally controlled by the presence of a repressive upstream open reading frame within the 5’ leader of its transcript [34,35,40,41]. Additionally, although var2csa transcripts appear to only be actively translated into PfEMP1 by parasites infecting first-time pregnant women, var2csa transcripts have also been found in isolates retrieved from men and non-pregnant women infected with P. falciparum [36,37]. The transcripts appear to not be translated in these individuals and their significance is not understood.

To further understand the upregulation of this unusual var gene in response to over-expression of the PfSET2 dom-neg, we conducted a more detailed analysis of its activation. In these experiments, parasites were stably transfected with plasmids encoding either the PfSET2 dom-neg or a control plasmid expressing firefly luciferase. For transgene expression, we employed the expression system originally described by Epp et al [42]. This system utilizes a bidirectional promoter to drive expression of both the transgene (either the PfSET2 dom-neg or luciferase) and the drug selectable marker blasticidin-S-deaminase (bsd). In cultures of transfected parasites, the copy number of the plasmid can be manipulated by altering the concentration of blasticidin in the culture medium. When blasticidin concentrations are increased, parasites are selected that carry an increased copy number of the plasmid, thereby increasing expression levels of both the bsd cassette and the transgene. In this way, expression levels of the transgene can be controlled.

As previously reported, when grown under low blasticidin concentrations (2 μg/ml), expression levels of the transgene are low, and we detect little change in var gene expression patterns in parasites transfected with either construct. However growth under high blasticidin concentration (10 μg/ml) selected for increased plasmid copy number, high levels of transgene expression and induction of var2csa expression in the parasites over-expressing the PfSET2 dom-neg (Fig 1B and [27]). To investigate how quickly var2csa activation occurs, we sampled cultures every 2 weeks after shifting the cultures from 2 μg/ml to 10 μg/ml and determined the var gene expression profile by Q-RT-PCR using the method originally described by Salanti et al. [43]. A representative time course of activation is shown in Fig 2A. Induction of var2csa was easily detectable as early as 2 weeks, becoming second in abundance to only the previously dominant transcript. var2csa consistently became the dominant var gene after six weeks of drug pressure although the var gene that was initially dominant was still expressed at relatively high levels within the population. Continued monitoring of the var gene expression pattern for an additional three months showed that the initial dominant var gene was no longer strongly expressed and that var2csa had become the only highly expressed var gene in this population of parasites. The dominance of var2csa further increased upon exposing the cultures to even higher concentrations of blasticidin (20 μg/mL) (Fig 2B). In the line over-expressing luciferase, no change in the dominantly expressed var gene was detected even after 6 months of selection under 10 μg/ml blasticidin, although var2csa expression was eventually detectable in this population (Fig 2C). This lower level of var2csa activation is reminiscent of that previously reported by Mok et al. [31]. These results suggest in response to over-expression of the PfSET2 dom-neg, all of the parasites in the culture are switching to var2csa at an accelerated rate, resulting in the eventual dominance of this gene in the population. Importantly, there is no selection for VAR2CSA expression at the protein level, thus these switching events appear to represent purely a bias toward transcriptional activation of var2csa.

Dynamics of <i>var2csa</i> activation in response to PfSET2 dom-neg over-expression.

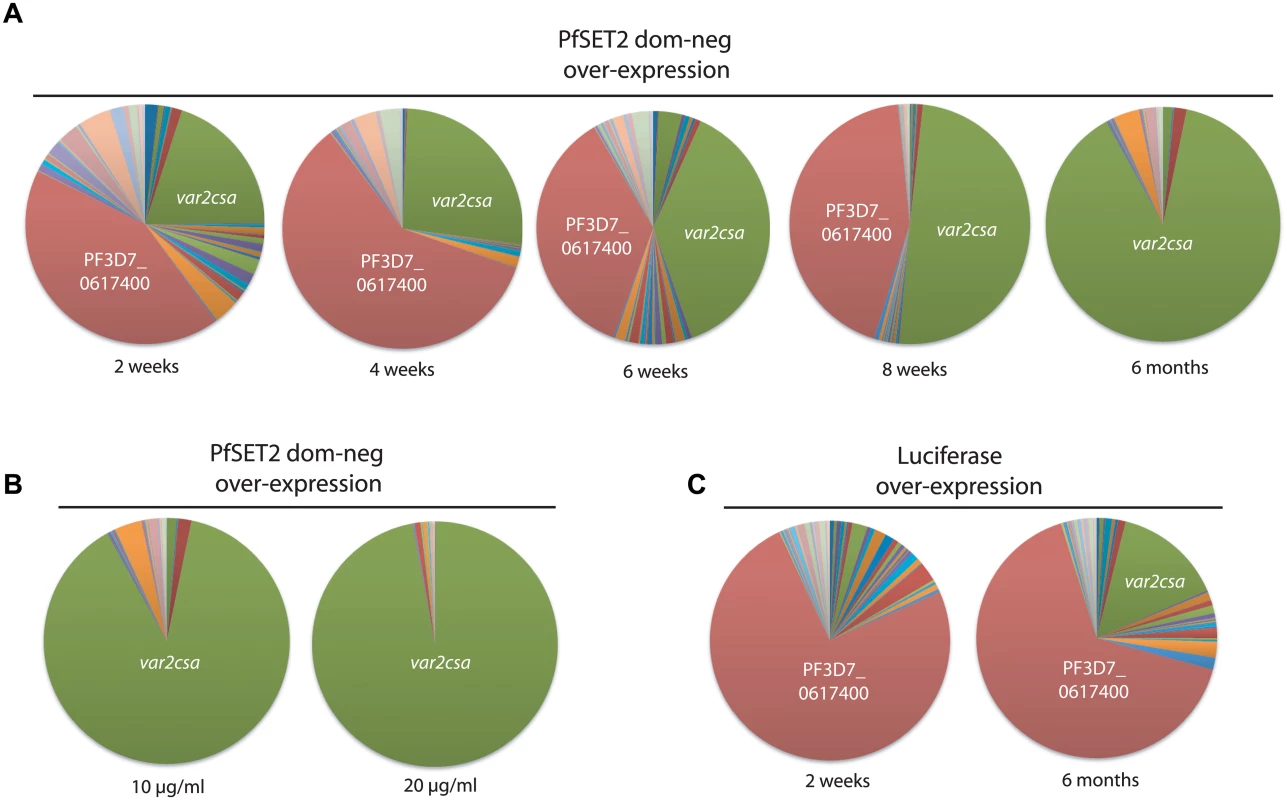

Fig. 2. Dynamics of var2csa activation in response to PfSET2 dom-neg over-expression.
(A) var gene expression profiles were determined at 2 week intervals after induction of PfSET2 dom-neg over-expression. The total var gene transcript pool is represented as a pie chart, with each slice of the pie representing the fraction of the total var mRNA pool transcribed from each var gene. In this population of parasites, the var gene PF3D7_0617400 (shown in red) was initially dominant, however over time it is replaced by var2csa (shown in green). (B) The var gene pattern in response to two different levels of PfSET2 dom-neg over-expression. Increasing the selection pressure from 10 μg/ml to 20 μg/ml results in even greater dominance of the var2csa message as a portion of the total var mRNA pool. (C) In response to luciferase over-expression, the var gene pattern does not change substantially over 6 months, although activation of var2csa is detectable. Individual copy number values for each transcript are shown in S2, S3 and S4 Figs.

Activation of var2csa by over-expression of the PfSET2 dom-neg is independent of the previously active var gene

In our previous experiments, we found that over-expression of the PfSET2 dom-neg construct could induce switching of expression from one var gene to var2csa within a population that was relatively homogenous at the time the experiment was initiated. However, in the absence of any manipulation, different subclones of parasites frequently display very different switching rates resulting in the activation of different members of the var gene family. What influences these different switching dynamics is not clear, although the subtype of the var gene that is initially dominant has been proposed to influence switching rates [28,44]. To determine if var2csa activation was broadly true for parasites initially expressing any var gene, we studied the effect of PfSET2 dom-neg over-expression on populations of parasites that were largely heterogeneous and in which no particular var gene was dominantly expressed. Similar to previous experiments, four weeks after initiating PfSET2 dom-neg over-expression var2csa expression was clearly induced. In this case, since no other var genes were dominant in this population, var2csa became the most highly expressed var gene after only a month of 10 μg/ml blasticidin treatment (Fig 3). Over-expression of luciferase did not result in switching to var2csa, although switching to other var genes was evident as has been previously observed [28]. These data suggest that regardless of which var gene is initially expressed, parasites exposed to PfSET2 dom-neg over-expression switch with high frequency to expressing var2csa.

Induction of <i>var2csa</i> expression in response to PfSET2 dom-neg over-expression in a heterogenous population expressing many <i>var</i> genes.

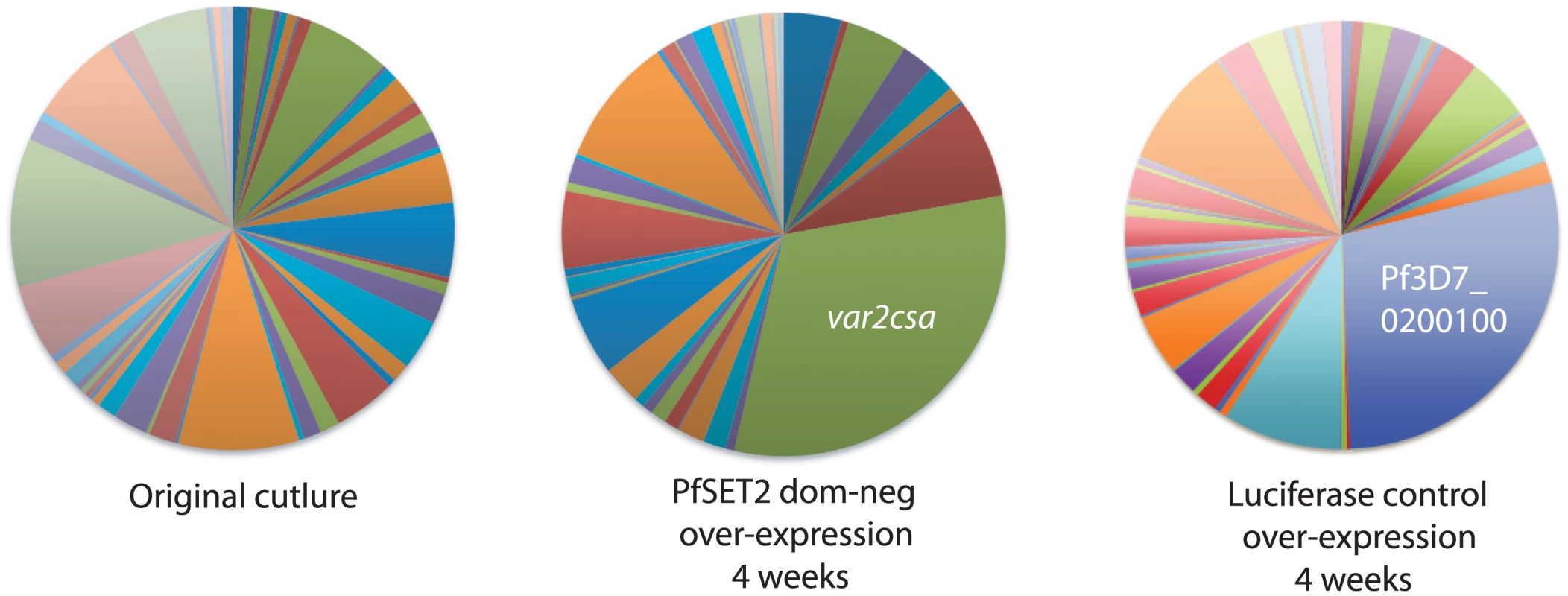

Fig. 3. Induction of var2csa expression in response to PfSET2 dom-neg over-expression in a heterogenous population expressing many var genes.
The original population expressed many var genes and there was no single gene that was dominant (left panel). After selection with 10 μg/ml blastidicin leading to over-expression of the PfSET2 dom-neg construct for 4 weeks, var gene expression began to shift to var2csa, resulting in this gene being the most highly expressed gene in the population (middle panel). Similar over-expression of luciferase did not lead to expression of var2csa (right panel), while a different var gene became somewhat highly expressed, indicating that switching can occur. Individual copy number values for each transcript are shown in S5 Fig.

Exposure of parasites to a histone methyltransferase small-molecule inhibitor also induces upregulation of var2csa

Our experiments with the PfSET2 dom-neg indicated that genetic manipulation of an epigenetic factor involved in the regulation of var genes, specifically recruitment of the enzyme that deposits the H3K36me3 mark, could provide insight into the dynamic nature of transcriptional regulation of the var family. Therefore we reasoned that chemical inhibitors known to affect histone modifier activity in other organisms could potentially have a similar impact on var gene expression. Our initial experiments involved obtaining IC50 values of known inhibitors using a SYBR Green-based parasite viability assay. Two subclones of NF54 were exposed for 72 hours to a series of compounds that included three histone methyltransferase inhibitors—BIX01294, chaetocin and UNC0321—a histone acetyltransferase inhibitor, Garcinol, and the histone deacetylase inhibitor trichostain A (TSA). Chloroquine, a drug known to not have an effect on var gene regulation, and parasites not treated with inhibitors, were used as controls. IC50s were determined for all compounds and are shown in Table 1. As an initial screen to investigate any effects the inhibitors had on var gene expression, we exposed a clone of NF54 that displays a relative uniform var gene expression pattern to two-thirds of the IC50 concentrations for 2 weeks and assayed for any changes in var gene expression. Following the same procedure as established for the PfSET2 dom-neg experiments, cultures were synchronized for ring stages, RNA isolated and cDNA synthesized. var gene expression patterns were then analyzed by Q-RT-PCR. Among all compounds, parasites treated with the histone methyltransferase inhibitor chaetocin showed a nearly identical upregulation of var2csa as previously observed after over-expression of the PfSET2 dom-neg (Fig 4A). To further investigate the effect of chaetocin treatment, we conducted a time course of exposure using two subclones of NF54. After approximately six weeks of exposure to chaetocin, var2csa became the dominant var transcript expressed by the population, with the initial dominant var gene having lower transcript levels in both NF54 subclones (Fig 4B).

Induction of <i>var2csa</i> expression by treatment with a histone methyltransferase inhibitor.

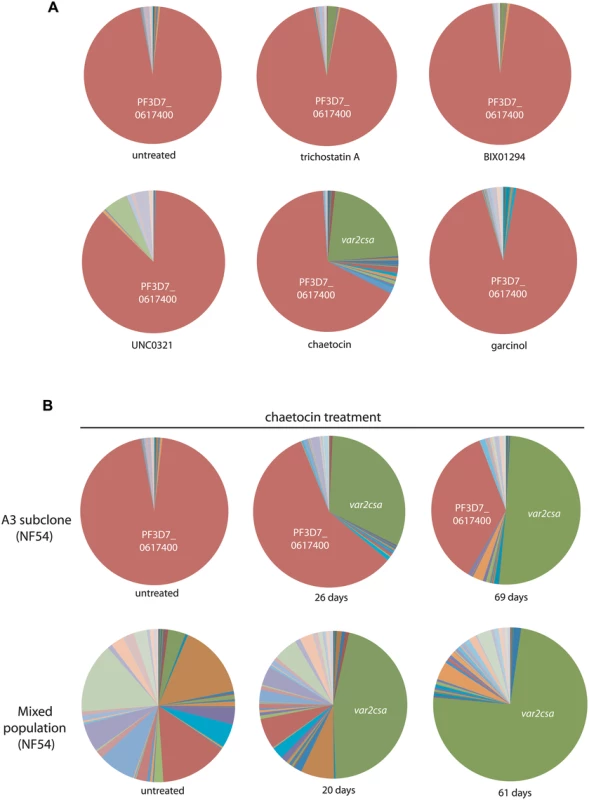

Fig. 4. Induction of var2csa expression by treatment with a histone methyltransferase inhibitor.
(A) The A3 subclone of the NF54 line of P. falciparum was treated for 2 weeks with sub-IC50 concentrations of various compounds known to inhibit histone modifiers in high eukaryotes. After 2 weeks of exposure, the var gene expression pattern was determined for each population and shown as a pie chart. In all cases the var gene that was originally dominant in this population (PF3D7_0617400, shown in red) remained dominant, however the population exposed to chaetocin displayed a significant proportion that had switched to var2csa (green). (B) Two subclones of NF54 (A3 and a mixed population) were cultured in the presence of chaetocin and their var gene expression patterns determined after varying lengths of time. In both cases, var2csa became the dominant var transcript detectable in the population. Individual copy number values for each transcript are shown in S6 Fig.

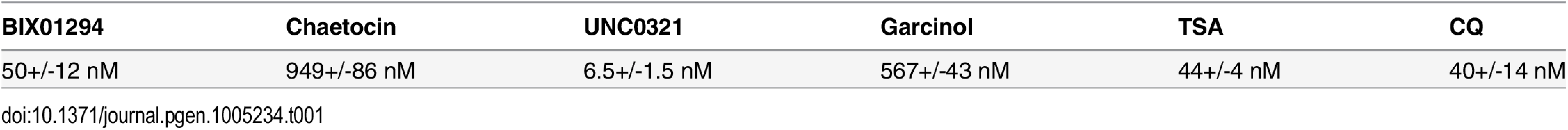

Tab. 1. Calculated IC<sub>50</sub> values of BIX-01294, chaetocin, UNC0321, Garcinol, trichostatin A (TSA), and chloroquine (CQ) treated NF54 parasites.
Calculated IC&lt;sub&gt;50&lt;/sub&gt; values of BIX-01294, chaetocin, UNC0321, Garcinol, trichostatin A (TSA), and chloroquine (CQ) treated NF54 parasites.

Chaetocin is a su(var)3–9 methyltransferase inhibitor that inhibits di- and trimethylation of H3K9 in human cells and has been used to study heterochromatin effects on gene expression in numerous cancer studies [45]. Bioinformatic analysis as well as enzymatic assays have identified PfSET3 (PF3D7_0827800) as possessing the highest homology within the su(var)3–9 family in P. falciparum and displaying the appropriate methyltransferase activity, thus making it the most likely target of chaetocin [46]. It is perhaps not surprising that of all the inhibitors used in our study, the cultures that were treated with chaetocin were the only cultures that displayed changes in var gene expression patterns. H3K9me3, the mark targeted by chaetocin, is similar to H3K36me3 in that it is found at limited sections of the genome, in particular var genes and telomeric regions [22,25]. By treating with sub-IC50 concentrations, it is likely that PfSET3 activity was partially inhibited rather than being abolished, in a manner similar to the effect of PfSET2 dom-neg over-expression on PfSET2 activity. Thus in both experimental approaches, partial inhibition of the enzymes responsible for the deposition of epigenetic marks specific to variant antigen encoding gene families resulted in induction of var2csa expression. These data again suggest that var2csa occupies a unique position in the var gene switching hierarchy. In both the PfSET2 dom-neg experiments and after chaetocin treatment we did not observe any substantial changes in the quantity of cellular H3K9me3 or H3K36me3 by Western blotting analysis. This is likely because the inhibition of methyltransferase activity is partial and subtle, and in the case of H3K9me3, complete inhibition of H3K9me3 deposition could have detrimental effects on telomere stability and thus parasite viability.

Induction of var2csa by genetic and pharmacological methods is specific to the chromosome 12 locus

Since the experiments involving both PfSET2 dominant-negative over-expression and chaetocin treatment were done in subclones of the NF54 isolate of parasites, we were curious as to whether upregulation of var2csa by these two methods could also be detected in an alternative parasite strain, and further whether this effect was specific to the genomic position on chromosome 12. To address these questions, we sought to perform the same genetic and chemical experiments on a parasite line derived from a distinct geographical isolate. For these experiments we chose the Central American isolate HB3. In addition to the availability of the complete sequence of var2csa, HB3 is one of a handful of P. falciparum isolates known to possess multiple but distinct var2csa genes at different chromosomal loci [47,48]. Like NF54, HB3 isolates have a var2csa locus mapped to the subtelomeric region of chromosome 12, with the second var2csa copy located in a subtelomeric region of chromosome 1. Both var2csa genes possess similar regulatory regions, including the upstream open reading frame previously shown to act as a translational repressor (Broad Institute P. falciparum database), and both were shown to be capable of transcriptional activity [47,49]. Thus, at least at the level of DNA sequence, both genes appear to be equivalent. Given these characteristics, HB3 is an interesting isolate to investigate the effects of PfSET2 dom-neg over-expression and chaetocin treatment.

The same PfSET2 dom-neg over-expression and chaetocin treatments that were done in the subclones of NF54 were also carried out in HB3 parasites. Q-RT-PCR analysis indicated that var2csa was similarly upregulated in HB3 parasites subjected to these treatments (Fig 5A and 5B). Due to our lack of a complete primer set capable of detecting transcripts from each individual var gene within the HB3 genome, we were unable to determine what proportion of the entire var mRNA pool had been shifted to var2csa. However, all three var2csa-specific primers pairs detected a substantial upregulation, ranging from 13 to 40 fold, in response to both over-expression of the PfSET2 dom-neg and chaetocin treatment. Interestingly, in the dominant-negative experiments, only low concentrations of blasticidin (2 μg/mL) were required for var2csa upregulation, unlike in the experiments with subclones of NF54 in which var2csa activation required selection with 10 μg/ml blasticidin. Strong upregulation of var2csa was also observed in HB3 cultures that were treated with chaetocin. Interestingly, high levels of induction of var2csa were observed after ~3 weeks of dom-neg over-expression or chaetocin treatment of HB3, a more rapid response than observed with the NF54 subclones. Nevertheless, these data indicate that induction of var2csa by both methods is not specific to subclones of NF54.

Induction of <i>var2csa</i> in the parasite line HB3.

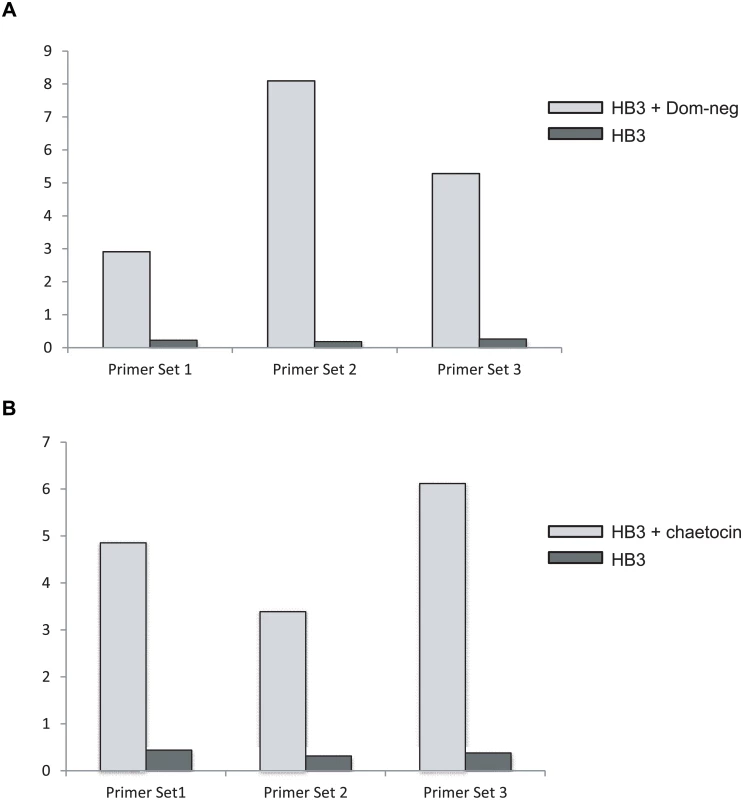

Fig. 5. Induction of var2csa in the parasite line HB3.
The expression level of var2csa in HB3 was determined by Q-RT-PCR and displayed as relative copy number as compared to seryl-tRNA synthetase. Three separate PCR primer pairs (shown in Table 2) were used that anneal at different points within the var2csa coding region. (A) mRNA expression levels of var2csa are shown before and after 3 weeks of exposure to over-expression of the PfSET2 dom-neg expression construct. B. mRNA expression levels of var2csa are shown before and after 3 weeks of exposure to chaetocin.

As mentioned above, HB3 is one of a few malaria isolates that have been shown to have more than one copy of var2csa. Since we observed that treatment of HB3 parasites yielded a similar phenotype to clones of NF54, we went on to decipher which var2csa locus is upregulated in response to manipulation of the H3K36me3 and H3K9me3 marks. We first verified that our HB3 line did indeed have two var2csa loci. Southern blots of genomic DNA detected the precise fragments predicted from the available HB3 genome sequence and previously reported by Kraemer et al and Sander et al [47,48] confirming that our HB3 isolate does indeed possess two var2csa genes. Using the complete var2csa sequences previously reported, we were able to design var2csa-specific primers that amplified across a region that contains several single nucleotide polymorphisms as well as 2 regions of extensive sequence differences. These regions could easily distinguish between transcripts from the two var2csa copies (Fig 6), thus enabling us to determine which copy is induced by our treatments. PCR amplifications using cDNA from either chaetocin treated parasites or parasites over-expressing the PfSET2 dom-neg yielded single products, and sequencing of both PCR products showed that the amplified bands were specific for the var2csa gene located on chromosome 12. It is noteworthy that the conserved var2csa copy found within the genomes of all sequenced P. falciparum lines is located at this position in the genome, suggesting that the gene activation we observe in response to PfSET2 dom-neg over-expression or chaetocin treatment is specific for this conserved locus rather than simply the sequence of the var2csa regulatory region. In other words, these treatments do not simply activate the UpsE promoter, but rather induce expression of the specific var2csa locus found on chromosome 12. Previous work found that a recombination event that altered the subtelomeric region of chromosome 12 downstream of var2csa resulted in persistent activation of this gene, further suggesting that this chromosomal locus possesses additional regulatory capacity [50].

Induction of <i>var2csa</i> in HB3 specifically activates the locus on chromosome 12.

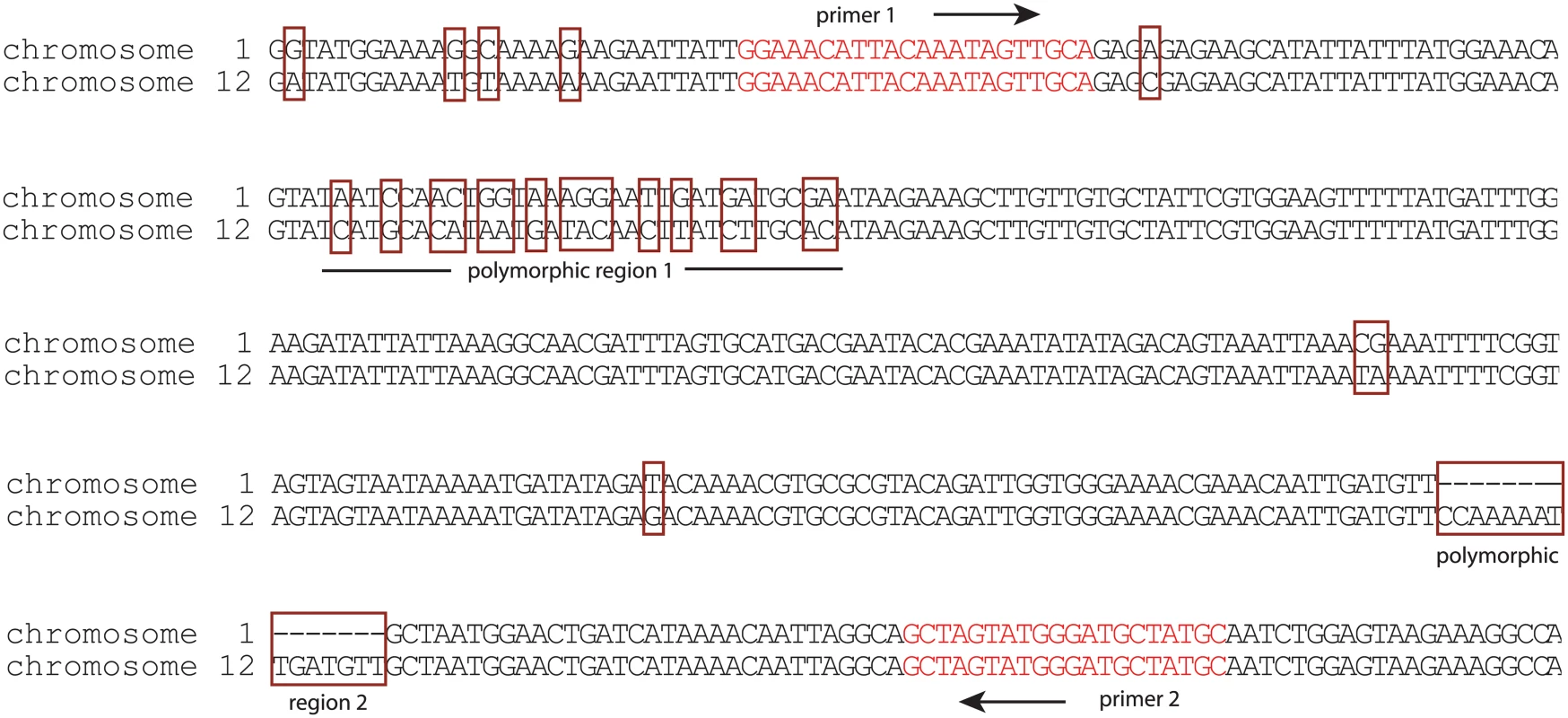

Fig. 6. Induction of var2csa in HB3 specifically activates the locus on chromosome 12.
The nucleotide sequences of the two copies of var2csa found within the genome of HB3 are shown. Of note are the polymorphisms (surrounded by red boxes) that easily distinguish the gene found on chromosome 1 from that found on chromosome 12. In particular, two highly polymorphic regions are labeled. The location and sequence of PCR primers (red text) that amplify across these polymorphic regions are shown. Sequencing of this PCR product after induction of var2csa expression by chaetocin treatment or over-expression of PfSET2 dom-neg detected only the locus on chromosome 12.

Activation of var2csa is a true switching event and not a result of simply de-silencing the var2csa locus

The induction of var2csa expression in response to PfSET2 dom-neg over-expression or chaetocin treatment was pronounced and reproducible. While it was apparent that var2csa expression was upregulated, it was not clear if this represented simply de-silencing of the var2csa locus without switching, infrequent switching to var2csa followed by selective outgrowth of those parasites that had switched, or frequent and repeated switching to var2csa by most or all parasites within the population. To address these questions, we repeated the chaetocin treatments using a previously derived NF54 line called DC-J in which exon 1 of a var gene on chromosome 2 was replaced with the blasticidin S deaminase (bsd) selectable marker using double crossover integration [51]. Growth of these parasites under blasticidin pressure results in selection of a population that only expresses the bsd containing var locus and has silenced the rest of the var gene family. If chaetocin treatment simply leads to de-silencing of var2csa in the absence of switching, treatment of DC-J with both blasticidin and chaetocin should result in simultaneous expression of both bsd and var2csa. If chaetocin treatment doesn’t influence switching but rather simply selects for growth of parasites that express var2csa, then blasticidin selection should kill parasites that have switched away from the bsd encoding var locus and prevent outgrowth of var2csa expressing parasites. In this case, treatment of DC-J with both blasticidin and chaetocin will not alter var gene expression patterns and bsd will remain the dominantly expressed var gene. Lastly, if chaetocin treatment induces frequent, “true” switching to var2csa, parasites that have switched will be killed by blasticidin and thus var2csa will not become the dominantly expressed var gene. Further, if many or most of the parasites in the culture are induced to switch to var2csa in response to chaetocin treatment and consequently are killed by blasticidin, the growth rate of the culture should be severely reduced, and eventually the population should die out. Given the time course experiments shown in Fig 2, alterations in growth rates should be detectable within 6 weeks of first exposure to chaetocin.

To address these questions, we first verified that the DC-J parasites grown in the presence of blasticidin were indeed exclusively transcribing the var locus encoding the bsd selectable marker. To assay var gene expression patterns, we again utilized Q-RT-PCR using the previously described var gene primer set as well as primers specific to bsd. As expected, under blasticidin selection the bsd containing locus was by far the dominant var transcript detected. The culture was then divided into four different flasks for testing different conditions over a total of six weeks. The four cultures consisted of (i) DC-J parasites maintained under blasticidin pressure as control, (ii) chaetocin treated DC-J parasites (iii) DC-J without any treatment to measure the default var switching rate, and (iv) DC-J parasites selected with both blasticidin and chaetocin (Fig 7). The bsd containing var locus remained the dominant transcript in the culture that was maintained under blasticidin selection throughout the duration of the experiment (Fig 7A). Similar to the experiments performed with the NF54 cultures, var2csa became the dominant transcript after six weeks of treatment with chaetocin alone (Fig 7B). Interestingly, after a month in culture in the absence of any selection, var2csa transcripts were detectably expressed alongside the bsd gene in the DC-J parasites that were not undergoing any treatment (Fig 7C). Further analysis after two more weeks in culture detected another prominent gene, thus three genes—bsd, var2csa and PF3D7_071200, were now highly expressed in the population, indicating that in the absence of blasticidin selection, this population is undergoing frequent switching. The detection of var2csa transcripts in these cultures is reminiscent of the study performed by Mok et al in which they similarly detected frequent switching to var2csa expression in unselected cultures leading them to propose that var2csa represents a “default” state in the switching pattern [31].

<i>var2csa</i> expression in response to chaetocin treatment is a true switching event and maintains mutually exclusive expression.

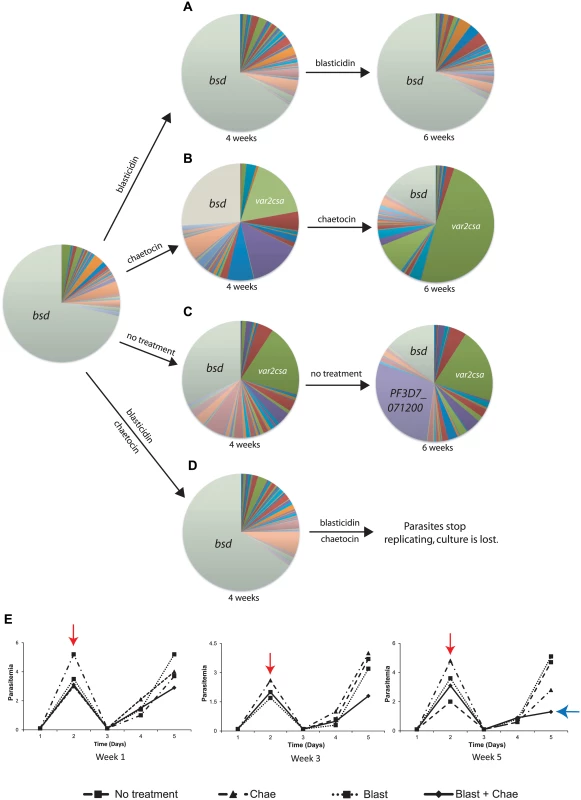

Fig. 7. var2csa expression in response to chaetocin treatment is a true switching event and maintains mutually exclusive expression.
The transgenic parasite line DC-J contains a modified var gene that encodes the drug resistance marker blasticidin-S-deaminase (bsd). Thus upon selection with blasticidin, these parasites are forced to express bsd and consequently silence the rest of the var gene family. DC-J parasites were grown under different conditions and the var gene expression profile determined by Q-RT-PCR and displayed as pie charts. (A) Growth of DC-J in the presence of blasticidin results in stable expression of bsd which remains the dominant var gene transcript detectable. (B) Growth of DC-J in the absence of blasticidin but in the presence of chaetocin results in induction of var2csa expression. var2csa has become the dominant var gene expressed by this population after 6 weeks of exposure to chaetocin. (C) Growth of DC-J parasites in the absence of blasticidin selection results in switching to several other var genes, including var2csa. After 6 weeks of growth in the absence of selection, both var2csa and a third var gene (PF3D7_071200, shown in purple) have become prominently expressed. (D) DC-J grown in the presence of both blasticidin and chaetocin results in stable expression of bsd for 4 weeks, after which the population fails to grow and eventually dies out. (E) Parasite growth charts for populations treated with blasticidin, chaetocin, blasticidin + chaetocin or untreated. Parasitemias were calculated daily by blood smear and three weeks are shown. Populations were allowed to replicate until they reached ~3% parasitemia, at which time the population density was reduced to 0.5% (red arrow) and the culture allowed to continue. By the end of week 5, the population exposed to both blasticidin and chaetocin failed to replicate efficiently (blue arrow) and the population died out by week 6. Individual copy number values for each transcript are shown in S7S11 Figs.

The DC-J parasites grown in the presence of both blasticidin and chaetocin yielded a particularly informative phenotype. Parasites exposed to both drugs grew at a similar rate as the other three cultures in the early weeks of the experiment, however Q-RT-PCR analysis of the var gene family from RNA collected in the fourth week of growth showed that, unlike the other cultures treated with chaetocin, var2csa was not significantly upregulated in this population and the bsd gene remained dominant (Fig 7D). Continued culture of the parasites in the presence of both drugs for another two weeks showed that the growth rate began to slow significantly, with a pronounced reduction after the fifth week of exposure (Fig 7E). The poor growth of the culture and the presence of large numbers of non-replicating or dying parasites prevented us from collecting reliable gene expression data at this time point. The poor growth of the culture was not due to combined toxicity of blasticidin and chaetocin, since a similar culture in which bsd expression driven by a non-var promoter grew robustly in the presence of both drugs, and displayed the expected upregulation of var2csa (S15 Fig). We hypothesize that parasites subjected to double drug pressure are induced to switch to a expressing a different var gene, most likely var2csa, due to the presence of chaetocin but such parasites cannot survive blasticidin treatment because they no longer express the resistance marker. These experiments, along with the near homogenous expression of var2csa in parasites treated with chaetocin or the PfSET2 dom-neg for longer periods of time (Figs 2 and 4), suggest that var2csa induction in response to var-specific chromatin alterations are indeed true switching events.

Pulsing experiments with chaetocin also demonstrate disruption of var switching patterns

In the previous experiments, parasites were grown under continuous exposure to chaetocin resulting in virtually all parasites within the population switching to expression of var2csa. This indicates that manipulating the deposition of var-specific histone modifications can influence the pattern of var gene expression, in particular leading to the induction of var2csa. However it is known that epigenetic marks can influence long-term gene expression patterns, a phenomenon referred to as epigenetic memory. We were interested in how short-term exposure to chaetocin would affect longer-term var gene expression patterns. To address this question, we conducted “pulsing” experiments in which cultures were subjected to chaetocin treatment for two weeks as outlined previously, then the var switching pattern was assayed at two and six weeks after chaetocin removal. A representative example is shown in Fig 8. We observed that even after the removal of chaetocin from the culture media, induction of var2csa continued, though at a somewhat slower rate than observed in cultures that were exposed to chaetocin throughout the duration of the experiment. These results confirm that altering the deposition of epigenetic marks at var genes, even temporarily, can disrupt the long-term switching pattern of the var gene family.

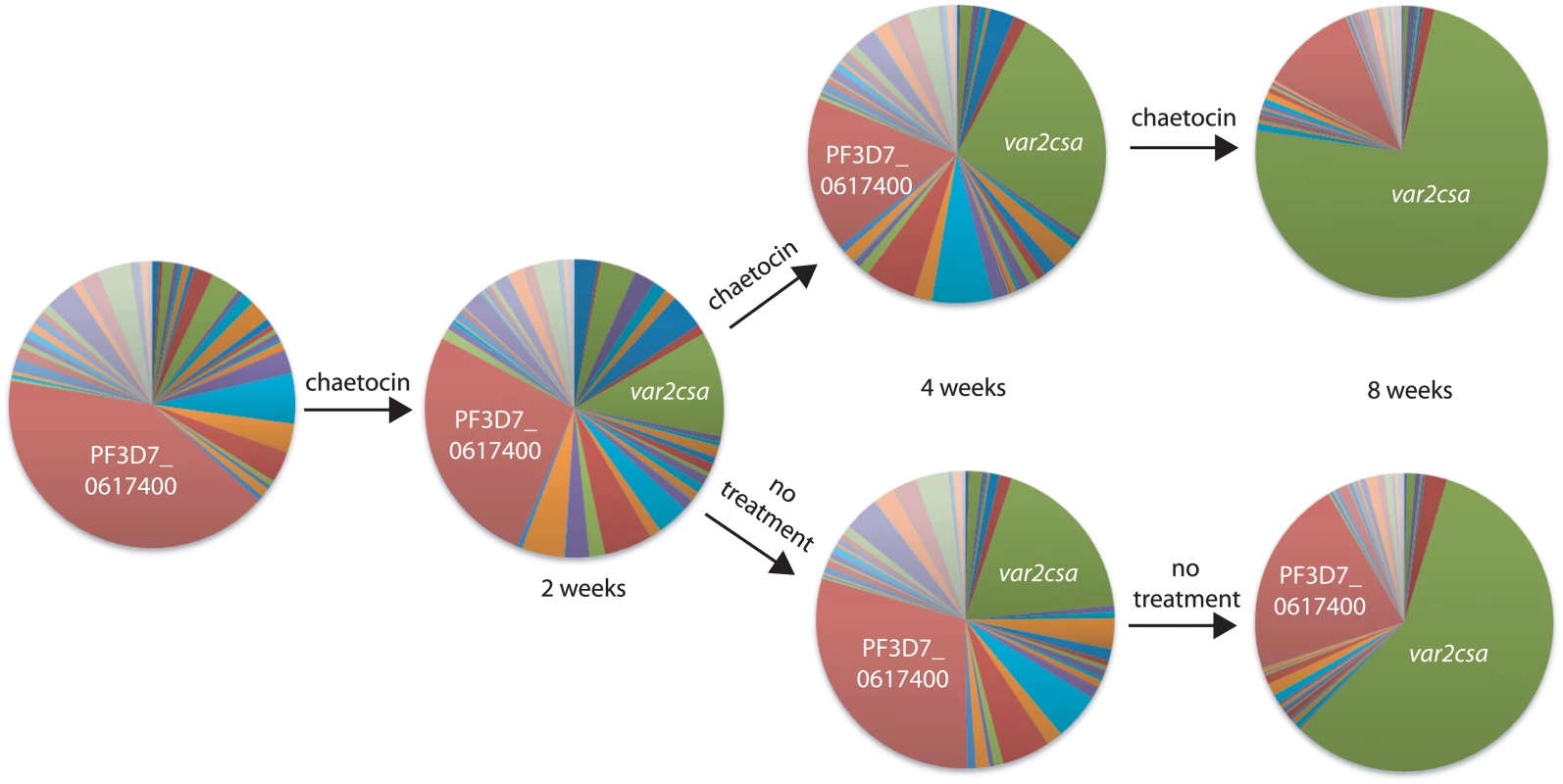

Short-term exposure to chaetocin leads to long-term induction of <i>var2csa</i> expression.
Fig. 8. Short-term exposure to chaetocin leads to long-term induction of var2csa expression.
Q-RT-PCR was used to determine var gene expression patterns and displayed as pie charts. Prior to exposure to chaetocin, the gene PF3D7_0617400 (red) was most highly expressed within this population of parasites (left most pie chart). These parasites were exposed for two weeks to chaetocin then divided into two subcultures, one which was maintained in the presence of chaetocin (top) while the other was grown in the absence of chaetocin (bottom). After 8 weeks of growth, var2csa (green) had become the dominant var transcript in both populations. Individual copy number values for each transcript are shown in S12S14 Figs.

Discussion

While computational analyses of the P. falciparum genome reveal a relative under-representation of sequence-specific transcription factors, the epigenetic marks that modify the chromatin structure of model eukaryotes are also found within the Plasmodium genus. Epigenetic regulation in P. falciparum has been demonstrated to directly impact both basic biological processes as well as many aspects of host-parasite interactions that lead to disease, including antigenic variation. Of the catalog of critical histone marks found in P. falciparum, histone lysine methylation has recently emerged as one of the principal regulatory mechanisms involved in the activation, silencing, and maintenance of malaria virulence gene expression, including the var gene family [23,2527]. The chromatin surrounding active genes in P. falciparum, including the single active var gene in the var repertoire, is typically tri-methylated at H3K4, which is likely catalyzed by the histone methyltransferase PfSET1 [52]. Two other histone methylation marks, H3K36me3 and H3K9me3 that are deposited by PfSET2 and PfSET3 respectively, are enriched only at telomeric regions and chromosomal regions that contain the variant antigen encoding gene families, including var [23,2527]. This differs from other eukaryotic systems in which these marks tend to be distributed throughout the genome. Biochemical and genetic analyses of the histone methyltransferases of Plasmodium show that the enzymatic domains of the proteins are relatively well conserved and likely deposit the same marks as has been established in model eukaryotes [46]. However, outside the methyltransferase domains, the remainder of the proteins bear little similarity to their orthologs in higher eukaryotes, indicating they could display very different biological functions. For example, we previously showed that PfSET2 binds to RNA pol II CTD when it is unphosphorylated, a property distinct from its eukaryotic counterparts, and demonstrated that inhibiting this interaction has a profound effect on the var gene family [27].

In the current study, we utilized both genetic and chemical methods to manipulate deposition of the H3K36me3 and H3K9me3 marks that are associated with var gene regulation. Both over-expression of the PfSET2 dom-neg construct and treatment with sub-IC50 concentrations of chaetocin were designed to down-regulate, but not knockout, the methyltransferase activities of PfSET2 and PfSET3. The intent was to destabilize epigenetic regulation of the var gene family without completely disrupting the regulatory pathway, and thereby gain insights into how expression switching is coordinated. Surprisingly both treatments led different parasite isolates to switch expression to the unique var2csa gene. The preferential activation of var2csa in these experiments was similar, although much more rapid, compared to the observations of Mok et al who also noted frequent activation of var2csa in long-term cultures [31]. These studies suggest that var2csa occupies a unique position within the overall var gene regulatory hierarchy.

Since its initial discovery as the gene that encodes the form of PfEMP1 responsible for pregnancy associated malaria [43], var2csa has been somewhat of an enigma within the var gene family. While the majority of var genes are highly variable when compared between different geographical isolates, var2csa is highly conserved and seems to be found in all parasites strains [33]. This extensive conservation includes its position within the subtelomeric region of chromosome 12 and the sequence of its promoter and upstream regulatory region. This conservation extends even to the closely related parasite P. reichenowi that infects chimpanzees [33,53]. It is the only var gene that also displays reversible translational repression through an upstream open reading frame positioned within the 5’ leader of the mRNA, thus preventing the transcripts from being translated into protein in most instances [34,35]. While the encoded form of PfEMP1 is only thought to bind to receptors within the placenta, transcripts from the gene are also detectable in men and non-pregnant women where they are not detectably translated [36,37]. It is thought that current techniques are not sensitive enough to detect random activation of individual var gene without the selective advantage conferred through cytoadherence by PfEMP1. Thus the detection of var2csa transcripts in the absence of binding to CSA suggests a function of this gene beyond simply enabling cytoadhesion of infected cells within the placenta, and the current work suggests that it could play a role in var gene switching.

Recent mathematical modeling of var gene switching patterns, both from experimental infections and from long-term cultures, have suggested that expression of the gene family could be coordinated by a mechanism that utilizes a “switching intermediate” state [29]. In other words, parasites could switch transiently to an intermediate gene, then either rapidly switch back to the original gene, or alternatively switch to a different gene within the family. The transient activation of an intermediate gene serves as a way to prevent bias in the switching process. Without a mechanism for preventing switching bias, genes that are closely linked to the previously active gene would be expected to display a significant “position effect” and be preferentially activated. In higher eukaryotes, such position effects are well known for genes that are controlled by chromatin modification and subnuclear localization, similar to var genes [54,55]. However, not only do var genes not display this type of switching bias, examination of numerous switching events in cultured parasites found that switching to closely linked genes was actually prohibited [29]. Thus the mechanism that coordinates var gene expression does indeed appear to employ a method for preventing biased activation.

In their examination of a large database of var gene switching patterns, Recker and colleagues derived two mathematical models that robustly predict how var gene expression evolves over time within a population of parasites. More importantly, these models are much better predictors of actual expression patterns than random var gene switching. In their “lattice-type” model, they predicted the existence of certain var genes that are “switched to from many other variants”. These are referred to as “sink nodes” within the var gene switching network. While this model beautifully predicts var gene switching patterns, it was purely hypothetical and the molecular basis underlying such a switching network was entirely undefined and difficult to imagine. However our experiments showing selective activation of var2csa indicate that this gene displays characteristics consistent with a predicted “sink node”. The additional characteristics listed above (extensive conservation, translational repression, unique promoter type) make this an even more intriguing proposition. For example, translational repression would prevent var2csa from inducing an antibody response if it were transiently activated during a switching event. Alternatively, it is possible that different, competing switch pathways exist, and that chaetocin treatment or PfSET2 dom-neg over-expression perturbs these pathways, resulting in activation of a default pathway leading to var2csa expression. Either way, a role for var2csa as a switching intermediate or a default pathway would explain why our experiments with chaetocin and the PfSET2 dom-neg, which artificially induce and perhaps perpetuate a switching intermediate state, result in selective switching to var2csa. It is also noteworthy that while the genome of HB3 contains two functional copies of var2csa, only the copy located at the conserved locus on chromosome 12 is activated upon over-expression of the PfSET2 dom-neg construct or chaetocin treatment, suggesting that chromosomal position as well as the sequence of the var2csa gene is important for this phenotype.

It is worth noting that in addition to var2csa, there are two other types of conserved, “strain transcendent” var genes, var1csa and the so called type 3 vars [33,48]. var1csa is particularly interesting since it appears to be a pseudogene in most if not all isolates and thus does not encode a functional protein [48,56,57]. Nonetheless it appears to be transcriptionally active and highly conserved among geographical isolates, suggesting an important function beyond encoding PfEMP1. The type 3 vars have been shown to be transcribed and translated into uniquely small forms of PfEMP1 [58,59], however whether these proteins function as cytoadhesion molecules and if so, what they bind to has not been determined. These additional conserved var genes therefore share certain characteristics with var2csa. It is tempting to speculate that all of these genes could play roles in coordinating expression of the var gene family, perhaps by acting as network “sink nodes” or through as yet undiscovered mechanisms.

The speculation that var2csa could occupy a unique position within the var switching hierarchy is provocative and unifies several unusual aspects of this unique member of the var gene family. However, alternative interpretations are possible. For example, it is possible that a signaling cascade exists that enables parasites to detect the existence of a placenta, and that our treatments somehow activate the pathway, leading to the expression of var2csa. Alternatively, it is also possible that different var genes are characterized by different inherent switching propensities and that var2csa simply has the lowest threshold for activation. Thus, by depleting components of heterochromatin across the genome, var2csa is simply the first to escape silencing and switch to the active state. Nonetheless, regardless of the interpretation of the experimental data presented here, the unique nature of var2csa clearly extends to its transcriptional regulation.

In conclusion, we provide data showing that var2csa is unique in its propensity to become transcriptionally active in response to perturbation of var specific heterochromatin. This suggests it might occupy a unique position within the var gene switching hierarchy, potentially contributing to the coordination of var gene expression patterns. This information provides a first glimpse into how all of the individual var genes present within the parasite’s genome are co-regulated to enable the parasites to perpetuate a chronic infection. In addition, this is the first demonstration of a small molecule inhibitor that can disrupt var gene regulation, thus indicating a possible avenue of investigation for malaria intervention strategies.

Materials and Methods

Ethics statement

Human blood was used for the study and was purchased from the New York City Blood Center (NYBC) for use in parasite culture. Contact of blood donors was not attempted and was not necessary for the livelihood of the study. Informed consent was not required (other than NYBC in-house protocol). The identity of the donors cannot be readily attained by the researchers and was unknown throughout the study. The blood was used for research purposes only-solely for in vitro culture of Plasmodium falciparum- and not for transfusion into humans or animals. NYBC policy states that only surplus blood will be made available for research purposes and thus this study did not compromise blood supplies. The blood purchased from NYBC was only used as a resource for propagation of malaria parasites and no data was collected with regard to the blood itself. Therefore the inclusion of women, minorities or children is not applicable. These conditions indicate (and the NIH has concluded) that the study does not qualify as human subjects research.

Parasite culture and transfection with the PfSET2 dom-neg

Both NF54 and HB3 parasite lines were cultivated following standard procedures at 5% hematocrit in RPMI 1640 medium, 0.5% Albumax II (Invitrogen), 0.25% sodium bicarbonate and 0.1 mg/ml gentamicin. All parasites were incubated in an atmosphere containing 5% oxygen, 5% carbon dioxide, and 90% nitrogen at 37°C. We utilized clonally stable NF54 bulk cultures generated by Frank et al. [28]. The subclones of NF54 as well as the HB3 isolate were transfected using DNA-loaded RBCs as described previously [60]. Briefly, parasites were loaded with 200 μg of plasmid DNA in incomplete cytomix and pulsed with a gene pulser (bio-rad). The dominant-negative version of PfSET2 was transfected alongside cultures with a control construct that encodes Firefly Luciferase as described previously [27]. Both dominant-negative and control parasites were initially cultivated in the presence of 2 μg/mL blasticidin for 42 days for the NF54 subclones but only for 14 days for HB3. Portions of the 2 μg/mL cultures were allocated to new flasks and grown in the presence of 10 μg/mL blasticidin for the time course experiments for the NF54 subclones. HB3 parasite lines were only grown at 2 μg/mL blasticidin.

Immuno-detection of H3K36me3 and H3K9me3 from isolated P. falciparum histones

Histones from NF54 parasites transfected with the PfSET2 dom-neg as well as those exposed to chaetocin treatment were extracted and purified alongside histones from respective controls as described previously [27,61]. Briefly, infected red blood cells (RBCs) were lysed by saponin treatment and freed parasites were washed twice in 1X PBS. Parasite lysis was induced by addition of ice cold water to the pellet and incubated for 30 min on a rotator at 4°C. Nuclei from all parasite lines were pelleted at 10,000g for 10 min at 4°C. Supernatants were discarded and pellets were resuspended thoroughly in 0.4N H2SO4. The suspensions were incubated overnight on a rotator at 4°C. Samples were spun down for 20 min at 14,000g at 4°C and supernatants were dialyzed against H2O for 8 h. Samples were retrieved from dialysis cassettes and lyophilized in a SpeedVac overnight. Each dried sample was reconstituted in 100 μL ddH2O, protein concentrations determined using the Bradford assay, and analyzed by SDS-PAGE/Western to detect any changes in H3K36me3 and H3K9me3 quantities. Three antibodies, anti-H3K36me3 [27], anti-H3K9me3 (Upstate, Millipore), and anti-H3 (Abcam) were used for immunodetection.

IC50 determination of histone modification inhibitors

IC50 values were determined for a series of five histone modification inhibitors that included inhibitors of histone methyltransferases, acetyltransferases and a deacetylase. The compounds used were: Histone methyltransferase inhibitors—BIX01294(hydrochloride hydrate) (Cayman) as a 16.7 mM stock in ddH2O, Chaetocin (Cayman) as a 14.4Mm stock in dimethyl sulfoxide (DMSO), and UNC0321 (Cayman) as a 11.7mM stock in methyl acetate; a histone acetyltransferase inhibitor Garcinol (Cayman) as a 2mM stock in DMSO; and a histone deacetylase inhibitor trichostain A (TSA) (Sigma) was prepared as a 10mM in methanol. Chloroquine (diphosphate salt) (Sigma) was used as a control in our study and prepared as a 2μM stock in PBS. Drug sensitivity assays were performed on cultured NF54 subclones using SYBR Green I as described previously [62]. Briefly, parasite cultures were synchronized using an alanine-HEPES solution [63] to obtain a synchronous culture of ring-stage parasites. 200μl cultures in 96-well plates with parasitemia of 0.2–0.5% and 2% haematocrit were incubated with increasing concentrations of each inhibitor in an airtight chamber for 72 h. 150μl of the each culture was then transferred to a 96-well black plate designed for fluorescent readings. Plates were frozen at -80°C for 3h and then thawed completely. 100μl SYBR Green diluted in lysis buffer [64] was added to each well and agitated in the dark at room temperature for 1 h. Plates were read by a SpectraMax Gemini fluorometer at an excitation wavelength centered at 490 nm and 530 nm. IC50 values were calculated using Graphpad Prism software as described previously [62].

Parasite treatment with histone modification inhibitors

To investigate the effects of the six histone modification inhibitors on P. falciparum, we treated the NF54 subclones using sub-IC50 values obtained from the drug sensitivity assays. Parasites were initially treated with 0.4nM BIX01294, 900nM Chaetocin, 2nM UNC0321, 1μM Garcinol, 6.7nM TSA, and 0.3nM chloroquine separately, for 2 weeks to determine effects on var gene expression. For subsequent experiments, the NF54 subclones, HB3 and DC-J parasites lines were maintained in the presence of 900 nM chaetocin for the duration of the experiments, unless otherwise noted.

Southern blots and diagnostic PCR

To confirm the copy number of var2csa in our HB3 isolate, the sequences of both var2csa copies described in the database were loaded into NEBcutter and NcoI and NsiI were determined to be restriction sites that would differentiate between the two alleles. Southern blots were performed according to established protocols. Briefly, genomic DNA was isolated from growing cultures of HB3 and digested using the restriction enzymes NcoI and NsiI. The digested gDNA was subjected to gel electrophoresis using 1% agarose in Tris base/Acetic Acid/EDTA (TAE) buffer followed by transfer to a high-bond nitrocellulose membrane by capillary action after alkaline denaturation. DNA sequences were detected using Amersham’s non-radioactive detection kit. The two var2csa genes were also differentiated by diagnostic PCR in which primer pairs were designed to amplify dissimilar regions of the two genes.

RNA extraction and cDNA synthesis

RNA from all parasite lines was extracted from synchronized late ring stage parasites as described previously [51]. Briefly, RNA was extracted with TRiZol (Invitrogen) and purified on PureLink (Invitrogen) columns following manufacturer’s protocol. Isolated RNA was treated with Deoxyribonuclease I (DNase I) (Invitrogen) to degrade contaminating genomic DNA. cDNA was synthesized from approximately 800 ng of RNA in a total reaction volume that consisted of Superscript II RNase H reverse transcriptase (Invitrogen) as described by the manufacturer.

Quantitative RT-PCR

We employed the Q-RT-PCR var primer set of Salanti et al to detect transcription from all var genes [43]. Sequences for specific primers for HB3 RNA detection are in Table 2. All reactions were performed in 10μl volumes using ITAQ SYBR supermix (Bio-Rad) or AceQ qPCR SYBR Green Master Mix Kit (Vazyme, USA) in a 7900HT RT-PCR System (ABI). ΔCT for each individual primer pair was determined by subtracting the individual CT value from the CT value of the control seryl-tRNA synthetase (User bulletin 2, Applied Biosystems, http://www.appliedbiosystems.com). ΔCTs were further converted to relative copy numbers with the formula 2ΔCT. All Q-RT-PCR assays were performed at least in duplicate with no apparent differences between runs. Relative copy numbers for each var gene were determined in Microscoft Excel and transcriptional profiles of individual genes are presented as pie graphs or as bar graphs. The var gene with the highest copy number was designated as the dominant gene.

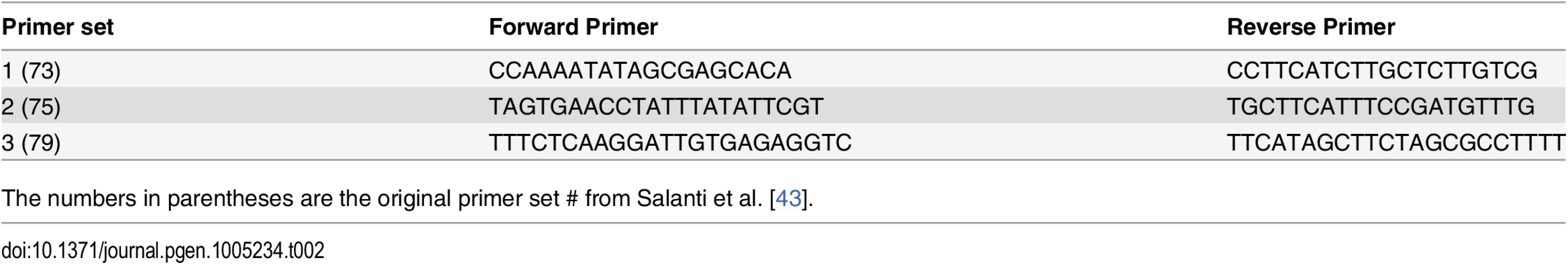

Tab. 2. Primer sets used in real-time PCR assays specifically to amplify var2csa from HB3.
Primer sets used in real-time PCR assays specifically to amplify <i>var2csa</i> from HB3.
The numbers in parentheses are the original primer set # from Salanti et al. [43].

Supporting Information

Attachment 1

Attachment 2

Attachment 3

Attachment 4

Attachment 5

Attachment 6

Attachment 7

Attachment 8

Attachment 9

Attachment 10

Attachment 11

Attachment 12

Attachment 13

Attachment 14

Attachment 15


Zdroje

1. Haber JE (2012) Mating-type genes and MAT switching in Saccharomyces cerevisiae. Genetics 191: 33–64. doi: 10.1534/genetics.111.134577 22555442

2. Corcoran AE (2005) Immunoglobulin locus silencing and allelic exclusion. Semin Immunol 17: 141–154. 15737575

3. Rodriguez I (2013) Singular expression of olfactory receptor genes. Cell 155: 274–277. S0092-8674(13)01206-3 [pii]. doi: 10.1016/j.cell.2013.09.032 24120129

4. Chang SC, Tucker T, Thorogood NP, Brown CJ (2006) Mechanisms of X-chromosome inactivation. Front Biosci 11: 852–866. 16146776

5. Deitsch KW, Lukehart SA, Stringer JR (2009) Common strategies for antigenic variation by bacterial, fungal and protozoan pathogens. Nat Rev Microbiol 7: 493–503. doi: 10.1038/nrmicro2145 19503065

6. Prucca CG, Lujan HD (2009) Antigenic variation in Giardia lamblia. Cell Microbiol 11: 1706–1715. CMI1367 [pii]. doi: 10.1111/j.1462-5822.2009.01367.x 19709056

7. Saraiya AA, Li W, Wu J, Chang CH, Wang CC (2014) The microRNAs in an ancient protist repress the variant-specific surface protein expression by targeting the entire coding sequence. PLoS Pathog 10: e1003791. doi: 10.1371/journal.ppat.1003791 24586143

8. al Khedery B, Allred DR (2006) Antigenic variation in Babesia bovis occurs through segmental gene conversion of the ves multigene family, within a bidirectional locus of active transcription. Mol Microbiol 59: 402–414. 16390438

9. Horn D (2014) Antigenic variation in African trypanosomes. Mol Biochem Parasitol. S0166-6851(14)00059-0 [pii]

10. Scherf A, Lopez-Rubio JJ, Riviere L (2008) Antigenic variation in Plasmodium falciparum. Annu Rev Microbiol 62: 445–470. doi: 10.1146/annurev.micro.61.080706.093134 18785843

11. Miller LH, Good MF, Milon G (1994) Malaria Pathogenesis. Science 264: 1878–1883. 8009217

12. Baruch DI, Pasloske BL, Singh HB, Bi X, Ma XC, Feldman M, Taraschi TF, Howard RJ (1995) Cloning the P. falciparum gene encoding PfEMP1, a malarial variant antigen and adherence receptor on the surface of parasitized human erythrocytes. Cell 82: 77–87. 7541722

13. Smith JD, Chitnis CE, Craig AG, Roberts DJ, Hudson-Taylor DE, Peterson DS, Pinches R, Newbold CI, Miller LH (1995) Switches in expression of Plasmodium falciparum var genes correlate with changes in antigenic and cytoadherent phenotypes of infected erythrocytes. Cell 82: 101–110. 7606775

14. Su X, Heatwole VM, Wertheimer SP, Guinet F, Herrfeldt JV, Peterson DS, Ravetch JV, Wellems TE (1995) A large and diverse gene family (var) encodes 200–350 kD proteins implicated in the antigenic variation and cytoadherence of Plasmodium falciparum-infected erythrocytes. Cell 82: 89–100. 7606788

15. Turner L, Lavstsen T, Berger SS, Wang CW, Petersen JE, Avril M, Brazier AJ, Freeth J, Jespersen JS, Nielsen MA, Magistrado P, Lusingu J, Smith JD, Higgins MK, Theander TG (2013) Severe malaria is associated with parasite binding to endothelial protein C receptor. Nature 498: 502–505. nature12216 [pii]. doi: 10.1038/nature12216 23739325

16. Baruch DI, Gormley JA, Ma C, Howard RJ, Pasloske BL (1996) Plasmodium falciparum erythrocyte membrane protein 1 is a parasitized erythrocyte receptor for adherence to CD36, thrombospondin, and intercellular adhesion molecule 1. Proceedings of the National Academy of Sciences USA 93: 3497–3502. 8622965

17. Fried M, Duffy PE (1996) Plasmodium falciparum-infected erythrocytes adhere to chondroitin sulfate A in the human placenta. Science 272: 1502–1504. 8633247

18. Scherf A, Hernandez-Rivas R, Buffet P, Bottius E, Benatar C, Pouvelle B, Gysin J, Lanzer M (1998) Antigenic variation in malaria: in situ switching, relaxed and mutually exclusive transcription of var genes during intra-erythrocytic development in Plasmodium falciparum. EMBO J 17: 5418–5426. 9736619

19. Tonkin CJ, Carret CK, Duraisingh MT, Voss TS, Ralph SA, Hommel M, Duffy MF, Silva LM, Scherf A, Ivens A, Speed TP, Beeson JG, Cowman AF (2009) Sir2 paralogues cooperate to regulate virulence genes and antigenic variation in Plasmodium falciparum. PLoS Biol 7: e84. doi: 10.1371/journal.pbio.1000084 19402747

20. Duraisingh MT, Voss TS, Marty AJ, Duffy MF, Good RT, Thompson JK, Freitas-Junior LH, Scherf A, Crabb BS, Cowman AF (2005) Heterochromatin silencing and locus repositioning linked to regulation of virulence genes in Plasmodium faiciparum. Cell 121: 13–24. 15820675

21. Freitas-Junior LH, Hernandez-Rivas R, Ralph SA, Montiel-Condado D, Ruvalcaba-Salazar OK, Rojas-Meza AP, Mancio-Silva L, Leal-Silvestre RJ, Gontijo AM, Shorte S, Scherf A (2005) Telomeric heterochromatin propagation and histone acetylation control mutually exclusive expression of antigenic variation genes in malaria parasites. Cell 121: 25–36. 15820676

22. Flueck C, Bartfai R, Volz J, Niederwieser I, Salcedo-Amaya AM, Alako BT, Ehlgen F, Ralph SA, Cowman AF, Bozdech Z, Stunnenberg HG, Voss TS (2009) Plasmodium falciparum heterochromatin protein 1 marks genomic loci linked to phenotypic variation of exported virulence factors. PLoS Pathog 5: e1000569. doi: 10.1371/journal.ppat.1000569 19730695

23. Chookajorn T, Dzikowski R, Frank M, Li F, Jiwani AZ, Hartl DL, Deitsch KW (2007) Epigenetic memory at malaria virulence genes. Proc Natl Acad Sci U S A 104: 899–902. 17209011

24. Lopez-Rubio JJ, Gontijo AM, Nunes MC, Issar N, Hernandez RR, Scherf A (2007) 5' flanking region of var genes nucleate histone modification patterns linked to phenotypic inheritance of virulence traits in malaria parasites. Mol Microbiol 66: 1296–1305. 18028313

25. Lopez-Rubio JJ, Mancio-Silva L, Scherf A (2009) Genome-wide analysis of heterochromatin associates clonally variant gene regulation with perinuclear repressive centers in malaria parasites. Cell Host Microbe 5: 179–190. doi: 10.1016/j.chom.2008.12.012 19218088

26. Jiang L, Mu J, Zhang Q, Ni T, Srinivasan P, Rayavara K, Yang W, Turner L, Lavstsen T, Theander TG, Peng W, Wei G, Jing Q, Wakabayashi Y, Bansal A, Luo Y, Ribeiro JM, Scherf A, Aravind L, Zhu J, Zhao K, Miller LH (2013) PfSETvs methylation of histone H3K36 represses virulence genes in Plasmodium falciparum. Nature 499: 223–227. doi: 10.1038/nature12361 23823717

27. Ukaegbu UE, Kishore SP, Kwiatkowski DL, Pandarinath C, Dahan-Pasternak N, Dzikowski R, Deitsch KW (2014) Recruitment of PfSET2 by RNA polymerase II to variant antigen encoding loci contributes to antigenic variation in P. falciparum. PLoS Pathog 10: e1003854. doi: 10.1371/journal.ppat.1003854 24391504

28. Frank M, Dzikowski R, Amulic B, Deitsch K (2007) Variable switching rates of malaria virulence genes are associated with chromosomal position. Mol Microbiol 64: 1486–1498. 17555435

29. Recker M, Buckee CO, Serazin A, Kyes S, Pinches R, Christodoulou Z, Springer AL, Gupta S, Newbold CI (2011) Antigenic variation in Plasmodium falciparum malaria involves a highly structured switching pattern. PLoS Pathog 7: e1001306. doi: 10.1371/journal.ppat.1001306 21408201

30. Noble R, Christodoulou Z, Kyes S, Pinches R, Newbold CI, Recker M (2013) The antigenic switching network of Plasmodium falciparum and its implications for the immuno-epidemiology of malaria. Elife (Cambridge) 2: e01074. 01074 [pii]. doi: 10.7554/eLife.01074 24062941

31. Mok BW, Ribacke U, Rasti N, Kironde F, Chen Q, Nilsson P, Wahlgren M (2008) Default Pathway of var2csa switching and translational repression in Plasmodium falciparum. PLoS ONE 3: e1982. doi: 10.1371/journal.pone.0001982 18431472

32. Salanti A, Dahlback M, Turner L, Nielsen MA, Barfod L, Magistrado P, Jensen AT, Lavstsen T, Ofori MF, Marsh K, Hviid L, Theander TG (2004) Evidence for the involvement of VAR2CSA in pregnancy-associated malaria. J Exp Med 200: 1197–1203. 15520249

33. Trimnell AR, Kraemer SM, Mukherjee S, Phippard DJ, Janes JH, Flamoe E, Su XZ, Awadalla P, Smith JD (2006) Global genetic diversity and evolution of var genes associated with placental and severe childhood malaria. Mol Biochem Parasitol 148: 169–180. 16697476

34. Amulic B, Salanti A, Lavstsen T, Nielsen MA, Deitsch KW (2009) An upstream open reading frame controls translation of var2csa, a gene implicated in placental malaria. PLoS Pathog 5: e1000256. doi: 10.1371/journal.ppat.1000256 19119419

35. Bancells C, Deitsch KW (2013) A molecular switch in the efficiency of translation reinitiation controls expression of var2csa, a gene implicated in pregnancy-associated malaria. Mol Microbiol.

36. Lavstsen T, Magistrado P, Hermsen CC, Salanti A, Jensen AT, Sauerwein R, Hviid L, Theander TG, Staalsoe T (2005) Expression of Plasmodium falciparum erythrocyte membrane protein 1 in experimentally infected humans. Malar J 4: 21. 15857512

37. Duffy MF, Caragounis A, Noviyanti R, Kyriacou HM, Choong EK, Boysen K, Healer J, Rowe JA, Molyneux ME, Brown GV, Rogerson SJ (2006) Transcribed var genes associated with placental malaria in Malawian women. Infect Immun 74: 4875–4883. 16861676

38. Rask TS, Hansen DA, Theander TG, Gorm PA, Lavstsen T (2010) Plasmodium falciparum erythrocyte membrane protein 1 diversity in seven genomes—divide and conquer. PLoS Comput Biol 6.

39. Barry AE, Leliwa-Sytek A, Tavul L, Imrie H, Migot-Nabias F, Brown SM, McVean GA, Day KP (2007) Population Genomics of the Immune Evasion (var) Genes of Plasmodium falciparum. PLoS Pathog 3: e34. 17367208

40. Lavstsen T, Salanti A, Jensen ATR, Arnot DE, Theander TG (2003) Sub-grouping of Plasmodium falciparum 3D7 var genes based on sequence analysis of coding and non-coding regions. Malaria Journal 2: 27. 14565852

41. Kraemer SM, Smith JD (2003) Evidence for the importance of genetic structuring to the structural and functional specialization of the Plasmodium falciparum var gene family. Molecular Microbiology 50: 1527–1538. 14651636

42. Epp C, Raskolnikov D, Deitsch KW (2008) A regulatable transgene expression system for cultured Plasmodium falciparum parasites. Malar J 7: 86. doi: 10.1186/1475-2875-7-86 18492282

43. Salanti A, Staalsoe T, Lavstsen T, Jensen ATR, Sowa MPK, Arnot DE, Hviid L, Theander TG (2003) Selective upregulation of a single distinctly structured var gene in chondroitin sulphate A-adhering Plasmodium falciparum involved in pregnancy-associated malaria. Molecular Microbiology 49: 179–191. 12823820

44. Horrocks P, Pinches R, Christodoulou Z, Kyes SA, Newbold CI (2004) Variable var transition rates underlie antigenic variation in malaria. Proc Natl Acad Sci U S A 101: 11129–11134. 15256597

45. Greiner D, Bonaldi T, Eskeland R, Roemer E, Imhof A (2005) Identification of a specific inhibitor of the histone methyltransferase SU(VAR)3-9. Nat Chem Biol 1: 143–145. nchembio721 [pii]. 16408017

46. Cui L, Fan Q, Cui L, Miao J (2008) Histone lysine methyltransferases and demethylases in Plasmodium falciparum. Int J Parasitol 38: 1083–1097. doi: 10.1016/j.ijpara.2008.01.002 18299133

47. Sander AF, Salanti A, Lavstsen T, Nielsen MA, Magistrado P, Lusingu J, Ndam NT, Arnot DE (2009) Multiple var2csa-type PfEMP1 genes located at different chromosomal loci occur in many Plasmodium falciparum isolates. PLoS ONE 4: e6667. doi: 10.1371/journal.pone.0006667 19690615

48. Kraemer SM, Kyes SA, Aggarwal G, Springer AL, Nelson SO, Christodoulou Z, Smith LM, Wang W, Levin E, Newbold CI, Myler PJ, Smith JD (2007) Patterns of gene recombination shape var gene repertoires in Plasmodium falciparum: comparisons of geographically diverse isolates. BMC Genomics 8: 45. 17286864

49. Brolin KJ, Ribacke U, Nilsson S, Ankarklev J, Moll K, Wahlgren M, Chen Q (2009) Simultaneous transcription of duplicated var2csa gene copies in individual Plasmodium falciparum parasites. Genome Biol 10: R117. gb-2009-10-10-r117 [pii]. doi: 10.1186/gb-2009-10-10-r117 19849836

50. Duffy MF, Byrne TJ, Carret C, Ivens A, Brown GV (2009) Ectopic recombination of a malaria var gene during mitosis associated with an altered var switch rate. J Mol Biol 389: 453–469. S0022-2836(09)00476-8 [pii]. doi: 10.1016/j.jmb.2009.04.032 19389407

51. Dzikowski R, Frank M, Deitsch K (2006) Mutually Exclusive Expression of Virulence Genes by Malaria Parasites Is Regulated Independently of Antigen Production. PLoS Pathog 2: e22. 16518466

52. Bartfai R, Hoeijmakers WA, Salcedo-Amaya AM, Smits AH, Janssen-Megens E, Kaan A, Treeck M, Gilberger TW, Francoijs KJ, Stunnenberg HG (2010) H2A.Z demarcates intergenic regions of the plasmodium falciparum epigenome that are dynamically marked by H3K9ac and H3K4me3. PLoS Pathog 6: e1001223. doi: 10.1371/journal.ppat.1001223 21187892

53. Pacheco MA, Cranfield M, Cameron K, Escalante AA (2013) Malarial parasite diversity in chimpanzees: the value of comparative approaches to ascertain the evolution of Plasmodium falciparum antigens. Malar J 12: 328. 1475-2875-12-328 [pii]. doi: 10.1186/1475-2875-12-328 24044371

54. Wakimoto BT (1998) Beyond the nucleosome: epigenetic aspects of position-effect variegation in Drosophila. Cell 93: 321–324. 9590165

55. Schnell R, Rine J (1986) A position effect on the expression of a tRNA gene mediated by the SIR genes in Saccharomyces cerevisiae. Mol Cell Biol 6: 494–501. 3023851

56. Kyes SA, Christodoulou Z, Raza A, Horrocks P, Pinches R, Rowe JA, Newbold CI (2003) A well-conserved Plasmodium falciparum var gene shows an unusual stage-specific transcript pattern. Molecular Microbiology 48: 1339–1348. 12787360

57. Winter G, Chen QJ, Flick K, Kremsner P, Fernandez V, Wahlgren M (2003) The 3D7var5.2 (var(COMMON)) type var gene family is commonly expressed in non-placental Plasmodium falciparum malaria. Molecular and Biochemical Parasitology 127: 179–191. 12672527

58. Wang CW, Lavstsen T, Bengtsson DC, Magistrado PA, Berger SS, Marquard AM, Alifrangis M, Lusingu JP, Theander TG, Turner L (2012) Evidence for in vitro and in vivo expression of the conserved VAR3 (type 3) plasmodium falciparum erythrocyte membrane protein 1. Malar J 11: 129. 1475-2875-11-129 [pii]. doi: 10.1186/1475-2875-11-129 22533832

59. Zhang Y, Jiang N, Chang Z, Wang H, Lu H, Wahlgren M, Chen Q (2014) The var3 genes of Plasmodium falciparum 3D7 strain are differentially expressed in infected erythrocytes. Parasite 21: 19. parasite140022 [pii]. doi: 10.1051/parasite/2014019 24759654

60. Deitsch KW, Driskill CL, Wellems TE (2001) Transformation of malaria parasites by the spontaneous uptake and expression of DNA from human erythrocytes. Nucleic Acids Research 29: 850–853. 11160909

61. Shechter D, Dormann HL, Allis CD, Hake SB (2007) Extraction, purification and analysis of histones. Nat Protoc 2: 1445–1457. 17545981

62. Heinberg A, Siu E, Stern C, Lawrence EA, Ferdig MT, Deitsch KW, Kirkman LA (2013) Direct evidence for the adaptive role of copy number variation on antifolate susceptibility in Plasmodium falciparum. Mol Microbiol 88: 702–712. doi: 10.1111/mmi.12162 23347134

63. Braun-Breton C, Rosenberry TL, Da Silva LP (1988) Induction of the proteolytic activity of a membrane protein in Plasmodium falciparum by phosphatidyl inositol-specific phospholipase C. Nature 332: 457–459. 3281025

64. Smilkstein M, Sriwilaijaroen N, Kelly JX, Wilairat P, Riscoe M (2004) Simple and inexpensive fluorescence-based technique for high-throughput antimalarial drug screening. Antimicrob Agents Chemother 48: 1803–1806. 15105138

Štítky
Genetika Reprodukční medicína

Článek vyšel v časopise

PLOS Genetics


2015 Číslo 5

Nejčtenější v tomto čísle
Kurzy

Zvyšte si kvalifikaci online z pohodlí domova

Hypertenze a hypercholesterolémie – synergický efekt léčby
nový kurz
Autoři: prof. MUDr. Hana Rosolová, DrSc.

Multidisciplinární zkušenosti u pacientů s diabetem
Autoři: Prof. MUDr. Martin Haluzík, DrSc., prof. MUDr. Vojtěch Melenovský, CSc., prof. MUDr. Vladimír Tesař, DrSc.

Úloha kombinovaných preparátů v léčbě arteriální hypertenze
Autoři: prof. MUDr. Martin Haluzík, DrSc.

Halitóza
Autoři: MUDr. Ladislav Korábek, CSc., MBA

Terapie roztroušené sklerózy v kostce
Autoři: MUDr. Dominika Šťastná, Ph.D.

Všechny kurzy
Přihlášení
Zapomenuté heslo

Zadejte e-mailovou adresu, se kterou jste vytvářel(a) účet, budou Vám na ni zaslány informace k nastavení nového hesla.

Přihlášení

Nemáte účet?  Registrujte se

#ADS_BOTTOM_SCRIPTS#
