Expression of Tumor Suppressor in Spermatogonia Facilitates Meiotic Progression in Male Germ Cells


The mammalian Cdkn2a (Ink4a-Arf) locus encodes two tumor suppressor proteins (p16Ink4a and p19Arf) that respectively enforce the anti-proliferative functions of the retinoblastoma protein (Rb) and the p53 transcription factor in response to oncogenic stress. Although p19Arf is not normally detected in tissues of young adult mice, a notable exception occurs in the male germ line, where Arf is expressed in spermatogonia, but not in meiotic spermatocytes arising from them. Unlike other contexts in which the induction of Arf potently inhibits cell proliferation, expression of p19Arf in spermatogonia does not interfere with mitotic cell division. Instead, inactivation of Arf triggers germ cell–autonomous, p53-dependent apoptosis of primary spermatocytes in late meiotic prophase, resulting in reduced sperm production. Arf deficiency also causes premature, elevated, and persistent accumulation of the phosphorylated histone variant H2AX, reduces numbers of chromosome-associated complexes of Rad51 and Dmc1 recombinases during meiotic prophase, and yields incompletely synapsed autosomes during pachynema. Inactivation of Ink4a increases the fraction of spermatogonia in S-phase and restores sperm numbers in Ink4a-Arf doubly deficient mice but does not abrogate γ-H2AX accumulation in spermatocytes or p53-dependent apoptosis resulting from Arf inactivation. Thus, as opposed to its canonical role as a tumor suppressor in inducing p53-dependent senescence or apoptosis, Arf expression in spermatogonia instead initiates a salutary feed-forward program that prevents p53-dependent apoptosis, contributing to the survival of meiotic male germ cells.


Published in the journal: . PLoS Genet 7(7): e32767. doi:10.1371/journal.pgen.1002157
Category: Research Article
doi: https://doi.org/10.1371/journal.pgen.1002157

Summary

The mammalian Cdkn2a (Ink4a-Arf) locus encodes two tumor suppressor proteins (p16Ink4a and p19Arf) that respectively enforce the anti-proliferative functions of the retinoblastoma protein (Rb) and the p53 transcription factor in response to oncogenic stress. Although p19Arf is not normally detected in tissues of young adult mice, a notable exception occurs in the male germ line, where Arf is expressed in spermatogonia, but not in meiotic spermatocytes arising from them. Unlike other contexts in which the induction of Arf potently inhibits cell proliferation, expression of p19Arf in spermatogonia does not interfere with mitotic cell division. Instead, inactivation of Arf triggers germ cell–autonomous, p53-dependent apoptosis of primary spermatocytes in late meiotic prophase, resulting in reduced sperm production. Arf deficiency also causes premature, elevated, and persistent accumulation of the phosphorylated histone variant H2AX, reduces numbers of chromosome-associated complexes of Rad51 and Dmc1 recombinases during meiotic prophase, and yields incompletely synapsed autosomes during pachynema. Inactivation of Ink4a increases the fraction of spermatogonia in S-phase and restores sperm numbers in Ink4a-Arf doubly deficient mice but does not abrogate γ-H2AX accumulation in spermatocytes or p53-dependent apoptosis resulting from Arf inactivation. Thus, as opposed to its canonical role as a tumor suppressor in inducing p53-dependent senescence or apoptosis, Arf expression in spermatogonia instead initiates a salutary feed-forward program that prevents p53-dependent apoptosis, contributing to the survival of meiotic male germ cells.

Introduction

The Cdkn2a-Cdkn2b gene cluster (also designated Ink4-Arf) encodes two polypeptide inhibitors (p16Ink4a and p15Ink4b) of cyclin D-dependent kinases (Cdk4 and Cdk6), as well as a third protein (p19Arf) that antagonizes the Mdm2 ubiquitin E3 ligase to activate p53 [1]. Although the Ink4a and Ink4b genes likely arose through gene duplication, the structure of the Ink4-Arf gene cluster is highly unusual, as major portions of the p16Ink4a and p19Arf proteins are encoded by alternative reading frames of a shared exon [2]. Induction of p16Ink4a and p15Ink4b prevents the phosphorylation of the retinoblastoma protein (Rb), thereby maintaining Rb in its growth suppressive state and preventing entry into the DNA synthetic (S) phase of the cell division cycle. In contrast, p19Arf expression elicits a p53-dependent transcription program that either enforces cell cycle arrest or triggers apoptosis, depending on cell type, physiologic setting, and collateral modulating signals [1]. The Ink4-Arf genes prevent cell proliferation by implementing Rb- and p53-dependent programs that enforce cellular senescence and inhibit tissue regeneration as animals age, but their intimate genetic linkage facilitates their coordinate repression in embryonic and adult tissue stem cells, thereby allowing self-renewal [3], [4]. Deleterious growth-promoting stimuli conveyed by activated oncogenes induce Ink4-Arf gene expression and engage both p53 and Rb to counter untoward cellular proliferation. Not surprisingly, bi-allelic deletion of the Ink4-Arf gene cluster abrogates this form of tumor suppression and is one of the more frequent events in human cancer.

Despite its canonical role as an inducer of p53 in response to oncogene signaling, Arf also has p53-independent tumor suppressive activity. Deletion of Arf together with Mdm2 and p53 expands the spectrum and decreases the latency of cancers that spontaneously arise in mice lacking p53, p53 and Mdm2, or Arf alone [5]. Although highly basic p19Arf (∼20% arginine) has been reported to physically interact with more than 25 different proteins other than Mdm2, the role of p19Arf, if any, in regulating the functions of these putative “target” proteins remains controversial [6]. Indeed, numerous reports that p19Arf regulates such diverse processes as ribosomal biosynthesis, transcription, DNA repair, apoptosis and autophagy in a p53-independent manner have generally relied on experiments performed with cultured cells but have not been buttressed by more extensive in vivo analyses.

Although the Ink4-Arf locus is not detectably expressed under most normal physiologic conditions, eye and male germ cell development provide notable exceptions [7]. Arf is required for early postnatal regression of the hyaloid vasculature in the vitreous, so that Arf-null mice form a retrolenticular mass predominantly composed of pericytes; the abnormal accumulation of these cells disrupts the retina and lens and leads to blindness [8]. Arf inactivation also results in a significant reduction of sperm production through as yet poorly defined mechanisms, although young male mice remain fertile [9]. In contrast, Arf-null females have no discernable reproductive defects.

Spermatogenesis involves a stereotyped sequence of mitotic and meiotic divisions followed by sperm differentiation [10]. In mice, male germ cell progenitors (gonocytes) renew in the testis between days 1–7 postpartum (P1–P7) and generate spermatogonia that line the basement membranes of developing seminiferous tubules [11], [12]. At P7–P10, spermatogonia divide to form preleptotene spermatocytes that detach from the basement membrane, are displaced toward the tubular lumen, and enter meiosis-I as primary leptotene spermatocytes. During the extended prophase of meiosis-I, homologous pairs of maternal and paternal chromosomes align to form synaptonemal complexes and exchange genetic information through homologous recombination [13]. Meiosis-I is completed by P18, and is followed rapidly by meiosis-II, and by spermiogenesis (P19–P35), after which the first mature spermatozoa enter the epididymis. As spermatogenesis continues throughout life, spermatogonia within mature seminiferous tubules remain localized on the peripheral tubular basement membrane, whereas spermatocytes, spermatids, and mature sperm are arranged in a sequential order from the periphery towards the lumen [10].

Intriguingly, p19Arf is transiently expressed in mitotically dividing spermatogonia, but not in the meiotic cells that arise from them [9]. Here, we provide genetic evidence demonstrating that Arf expression initiates a germ cell autonomous program that protects meiotic spermatocytes from undergoing p53-dependent elimination. This physiologic function of p19Arf directly contrasts with its role as a tumor suppressor in inducing p53.

Results

Arf Is Expressed in Mitotically Dividing Spermatogonia

Lineage tracing experiments in the mouse previously revealed that all viable male germ cells are derived from spermatogonial progenitors in which transient Arf expression neither inhibits proliferation nor subsequent meiotic commitment [9]. Underscoring these findings, expression of p19Arf in young adult mice is observed in all types of spermatogonia, but not in Sox9-expressing Sertoli cells on the tubular basement membrane or in DAPI-stained intratubular spermatocytes, spermatids, or sperm (Figure 1A). The fact that p19Arf is not detected in cells that have detached from the basement membrane implies that Arf expression is extinguished at or near the primary spermatocyte stage of germ cell differentiation. Consistent with this interpretation, the Arf protein does not co-localize with Dmc1 [9], a meiotic recombinase expressed in leptotene spermatocytes. In the mature testis, spermatogenesis occurs in waves along the length of the seminiferous tubules, so that cross sections capture tubules in which dividing spermatogonia are in synchronous phases of the cell cycle. When five month-old mice injected intraperitoneally with BrdU were sacrificed two hours later, dual immunofluorescence analysis revealed that many cells on the tubular basement membrane that had synthesized DNA also expressed p19Arf (Figure 1B). Similarly, at P12 when the number of mitotically cycling progenitors exceeds those of more differentiated germ cells, p19Arf was co-expressed with cyclin D1, a G1 phase marker of proliferating spermatogonia [14] (Figure 1C), and strikingly, was detected during all stages of mitosis (Figure 1D, 1E). Therefore, in spermatogonia, p19Arf is expressed throughout the cell division cycle without interfering with proliferation.

Fig. 1. Arf protein expression in mitotically dividing spermatogonia.
Arf protein expression in mitotically dividing spermatogonia.
Protein expression in sections of seminiferous tubules were determined by immunofluorescence analysis. (A) p19Arf (green, left panel) is expressed in spermatogonia that intervene between Sox9-expressing Sertoli cells (red, middle panel) in the seminiferous tubules of adult 4 month-old mice. The right panel shows merged images documenting no overlap in expression of the two proteins. Unlabeled cells within the lumina of the tubules are visualized with DAPI. (B) After a 2 hour in vivo pulse of bromodeoxyuridine (BrdU) in adult 5 month old mice, p19Arf expression (green, left panel) was revealed in spermatogonia that had incorporated BrdU (red, middle panel). The right panel shows merged images documenting co-expression of both markers in many spermatogonia at the tubular periphery (yellow). (C) In seminiferous tubules from P12 mice, cells expressing p19Arf (green, left panel) co-express cyclin D1 (red, middle panel), a protein expressed in actively cycling spermatogonia; a merged image is shown at the right. (D, E) Spermatogonia within the seminiferous tubules of P15 mice express p19Arf (green) during mitosis. Examples of p19Arf expression during metaphase (D) and telophase (E) are shown. DAPI (blue) highlights the nuclei of intratubular germ cells and somatic Leydig cells that occupy the intertubular space. Scale bars: (A, D, E) 50 µm; (B, C) 100 µm.

Arf Deficiency Compromises Sperm Production, But Is Compensated by Ink4a Inactivation

Total body weights of age-matched wild-type, Arf-null, Ink4a-null, and Ink4a-Arf double-null mice are equivalent, but testis weights of Arf-null animals were reduced relative to those of wild-type controls (Figure 2A), and this was associated with a significant reduction in numbers of mature sperm by the time Arf-null mice were two months old (Figure 2B). Nonetheless, young Arf-null males remain fertile, and despite the widespread use of independently derived Arf-null strains by us and others, there is no suggestion that young fertile males produce reduced litter sizes. Hence, defects in spermatogenesis were not previously appreciated.

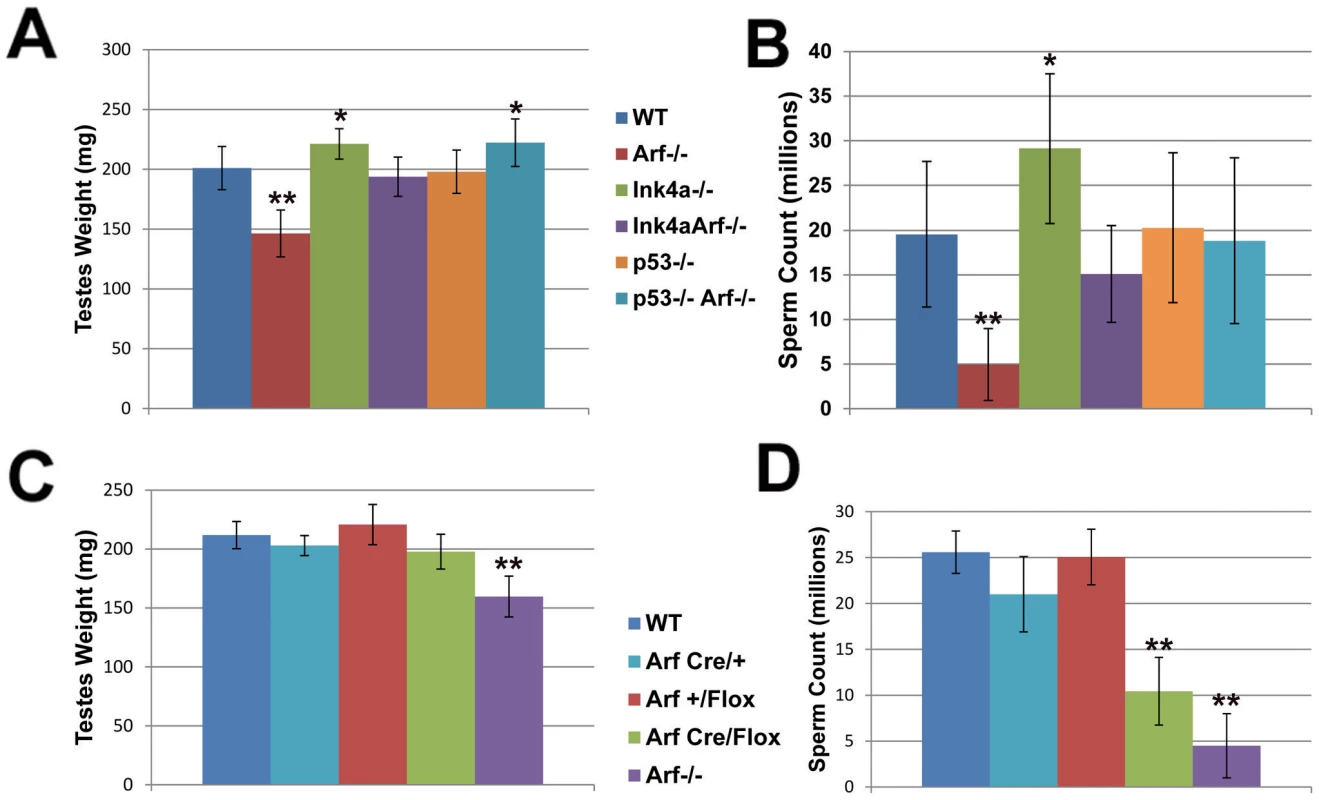

Fig. 2. Decreased sperm production in Arf-null mice is compensated by loss of Ink4a or p53.
Decreased sperm production in <i>Arf</i>-null mice is compensated by loss of <i>Ink4a</i> or <i>p53</i>.
(A, C) Testes were dissected from adult (2–6 month old) mice of the indicated genotypes and weighed as pairs. (B, D) Caudal epididymides were collected from corresponding mice, and recovered sperm were enumerated using a hemocytometer. Relative testes weights (A) and sperm counts (B) are reduced in Arf-null males but increased in Ink4a-null mice. Ink4a-Arf double-null and p53−/−; Arf−/− double null mice exhibit increased testes weights (A) and sperm counts (B). While testes weights (C) are not significantly reduced in ArfCre/Flox males, reduced sperm counts (D) mimic the Arf loss-of-function phenotype. [N = 20–32 mice (A, B) and 5 mice (C, D)]. Bars represent standard deviations from the mean. P values were determined using a Student's t-test (*p<0.001, **p<0.0001) and designate significant differences from the wild type genotype.

Knock-in of a cDNA encoding Cre recombinase in place of the first Arf exon creates a functionally null Arf allele that expresses Cre in lieu of p19Arf under the control of the Arf promoter. Crossing ArfCre/+ females to homozygous males containing Arf alleles flanked by LoxP sites (“floxed” alleles) specifically results in the inactivation of Arf function in the testis of compound heterozygous ArfCre/Flox male offspring. Although penetrance of Cre expression is not complete, more than 90% of spermatogonia in the seminiferous tubules of P21 mice had no detectable anti-p19Arf fluorescence signals [9]. Overall, while p19Arf was detected in the testes of haplo-insufficient ArfCre/+ mice, any residual levels of the protein in ArfCre/Flox testes were too low to be detected by immunoblotting analysis (representative data illustrated in Figure 3), confirming significant Cre-mediated Arf deletion in this setting. We therefore used this “targeted” deletion approach to compare the Arf loss-of-function phenotypes of ArfCre/Flox males with those of Arf−/− males. Analysis of testis weights revealed no differences between those of ArfCre/Flox mice and wild-type controls (Figure 2C). However, the sperm counts of ArfCre/Flox animals were reduced to levels approaching those of Arf−/− males (Figure 2D). Notably, the Arf-Cre or Arf-Flox alleles alone had no significant effects in limiting sperm production unless coexpressed in compound heterozygotes. Therefore, tissue-restricted effects of Arf inactivation independently recapitulated those seen in mice that completely lack Arf function.

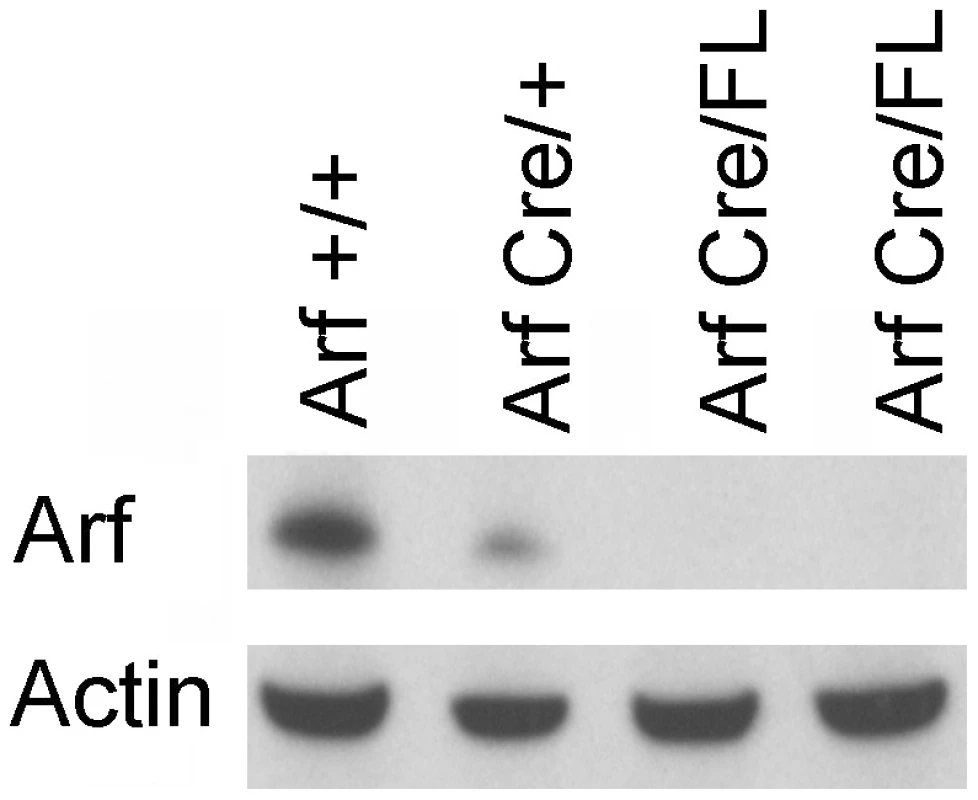

Fig. 3. Loss of expression of p19Arf in ArfCre/Flox testes.
Loss of expression of p19<sup>Arf</sup> in <i>Arf</i><sup>Cre/Flox</sup> testes.
Immunoblotting analysis was performed using an antibody against p19Arf. Whole testis lysates were prepared from two month old mice of the indicated genotypes. Immunoblotting with an antibody to actin was used to control for equal protein loading per lane.

Hormone signaling networks are involved in the proper control of spermatogenesis. Key regulatory gonadotrophins include luteinizing hormone (LH) and follicle-stimulating hormone (FSH) secreted by the anterior pituitary gland, and testosterone produced by testicular interstitial Leydig cells. The considerable day-to-day and even hour-to-hour variation over a 30-fold range in plasma testosterone levels in age-matched mice of a single strain precluded accurate measurements of strain-specific differences, even in a relatively large sample size (Figure 4) [15]. Importantly, however, no discernable defects in pituitary or Leydig cell development have been observed in Arf-null, Ink4a-null, or doubly-deficient mice, and no significant differences were observed in the ranges of serum FSH and LH among all genotypes examined (Figure 4). These findings suggest that spermatogenesis defects in Arf-deficient mice are not a secondary consequence of hormonal imbalances.

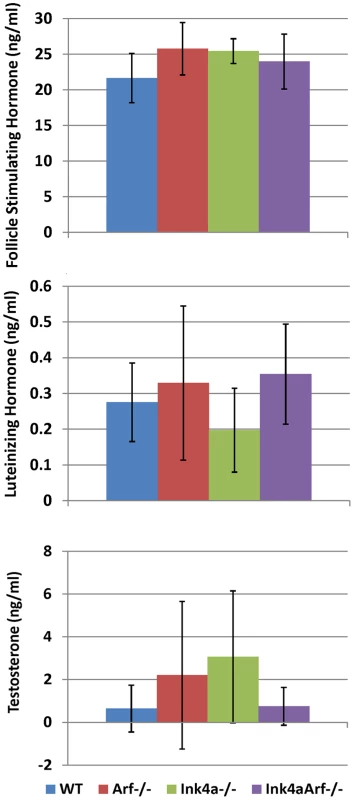

Fig. 4. Hormone levels in mice of different genotypes.
Hormone levels in mice of different genotypes.
Blood was collected in the afternoon from 15 two to four month-old male mice of each indicated genotype, and sera were analyzed for hormone content. P values calculated using a Student's t-test indicated no significant differences between samples taken from mice of different genotypes. Wide day-to-day and even hour-to-hour fluctuations in plasma testosterone levels yield largely unpredictable changes of as much as 30-fold between individual samples, as determined by radioimmunoassay [19]. Error bars indicate standard deviations from the mean.

Unlike Arf-null males, those lacking functional Ink4a instead exhibit increased testis weights and produce higher numbers of sperm than wild type mice (Figure 2A and 2B). Cdk4, the major target of p16Ink4a protein inhibition in the adult testis, is expressed at maximal levels at the earlier stages of spermatogenesis, where spermatogonia undergoing mitotic cell divisions predominate [16], [17], and Cdk4 inactivation compromises male fertility [18], [19]. We therefore quantified the in vivo incorporation of BrdU in spermatogonia of young adult wild-type, Arf-null, Ink4a-null, and Ink4a-Arf-null mice by counting stained cells that had entered S phase during a two-hour pulse. The S phase fractions of wild-type and Arf-null spermatogonia did not differ from each other (Figure 5), implying that the failure of Arf-null mice to produce normal numbers of sperm reflects a loss of meiotic cells or their immediate progeny rather than spermatogonia. In contrast, we observed a significant two-fold increase (p<0.0001, Student's t-test) in the relative number of S phase spermatogonia from both strains that lack Ink4a (Figure 5). Looking only at testis weights and sperm counts in Ink4a-Arf double-null animals, Ink4a inactivation appears to compensate for loss of Arf function (Figure 2A and 2B), presumably by fueling the production of a greater number of mitotic progenitors. Together, the consequences of these two independent loss-of-function effects rebalance testis size and sperm output in the doubly null strain. In this sense, these two “tumor suppressor” genes play opposing physiologic roles in male germ cell development.

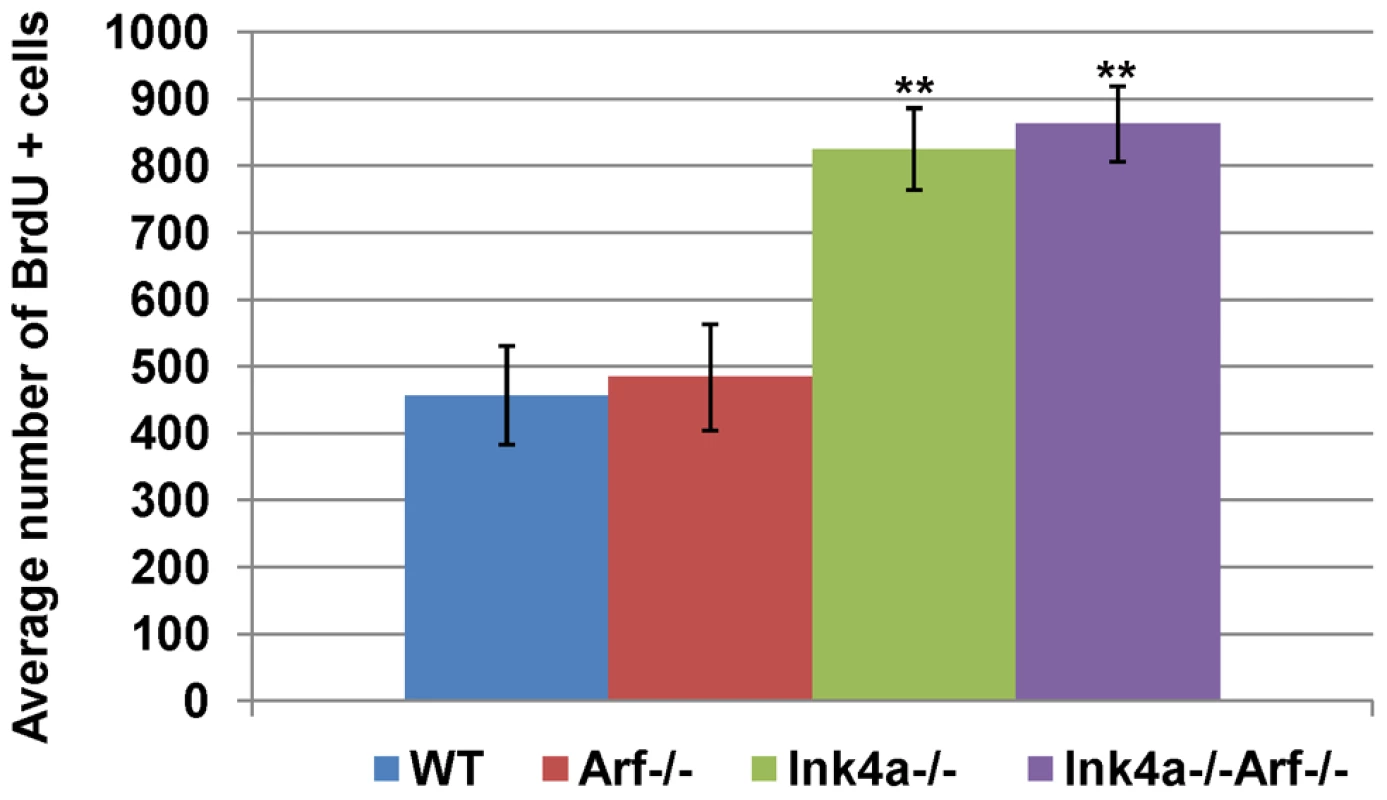

Fig. 5. Increased frequency of BrdU-incorporating spermatogonia in Ink4a-null mice.
Increased frequency of BrdU-incorporating spermatogonia in <i>Ink4a</i>-null mice.
Quantification of BrdU-positive spermatogonia in five month-old wild-type, Arf-null, Ink4a-null, and doubly Ink4a and Arf-null mice was determined two hours after intraperitoneal BrdU administration. BrdU-labeled cells were scored in 100 tubules in testis sections from seven different mice. Error bars indicate standard deviations from the mean. ** p<0.0001 vs wild-type by Student's t-test.

Arf Inactivation Leads to p53-Dependent Apoptosis in Primary Spermatocytes

Testes from two month-old Arf-null mice exhibited a significant increase in the numbers of apoptotic (TUNEL-positive) cells when compared to age-matched wild-type controls (Figure 6A and 6E). The vast majority of apoptotic cells are spermatocytes as judged by the topological relation of TUNEL-positive cells to the expression of the meiosis-specific strand-exchange protein Dmc1, which is expressed during early prophase-I (Figure 6A). Notably, however, intratubular TUNEL-positive cells were not stained with antibodies to Dmc1, implying that Arf-null cells die during a later stage of germ cell development after Dmc1 expression is greatly diminished. To examine this issue further, we conducted TUNEL staining of meiotic chromosome spreads. Characteristic stages of prophase during meiosis-I can be marked by staining chromosomes with antibodies to synaptonemal complex proteins, such as the axial element component SYCP3 [20], and by several ancillary criteria (see Materials and Methods). Unlike pachytene cells from wild-type mice, those from the Arf-null strain exhibited considerable TUNEL staining (Figure 6C) with a concomitant reduction in the fraction of Arf-null diplotene spermatocytes (Figure 6F) that correlated with decreased sperm production (Figure 2B). Inactivation of Ink4a alone did not trigger spermatocyte apoptosis nor limit apoptosis in the Arf-null background (Figure 6E) reinforcing the conclusion that the two closely linked genes play fundamentally different roles within the male germline.

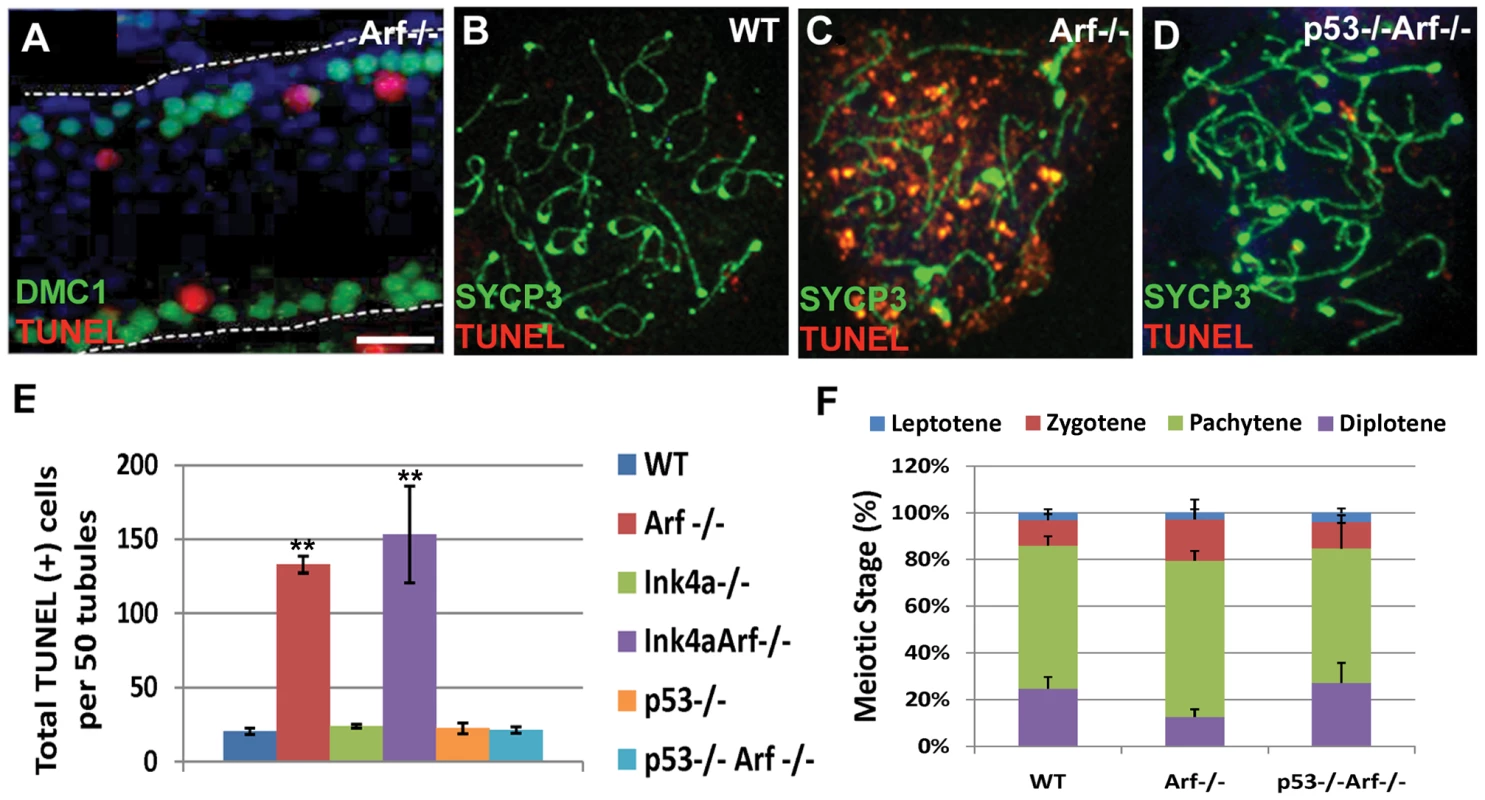

Fig. 6. Arf deficiency leads to increased apoptosis of primary spermatocytes.
<i>Arf</i> deficiency leads to increased apoptosis of primary spermatocytes.
(A) During spermatogenesis, germ cells move intraluminally as they differentiate, initially yielding primary meiotic spermatocytes (immunostained for Dmc1, green) that have detached from the basement membrane (represented by a dashed line). Dmc1-positive cells are visualized in a longitudinal section of a tubule from a two month-old Arf-null mouse. Spermatocytes within the tubular lumen are TUNEL-positive (red). DAPI (blue) marks the nuclei of all developing germ cells within the tubule. Neither DAPI-positive spermatogonia residing on the basement membrane nor more mature intraluminal cells express Dmc1 or are TUNEL-positive. (B–D) Surface spread spermatocytes from three month old wild-type (B), Arf−/− (C), and p53−/−; Arf−/− (D) mice were immunostained for SYCP3 (green) and assayed for TUNEL (red). Although pachytene and diplotene spermatocytes from Arf−/− mice were TUNEL-positive, few such cells were identified in spreads from age-matched wildtype or p53−/−; Arf−/− mice. (E) TUNEL assays were performed on testis sections from 2–3 month old mice of the indicated genotypes. The total numbers of TUNEL-positive cells were enumerated in 50 tubules within three different sections taken from 3 different mice of each genotype. (F) One hundred surface spread spermatocytes (n = 3 mice) were categorized into the four phases of prophase I based on SYCP3 and γ-H2AX immunostaining patterns, as described in Materials and Methods. Errors bars represent standard deviations from the mean. ** p<0.0001 and *p<0.003 vs wild-type levels by Student's t-test.

Arf−/−; p53−/− doubly-deficient males are even more susceptible to spontaneous tumor development than mice lacking either Arf or p53 alone [5]. However, the young tumor-free males produce sufficient viable sperm to remain fertile. Inactivation of p53 restored testis weights and sperm production in Arf-null males (Figure 2A and 2B), prevented the apoptotic elimination of Arf-null germ cells (Figure 6D and 6E), and restored the number of diplotene spermatocytes (Figure 6F). Accordingly, higher levels of p53 were detected in whole testis lysates from Arf-null mice as compared to those in wild-type mice (Figure 7). Thus, in direct contrast to the role of p19Arf in triggering a p53 response following abnormal hyperproliferative stress in somatic cells, it is instead the absence of Arf expression in spermatogonial progenitors that impairs the fidelity of meiotic progression and ultimately leads to p53-dependent elimination of Arf-null primary spermatocytes.

Fig. 7. Levels of p53 detected in wild-type and Arf-null testis.
Levels of p53 detected in wild-type and <i>Arf</i>-null testis.
Immunoblotting analysis was performed using whole testis lysates from four representative 3–4 month-old mice of each genotype. Actin was used as a loading control.

Inappropriate γ-H2AX Accumulation in Arf-Null Germ Cells

Histone H2AX is phosphorylated at serine-139 in response to DNA strand breaks caused by ionizing radiation [21], UV irradiation [22], replication stress [23], [24], failure of nucleotide excision repair [25], and at the leptotene stage of meiosis prior to synaptonemal complex formation [26]. H2AX phosphorylation also occurs in spermatocytes in a DNA damage-independent manner during formation of the sex body, a heterochromatic sub-nuclear domain encompassing the nonhomologous parts of the X and Y chromosomes [27]. Remarkably, staining of testis sections and immunoblotting of whole testis lysates revealed a profound increase in global γ-H2AX levels when Arf was inactivated (Figure 8A and 8B). Again, inactivation of Ink4a neither recapitulated nor ameliorated this Arf-null defect (Figure 8A and 8B). Germ cells at the periphery of Arf-null seminiferous tubules exhibited the greatest increase in γ-H2AX staining, suggesting that more immature cells were the ones most affected (Figure 8A). Microscopic quantification revealed that the number of γ-H2AX-positive spermatogonia, as well as the number of γ-H2AX foci per cell, were increased ∼2-fold when Arf was inactivated (Figure 9), but the greatest increase in γ-H2AX staining was observed in primary Arf-null spermatocytes (Figure 8A and 8B; see below). The increased γ-H2AX in meiotic cells is especially striking because these cells do not normally express p19Arf when the gene is present (Figure 1).

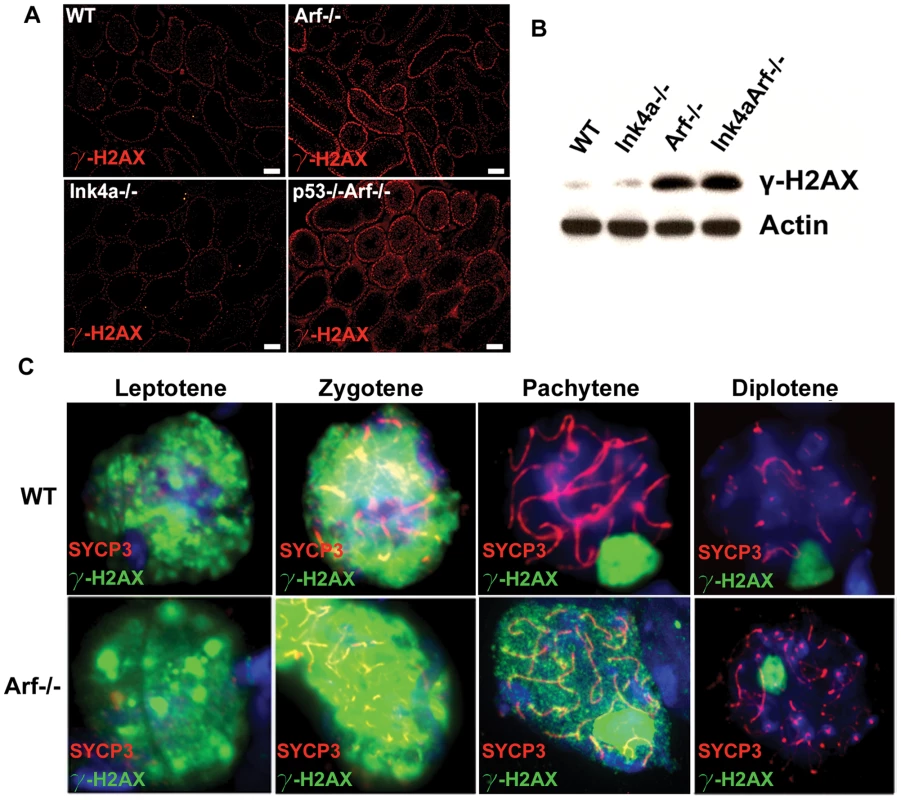

Fig. 8. Arf deficiency provokes elevated and persistent γ-H2AX foci.
<i>Arf</i> deficiency provokes elevated and persistent γ-H2AX foci.
(A) Testis sections from 3 month-old mice of the indicated genotypes were immunostained for γ-H2AX, as visualized here at low magnification to demonstrate overall relative intensities of staining. The brightest γ-H2AX-positive cells are primary spermatocytes. (B) Immunoblotting analysis of whole testis lysates from 3 month-old mice showing an accumulation of γ-H2AX in Arf-deficient testis. (C) Surface spread spermatocytes from three month old mice were immunostained for SYCP3 (red), γ-H2AX (green), and with DAPI to visualize nuclei (blue). Representative spreads from each stage of prophase I are shown for wild type (top) and Arf-null (bottom) strains, demonstrating persistence of autosome-associated γ-H2AX in pachytene spermatocytes from Arf-deficient mice. Staining of sex bodies persists throughout prophase in both genotypes. Images were captured with the same exposure times using a Zeiss Axioscope fluorescence microscope (A) or Intelligent Imaging Innovations Marianas spinning disc confocal microscope (C). Scale bars: (A) 100 µm.

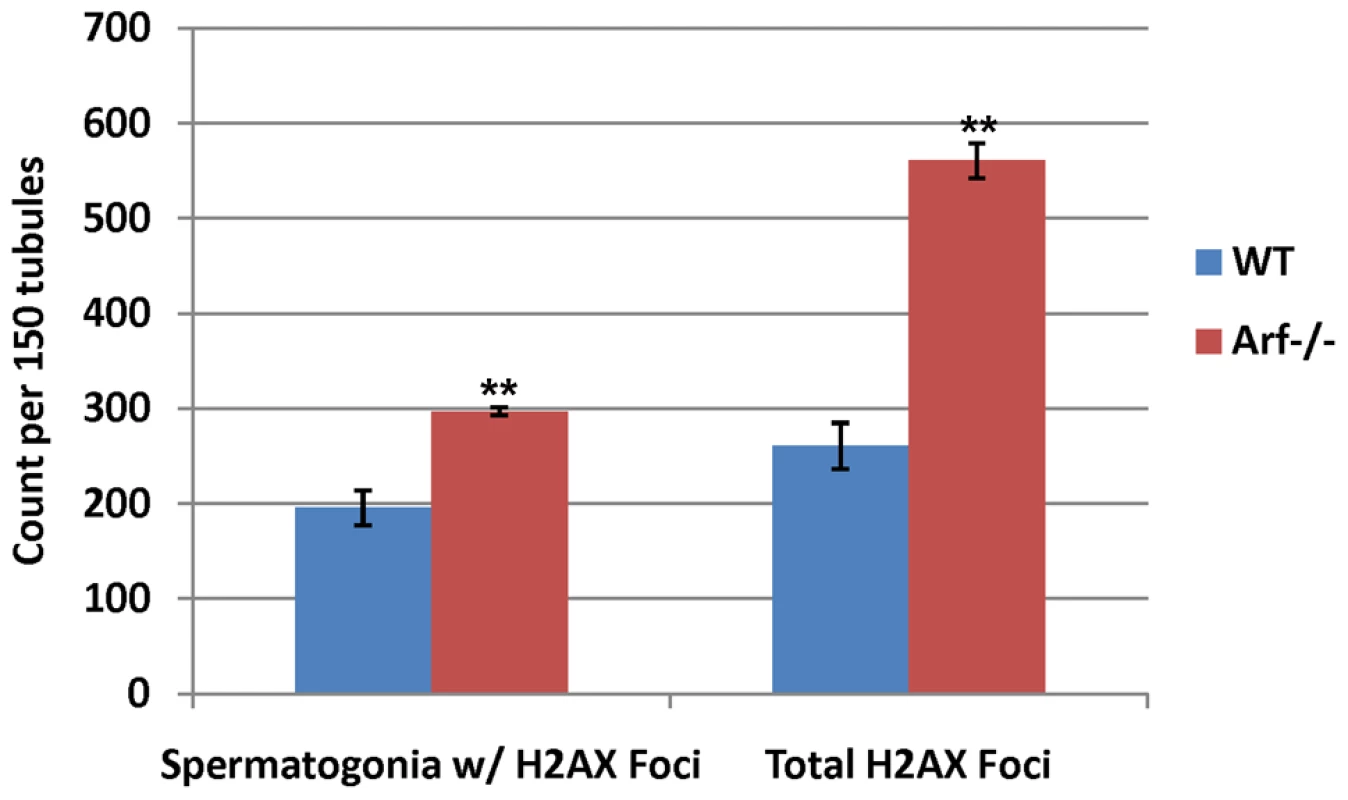

Fig. 9. Arf deficiency leads to increased γ-H2AX foci in spermatogonia.
<i>Arf</i> deficiency leads to increased γ-H2AX foci in spermatogonia.
The number of A and intermediate-type spermatogonia with γ-H2AX foci in 150 seminiferous tubules and the total number of foci contained within these cells were quantified in wild-type and Arf-null mice at P17. Enumeration of γ-H2AX foci within 150 tubules in each of three different sections from each genotype was performed at high magnification for foci limited to spermatogonia distinguished by morphology and position along the basement membrane. P values were determined using a Student's t- test; **p value<0.0001 vs wild-type. Error bars indicate standard deviations from the mean.

Meiotic double-strand DNA breaks are induced by the Spo11 transesterase and its accessory factors, which are loaded onto chromatin during the final pre-meiotic S-phase [13]. Autosomal γ-H2AX staining is normally observed during the leptotene and zygotene phases of meiosis-I, which are the early stages at which chromatids undergo DNA scission as a prelude to homologous recombination. In contrast, γ-H2AX foci are not normally detected by early pachytene (except in the sex body) once homologous synapsis is complete (Figure 8C, top panels) [28]. Chromosome spreads from meiotic primary spermatocytes from Arf-null males revealed that 150 of 382 individually enumerated pachytene cells (39%) exhibited persistent autosomal γ-H2AX foci in addition to normal sex body staining, whereas very few such cells (6.7%) were detected at the diplotene stage (Figure 8C, bottom panels). It could be that disappearance of γ-H2AX is delayed until diplonema, or that cells with aberrantly elevated γ-H2AX are preferentially eliminated. The latter interpretation is supported by the prophase I apoptosis and depletion of diplotene cells observed in Arf-null mice (Figure 6). Therefore, in the absence of Arf, γ-H2AX accumulates to higher levels than normal starting in the least mature spermatogonia, continuing into meiotic prophase I, and persisting past the time when it would normally disappear from autosomes. Although inactivation of p53 suppresses the increased apoptosis of Arf-null spermatocytes, γ-H2AX persists in cells lacking both of these genes (Figure 8A, lower right panel). In meiotic chromosome spreads from p53; Arf double-null mice, 20.5% (34 of 166) of diplotene spermatocytes display persistant autosomal γ-H2AX immunostaining as compared to 6.7% (5 of 74) of singly Arf-null and less than 1% (1 of 149) of wild-type diplotene spermatocytes. These data underscore the fact that the accumulation of γ-H2AX in Arf-null spermatocytes is p53-independent, whereas the elimination of defective spermatocytes that retain γ-H2AX inappropriately is p53-dependent.

Additional Meiotic Prophase Defects in Arf-Null Primary Spermatocytes

DNA double-strand breaks induced early in prophase I by Spo11 serve as substrates for the strand exchange proteins Rad51 and meiosis-specific Dmc1, which are required for double strand break repair during homologous recombination. Foci of staining using antibodies to Dmc1 (Figure 10A) and Rad51 (Figure 10B) were readily observed in zygotene spermatocytes from wild-type mice (left panels) but were fewer and less prominent in their Arf-null counterparts (right panels). The number and average fluorescence intensities of foci in 100 zygotene cells of each genotype were determined using commercial imaging software. In wild-type zygotene spermatocytes, the frequency of Dmc1 and Rad51 foci peaked at 100–125 per cell (Figure 10C and 10D, respectively, blue bars) and exhibited a broad distribution of relative intensities over a ∼10-fold range (Figure 10E and 10F, blue bars). In contrast, both the number and intensities of Dmc1/Rad51 foci were significantly reduced in Arf-null cells (average number of foci ± S.D.: 103±46 Dmc1 foci in wild-type vs. 44±34 in Arf−/−; 108±45 Rad51 foci in wild-type vs. 45±33 in Arf−/−; average relative intensities ± S.D.: 10239±4959 Dmc1 foci in wild-type vs. 6611±3005 in Arf−/−; 10980±5783 Rad51 foci in wild-type vs. 5637±3340 in Arf−/− N = 100, p<0.0001, Student's t-test; Figure 10C–10F). An accumulation of Arf-null spermatocytes in zygonema (Figure 6F) suggests that there may be a delay at this stage before progression to pachytene.

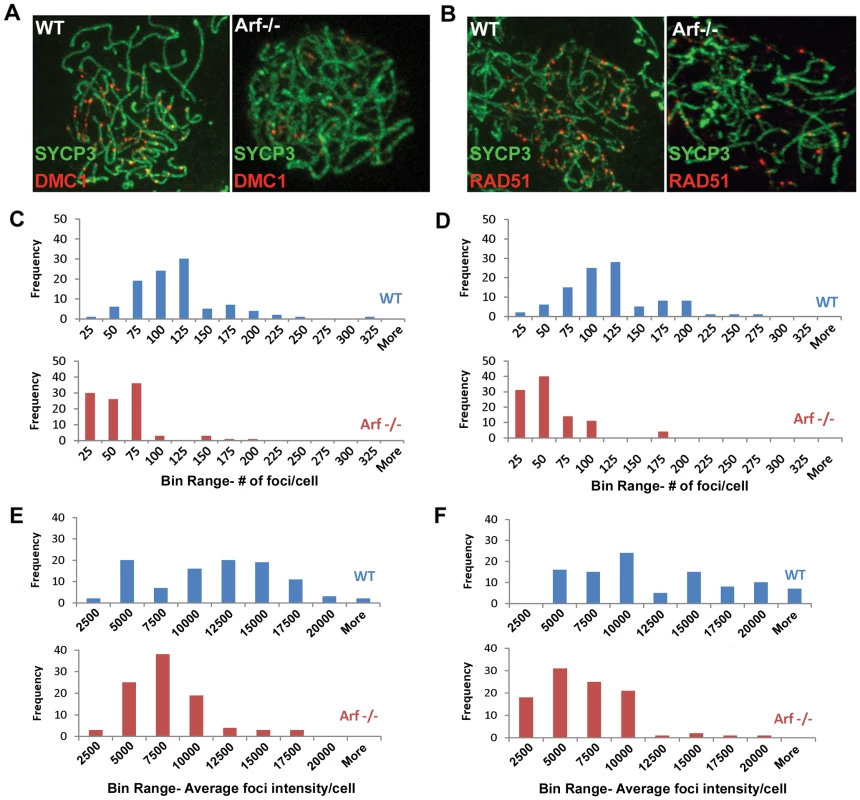

Fig. 10. Diminished Dmc1/Rad51 focus formation in Arf-deficient spermatocytes.
Diminished Dmc1/Rad51 focus formation in <i>Arf</i>-deficient spermatocytes.
(A, B) Surface spread spermatocytes from three month old WT (left panels) and Arf-null (right panels) mice were immunostained for SCP3 (A, B; green) and Dmc1 (A; red) or Rad51 (B; red). Images were captured with the same exposure time using a Marianas spinning disc confocal microscope. (C, D) Histograms showing the distribution of the number of Dmc1 (C) and Rad51 (D) foci found in wild-type (blue bars) and Arf-null (red bars) spermatocytes. Foci were enumerated from one hundred zygotene spermatocytes immunostained for SYCP3 and either Dmc1 (C) or Rad51 (D) using Slidebook 5.0 SDC software. Actual values of foci per cell are plotted within bin ranges to display the distribution of frequencies. (E, F) Histograms showing the distribution of average intensities of Dmc1 (C) and Rad51 (D) foci found in wild-type (blue bars) and Arf-null (red bars) spermatocytes analyzed in panels C and D.

Pachytene cells are normally characterized by well developed synaptonemal complexes that stretch the length of autosome axes and by knob-like accumulation of SYCP3 at telomeres (Figure 11A). However, 34% of Arf-null cells exhibited defects in synapsis (quantified in Figure 11D), including forked terminal structures and interstitial bubbles on autosomes (Figure 11B) and complete asynapsis of sex chromosomes (arrow, Figure 11C). In addition, interrupted regions of SYCP3 staining (denoted by arrowheads in Figure 11C) were more frequently observed in meiotic chromosome spreads from Arf-null cells versus those in wild-type cells (191 versus 53 such segments, respectively, in 300 pachytene cells of each genotype). Because synapsis was complete in the majority of Arf-null pachytene cells, we could not distinguish whether the observed defects arose from regions in which synaptonemal complexes did not form at all, or where complexes had formed but subsequently disassembled. Taken together, Arf-deficiency results in a series of abnormalities during prophase I that include reduced loading of the Rad51 and Dmc1 recombinases, defects in synapsis, elevated and persistent γ-H2AX expression, and p53-dependent apoptosis, ultimately associated with diminished production of mature sperm.

Fig. 11. Arf-null pachytene spermatocytes exhibit synaptic defects.
<i>Arf</i>-null pachytene spermatocytes exhibit synaptic defects.
(A–C) Staining of surface spread spermatocytes for SYCP3 marks the lateral elements of bivalents. (A) In wildtype pachytene spermatocytes, fully synapsed autosomal bivalents are observed, as judged by continuous SYCP3 staining along the axes. (B–C) Representative synaptic defects in Arf-null pachytene spermatocytes include (B) unsynapsed ends (arrow) and interstitial asynaptic “bubbles” (arrow heads), and (C) asynapsis of the X and Y chromosomes (arrow). Synapsed X and Y chromosomes are shown in (A, B). Synaptonemal complexes with segmental disruption of SYCP3 staining were more frequently observed (p = 0.051) in Arf-null cells (C, arrowheads) versus their wild-type counterparts (191 versus 53 such segments in 300 pachytene chromosomal spreads from each genotype). (D) Quantification of synaptic defects observed in wild-type and Arf-null pachytene spermatocytes. “Wide open” ends are illustrated in (B); less extensive asynapsis at telomeres was categorized as “slight” open ends. 100 pachytene spermatocytes from each of three mice of different genotypes yielded highly significant differences in overall defects (p = 0.0017 by Student's t-test). Error bars indicate standard deviation from the mean.

Discussion

With few exceptions, the Arf tumor suppressor is not expressed in normal tissues of healthy mice but is induced by abnormally sustained and elevated thresholds of proliferative signals, activating a p53 response that opposes the deleterious effects of oncogene activation. Notably, p53 responds to a much wider range of Arf-independent signal transduction cascades triggered by many other forms of cellular stress, including acute DNA damage, to which the Arf promoter does not respond [6]. By converging on p53, these different signaling pathways inhibit cell cycle progression or trigger apoptosis, acting to suppress tumor formation.

We now document a physiological role of Arf in mouse male germ cell development that is distinct from its tumor suppressive functions in key respects. First, Arf is expressed in spermatogonia, but not in the primary spermatocytes that arise from them. Expression of p19Arf neither arrests spermatogonial mitotic progression nor triggers their p53-dependent apoptosis. However, the absence of Arf expression in spermatogonia leads to p53-dependent apoptosis of spermatocytes before they exit meiosis-I. The defect in spermatogenesis is germ cell autonomous and results in a significant reduction in sperm counts by the time Arf-null mice are two months old, although residual sperm production maintains fertility in young males. Thus, expression of Arf in mitotic progenitor cells enhances the survival of their meiotic progeny in which Arf expression is normally extinguished. These features indicate that Arf expression initiates a salutary, feed-forward program that facilitates meiotic progression. Indeed, although Arf and Ink4a are widely viewed to convey tumor suppressive functions that coordinate the activities of the p53 and Rb signaling “pathways,” inactivation of Arf and Ink4a in the testes leads to opposing outcomes. Disruption of Ink4a increases the mitotic activity of spermatogonial progenitors to enhance sperm output and, in this respect, compensates for Arf loss of function without eliminating the cellular defects that arise in the Arf-null setting. In short, loss of Ink4a increases the spermatogonial pool size, but without Arf expression, spermatocytes undergo increased apoptosis, returning the number of mature sperm to normal levels.

Homologous recombination during meiosis exchanges genetic information between maternally and paternally derived chromosomes and also guides proper segregation of chromosome pairs to maintain correct chromosome numbers in gametes [13]. During meiosis, in contrast to mitotically diving cells, homologous chromosomes are favored over sister chromatids as templates for recombinational DNA repair. Double-strand DNA breaks are formed by the topoisomerase-II-related transesterase Spo11. This process activates the Atm kinase and leads to phosphorylation of the H2AX histone variant near sites of strand breakage during early prophase I. Binding of the RecA family strand exchange proteins, Rad51 and meiosis-specific Dmc1, to Spo11-induced DNA ends generates filaments that search for and invade homologous duplex DNA molecules, leading to pairing of homologous chromosomes. Loading of Rad51 and Dmc1 is normally reversed by early pachytene when chromosomes are fully synapsed, after which γ-H2AX foci are no longer detected.

In the Arf-null setting, a modest but significant increase in γ-H2AX staining was first detected in the least mature spermatogonia, and primary spermatocytes displayed accentuated signals that persisted inappropriately into the pachytene stage. Arf-null cells also formed fewer Dmc1/Rad51 foci at zygotene and exhibited focal regions of asynapsis at pachytene. Aberrant Arf-null spermatocytes underwent apoptosis at pachytene, resulting in the emergence of fewer diplotene cells and a significant reduction in sperm output. Importantly, Arf−/−; p53−/− double-null pachytene cells also exhibited persistent γ-H2AX staining, but these cells escaped elimination. Thus, apoptosis was p53-dependent, but aberrant γ-H2AX accumulation was not.

Although the underlying mechanisms remain unknown, we consider here two plausible interpretations of this apoptotic arrest. First, it may be that reduced Rad51/Dmc1 focus formation and persistent γ-H2AX staining in Arf-null male germ cells connote a defect in DNA repair that then activates p53 through Arf-independent but Atm/Atr-dependent signaling pathways. In this scenario, Spo11-induced DSBs would form at normal levels but Rad51/Dmc1 loading would be impaired such that some DNA damage would persist into pachytene. This might conceivably involve the p53-independent ability of p19Arf to promote the sumoylation of numerous target proteins by inhibiting the SUMO2/3 protease Senp3 [29][31]. SUMO2/3 accumulates at sites of DNA damage in mammalian cells [32], [33], and various aspects of DNA repair are regulated by the SUMO conjugation pathway [34]. There is fragmentary evidence that absence of p19Arf compromises nucleotide excision repair in cultured cells [35], [36] raising the possibility that Arf may play an as yet undefined role in promoting homologous recombination. All meiotic mutants that cannot properly synapse homologous chromosomes arrest during pachytene [37], and accompanying defects in sex body formation and failure to properly silence transcription of the sex chromosomes during prophase is itself sufficient to eliminate pachytene cells [27], [38]. However, spermatocytes can also undergo apoptosis in direct response to unrepaired Spo11-induced breaks even if sex body formation is normal [27], [39]. Where tested, spermatocyte apoptosis in meiotic mutants with chromosome synapsis errors has been found to be p53-independent [40][42]. Moreover, Spo11-dependent activated phospho-p53 can be transiently detected from leptonema and zygonema in wild-type male mice, and in Drosophila, p53 activity is prolonged in cells defective for meiotic repair [43]. Thus, it remains a formal possibility that meiotic recombination defects can trigger p53-dependent apoptosis.

A second, alternative interpretation rests on the idea that the earlier and less profound accumulation of γ-H2AX in Arf-null spermatogonia might be a symptom of an underlying defect affecting chromatin structure or Atm/Atr signaling. The appearance of γ-H2AX reflects chromatin modifications that flank sites of DNA damage rather than strand breaks themselves, so the kinetics of γ-H2AX formation and dissolution do not necessarily coincide with the appearance and repair of DNA damage [44], [45]. Moreover, aberrant Atm/Atr signaling is itself sufficient to activate p53, whether triggered by DNA breaks or not [46]. Thus, it may be that Arf deficiency causes inappropriate Atm/Atr signaling that provokes p53-dependent apoptosis in a DNA damage-independent manner. In this view, the observed meiotic prophase defects in Arf-null spermatocytes may possibly be a separate downstream consequence of this earlier anomaly, and may not be the cause of apoptosis. Regardless of which interpretation is correct, it is important to note that our findings provide strong evidence that p53-dependent monitoring promotes proper meiotic maturation, in addition to the previously documented p53-independent pathway(s). Whatever the underlying mechanisms, the role of Arf in male germ cell development contrasts with the general paradigm of p19Arf acting as an activator of p53. Instead, it is the absence of Arf in spermatogonia that consequently leads to p53-dependent apoptosis of spermatocytes.

Materials and Methods

Ethics Statement

No human or non-human primates were studied. All animal work with mice was performed under established guidelines and supervision by the St. Jude Children's Research Hospital's Institutional Animal Care and Use Committee (IACUC), as required by the United States Animal Welfare Act and NIH policy to ensure proper care and use of laboratory animals for research. Experiments were undertaken in an accredited facility of the Association for Assessment of Laboratory Animal Care under the supervision of trained veterinary personnel and in strict compliance with Howard Hughes Medical Institute, St. Jude Children's Research Hospital, and NIH institutional guidelines. The latter include detailed protocol submission and review of all animal care, monitoring, and experimental procedures prior to initiation of any experiments. Ongoing protocols for animal research not necessitating interim amendments are minimally subjected to annual review by the IACUC. All persons involved in the use of animals have read and understand all implications of pertinent protocols, have received training in the execution of relevant animal-related procedures prior to participation in the protocol, and have participated in educational or training programs deemed necessary by the IACUC or the Animal Resources Center personnel. Studies reported herein did not unnecessarily duplicate previous research, and were undertaken only because suitable non-animal models were unavailable. The number of animals used was consistent with good statistical design. Anesthesia, analgesia and tranquilization were used to relieve pain and distress in accordance with the IACUC recommendations.

Mouse Strains

Arf-null [47], Arf-GFP [7], Arf-Flox and Arf-Cre mice [9] were generated in the Sherr laboratory. Mouse strains deficient for Ink4a [48] and Ink4a-Arf [49] were generously provided by R.A. DePinho (Dana Farber Cancer Center). All genetically engineered mice were backcrossed nine or more times onto a C57Bl/6 background to create isogenic strains. C57Bl/6 mice deficient for p53 were purchased from Jackson Laboratories (Stock Number 2101). ArfGFP/GFP mice were crossed to p53+/− mice, and compound heterozygotes were interbred to generate ArfGFP/GFP;p53−/− mice functionally null for both genes. ArfCre/+ females were interbred with ArfFlox/Flox males to generate ArfCre/Flox mice.

Phenotypic Characterization of Mouse Testes and Sperm Count Analysis

Caudal epididymides were harvested before dissection of the testes. For each male mouse, two cauda were minced into 1 ml of Dulbecco's modified Eagle's medium (DMEM) containing 25 mM HEPES buffer (pH 7.5) and 4 mg/ml bovine serum albumin and incubated at 37°C for 20 minutes. Suspensions of sperm were fixed at a 1∶25 dilution in 10% formalin and counted on a hemocytometer. All sperm counts were performed between 1:00–3:00 PM. Dissected testes were weighed in pairs.

Immunofluorescence of Testes Sections

Mice were euthanized by CO2 asphyxiation, and testes were removed and fixed overnight at 4°C in 4% paraformaldehyde followed by saturation in 30% sucrose at 4°C overnight. Tissues were embedded in TBS Tissue Freezing Medium (Fisher Scientific, Pittsburg PA), and sliced with a HM500M Cryostat (Microm International, Walldorf, Germany) into 10 µm sections. Fixed and frozen samples were sectioned and subjected to antigen retrieval in 0.1 M Na citrate buffer, pH 6.0, followed by one hour incubation at room temperature in a blocking solution of 10% normal goat serum (NGS), 0.1% Triton-X 100 in phosphate-buffered saline (PBS), and then by overnight incubation at 4°C in primary antibodies diluted in 3% NGS, 0.1% Triton-X 100 in PBS. Antibodies were directed to p19Arf [rat monoclonal immunoglobulin 5C3-1 [50], Sox9 (Millipore AB5535, 1∶1000), BrdU (Santa Cruz sc32323, 1∶100), cyclin D1 (Santa Cruz 72-13G, 1∶750), Dmc1 (Santa Cruz H-100, 1∶750), γ-H2AX (Cell Signaling 2577, 1∶200), and SUMO2/3 (Cell Signaling 18H8, 1∶300). Slides were washed three times in PBS, and then incubated for 1 hour at room temperature in 3% NGS, 0.1% Triton-X 100 in PBS containing the relevant secondary antibodies conjugated to Ig-Alexa Fluor 555 or Ig-Alexa Fluor 488 (1∶500 dilutions; Invitrogen). Slides were washed three times in PBS and mounted with Vectashield (Vector Labs) containing 4′-6-diamidino-2-phenylindol (DAPI). TUNEL assays were performed using an in situ cell death detection kit (TMR red, Roche) following the manufacturer's protocol. Images of tissue sections were photographed using a Zeiss Axioscope fluorescence microscope and assembled using Zeiss Axiovision software.

Analysis and Staging of Meiotic Spreads

Testes were decapsulated and minced in 5 ml of DMEM per testis and transferred to a 15 ml Falcon tube. After further dissociation of the tubules by pipeting up and down, large pieces were allowed to settle to the bottom of the tube by gravity for 10 minutes on ice. One ml of the supernatant, containing a suspension of spermatocytes, was transferred to a 1.5 ml Eppendorf tube and centrifuged for five minutes at 5800× g. The pellet was resuspended in 40 µl of a 0.1 M sucrose solution, and 20 µl of spermatocyte suspension was applied evenly to a slide containing a thin layer of 1% paraformaldehyde (pH 9.2) containing 0.1% Triton X-100. Slides were allowed to dry for two hours at room temperature in a closed humidity chamber before rinsing in Photo-flo (Kodak 1464510, diluted 1∶250 in doubly distilled H2O) and air dried at room temperature. For immunofluorescence, slides were incubated in PTBG (0.2% bovine serum albumin, 0.2% gelatin, 0.05% Tween 20 in PBS) for 10 minutes with shaking. Primary antibodies were diluted in PTBG, applied to the slide, and covered with parafilm before incubation overnight at 4°C in a humidity chamber. Antibodies were directed to SYCP3 (Santa Cruz G-3, 1∶500) to mark the synaptonemal axial element [20], to γ-H2AX (Cell Signaling 2577, 1∶500) to identify sex body formation and sites of DNA damage, and to Rad51 (Calbiochem Ab-1, 1∶500) and Dmc1 (Santa Cruz H-100, 1∶750) to demonstrate formation of complexes required for DNA strand exchange during homologous recombination. Slides were washed three times in PTBG at room temperature for 3 minutes with shaking. Secondary antibodies, also diluted in PTBG, were applied to slides which were covered with parafilm and incubated at 37°C for one hour in a humidity chamber. Slides were washed three times in PTBG for 3 minute intervals in the dark with shaking and mounted with Vectashield (Vector Labs) containing DAPI. Surface spread spermatocytes were visualized by a Marianas spinning-disc confocal microscope, and images were assembled and analyzed using Slidebook 5.0 SDC software (Intelligent Imaging Innovations, Denver CO). Meiotic spreads from three adult mice (age three months) were analyzed. One hundred spermatocytes were scored each from mouse.

Distinct staining patterns allow for classification of each stage of meiotic prophase [51], [52]. Leptotene cells were categorized by short stretches of axial elements accompanied by intense γ-H2AX staining throughout the nucleus and the absence of a distinct sex body. Zygotene cells also display intense γ-H2AX staining throughout the nucleus and lack a sex body, but can be distinguished by longer stretches of SYCP3 staining, some of which are synapsed. Pachytene cells have fully formed and synapsed axes that appear as thick, continuous SYCP3-stained threads, while displaying intense γ-H2AX staining only in the sex body. Dmc1 and Rad51 foci are normally present at leptotene and zygotene, and largely disappear by pachytene. Diplotene cells have γ-H2AX localized only to the sex body, but fully formed axes are desynapsing and chiasmata are visible.

Immunoblotting

As previously described [53], detergent lysates were prepared, and protein concentration was quantified by bicinchoninic acid assay (Pierce). Samples (25–75 µg protein per lane) were electrophoretically separated on 4% to 12% Bis-Tris NuPAGE gels (Invitrogen), transferred to polyvinylidene fluoride membranes (Millipore), and detected using antibodies to γ-H2AX (Cell Signaling S139, 1∶500), p19Arf (5C3-1; Bertwistle et al. 2004b), p53 (Cell Signaling 1C12, 1∶500), and actin (Santa Cruz C-11, 1∶500) to control for protein loading.


Zdroje

1. LoweSWSherrCJ 2003 Tumor suppression by Ink4a-Arf: progress and puzzles. Curr Opin Genet Dev 13 77 83

2. QuelleDEZindyFAshmunRASherrCJ 1995 Alternative reading frames of the INK4a tumor suppressor gene encode two unrelated proteins capable of inducing cell cycle arrest. Cell 83 993 1000

3. PardalRMolofskyAVHeSMorrisonSJ 2005 Stem cell self-renewal and cancer cell proliferation are regulated by common networks that balance the activation of proto-oncogenes and tumor suppressors. Cold Spr Harb Symp Quant Biol 70 177 185

4. GilJPetersG 2006 Regulation of the INK4b-ARF-INK4a tumour suppressor locus: all for one or one for all. Nat Rev Mol Cell Biol 7 667 677

5. WeberJDJeffersJRRehgJERandleDHLozanoG 2000 p53-independent functions of the p19ARF tumor suppressor. Genes Dev 14 2358 2365

6. SherrCJ 2006 Divorcing ARF and p53: an unsettled case. Nat Rev Cancer 6 663 673

7. ZindyFWilliamsRTBaudinoTARehgJESkapekSX 2003 Arf tumor suppressor promoter monitors latent oncogenic signals in vivo. Proc Natl Acad Sci USA 100 15930 15935

8. McKellerRNFowlerJLCunninghamJJWarnerNSmeyneRJ 2002 The Arf tumor suppressor gene promotes hyaloid vascular regression during mouse eye development. Proc Natl Acad Sci USA 99 3848 3853

9. GromleyAChurchmanMLZindyFSherrCJ 2009 Transient expression of the Arf tumor suppressor during male germ cell and eye development in Arf-Cre reporter mice. Proc Natl Acad Sci USA 106 6285 6290

10. RussellLDEttlinRASinha HikimAPCleggED 1990 Histological and histopathological evaluation of the testis Cache River Press. Clearwater, FL

11. de RooijDG 2001 Proliferation and differentiation of spermatogonial stem cells. Reproduction 121 347 354

12. CultyM 2009 Gonocytes, the forgotten cells of the germ cell lineage. Birth Defects Res (Part C) 87 1 26

13. ColeFKeeneySJasinM 2010 Evolutionary conservation of meiotic DSB proteins: more than just Spo11. Genes Dev 24 1201 1207

14. BeumerTLRoepers-GajadienHLGademanISKalHBde RooijDG 2000 Involvement of the D-type cyclins in germ cell proliferation and differentiation in the mouse. Biol Reprod 63 1893 1898

15. BartkeASteeleREMustoNCaldwellBV 1973 Fluctuations in plasma testosterone levels in adult male rats and mice. Endocrinology 92 1223 1228

16. ZindyFden BestenWChenBRehgJELatresE 2001 Control of spermatogenesis in mice by the cyclin D-dependent kinase inhibitors p18(Ink4c) and p19(Ink4d). Mol Cell Biol 21 3244 3255

17. BartkovaJLukasCSorensonCSMeytsERSkakkebaekNE 2003 Deregulation of the RB pathway in human testicular germ cell tumors. J Pathol 200 149 156

18. RaneSGDubusPMettusRVGalbreathEJBodenG 1999 Loss of Cdk4 expression causes insulin-deficient diabetes and Cdk4 activation results in β-islet cell hyperplasia. Nature Genet 22 44 52

19. TsutsuiTHesabiBMoonsDSPandolfiPPHanselKS 1999 Targeted disruption of CDK4 delays cell cycle entry with enhanced p27Kip1 activity. Mol Cell Biol 19 7011 7019

20. DobsonMJPearlmanREKaraiskakisASpyropoulosBMoensPB 1994 Synaptonemal complex proteins: occurrence, epitope mapping, and chromosome disjunction. J Cell Sci 107 2749 2760

21. RogakouEPPilchDROrrAHIvanovaVSBonnerWM 1998 DNA double-stranded breaks induce histone H2AX phosphorylation on serine 139. J Biol Chem 273 5858 5868

22. LimoliCLGiedzinskiEBonnerWMCleaverJE 2002 UV-induced replication arrest in the xeroderma pigmentosum variant leads to DNA double-strand breaks, γ-H2AX formation, and Mre11 relocalization. Proc Natl Acad Sci USA 99 233 238

23. WardIMChenJ 2001 Histone H2AX is phosphorylated in an ATR-dependent manner in response to replicational stress. J Biol Chem 276 47759 47762

24. FurutaTTakemuraHLiaoZYAuneGJRedonC 2003 Phosphorylation of histone H2AX and activation of Mre11, Rad50, and Nbs1 in response to replication-dependent double-strand breaks induced by mammalian DNA topoisomerase I. J Biol Chem 278 20303 20312

25. MartiTMHefnerEFeeneyLNataleVCleaverJE 2006 H2AX phosphorylation within the G1 phase after UV irradiation depends on nucleotide excision repair and not DNA double-strand breaks. Proc Natl Acad Sci USA 103 9891 9896

26. MahadevaiahSKTurnerJMBaudetFREPde BoerPBlanco-RodriguezJ 2001 Recombinational DNA double-strand breaks in mice precedes synapsis. Nat Genet 27 271 2716

27. BurgoynePSMahadevaiahSKTurnerJM 2009 The consequences of asynapsis for mammalian meiosis. Nat Rev Genet 10 207 216

28. InagakiASchoenmakersSBaarendsWM 2010 DNA double strand break repair, chromosome synapsis and transcriptional silencing in meiosis. Epigenetics 5 255 266

29. HaindlMHarasimTEickDMullerS 2008 The nucleolar SUMO-specific protease SENP3 reverses SUMO modification of nucleophosmin and is required for rRNA processing. EMBO Rep 9 273 279

30. KuoM-Lden BestenWThomasMCSherrCJ 2008 Arf-induced turnover of the nucleolar nucleophosmin-associated SUMO-2/3 protease Senp3. Cell Cycle 7 3378 3387

31. NishidaTYamadaY 2008 SMT3IP1, a nucleolar SUMO-specific protease, deconjugates SUMO-2 from nucleolar and cytoplasmic nucleophosmin. Biochem Biophys Res Commun 374 382 387

32. MorrisJRBoutellCKepplerMDenshamRWeekesD 2009 The SUMO modification pathway is involved in the BRCA1 response to genotoxic stress. Nature 462 886 890

33. GalantyYBelotserkovskayaRCoatesJPoloSMillerKM 2009 Mammalian SUMO E3-ligases PIAS1 and PIAS4 promote responses to DNA double-strand breaks. Nature 462 935 939

34. BerginkSJentschS 2009 Principles of ubiquitin and SUMO modifications in DNA repair. Nature 458 461 467

35. Sarkar-AgarwalPVergilisISharplessNEDePinhoRARungerTM 2004 Impaired processing of DNA photoproducts and untraviolet hypermutability with loss of p16INK4a or p19ARF. J Natl Cancer Inst 96 1790 1793

36. Dominguez-BrauerCChenY-JBrauerPMPimkinaJRaychaudhuriP 2009 ARF stimulates XPC to trigger nucleotide excision repair by regulating the repressor complex of E2F4. EMBO Rep 10 1036 1042

37. de RooijDGde BoerP 2003 Specific arrest in spermatogenesis in genetically modified and mutant mice. Cytogenet Genome Res 103 267 276

38. RoyoHPolikiewiczGMahadevaiahSKProsserHMitchellM 2010 Evidence that meiotic sex chromosome inactivation is essential for male fertility. Curr Biol 20 R1022 1024

39. RoigIDowdleJATothAde RooijDGJasinM 2010 Mouse TRIP13/PCH2 is required for recombination and normal higher-order chromosome structure during meiosis. PLoS Genet 6 e1001062

40. OdoriosoTRodriguezTAEvansEPClarkeARBurgoynePS 1998 The meiotic checkpoint monitoring synapsis eliminates spermatocytes via p53-independent apoptosis. Nat Genet 18 257 261

41. YuanLLiuJGHojaMRLightfootDAHoogC 2001 The checkpoint monitoring chromosomal pairing in male meiotic cells is p53-independent. Cell Death Differ 8 316 317

42. AshleyTWestphalCPlug-de MaggioAde RooijDG 2004 The mammalian mid-pachytene checkpoint: meiotic arrest in spermatocytes with a mutation in Atm alone or in combination with a Trp53 (p53) or Cdkn1a (p21/cip1) mutation. Cytogenet Genome Res 107 256 262

43. LuWJChapoJRoigIAbramsJM 2010 Meiotic recombination provokes functional activation of the p53 regulatory network. Science 328 1278 1281

44. KastanMBBartekJ 2004 Cell-cycle checkpoints and cancer. Nature 432 316 323

45. KinnerAWuWStaudtCIliakisG 2008 Gamma-H2AX in recognition and signaling of DNA double-strand breaks in the context of chromatin. Nucl Acids Res 36 5678 5694

46. BakkenistCJKastanMB 2004 Initiating cellular stress responses. Cell 118 9 17

47. KamijoTZindyFRousselMFQuelleDEDowningJR 1997 Tumor suppression at the mouse INK4a locus mediated by the alternative reading frame product p19ARF. Cell 91 649 659

48. SharplessNEBardeesyNLeeK-HCarrascoDCastrillonDH 2001 Loss of p16Ink4a with retention of p19Arf predisposes mice to tumorigenesis. Nature 413 86 91

49. SerranoMLeeH-WChinLCordon-CardoCBeachD 1996 Role of the INK4a locus in tumor suppression and cell mortality. Cell 85 27 37

50. BertwistleDZindyFSherrCJRousselMF 2004 Monoclonal antibodies to the mouse p19Arf tumor suppressor protein. Hybridoma and Hybridomics 23 293 300

51. MoensPBFreireRTarsounasMSpyropoulosBJacksonSP 2000 Expression and nuclear localization of BLM, a chromosome stability protein mutated in Bloom's syndrome, suggest a role in recombination during meiotic prophase. J Cell Sci 113 663 672

52. BaudatFManovaKYuenJPJasinMKeeneyS 2000 Chromosome synapsis defects and sexually dimorphic meiotic progression in mice lacking Spo11. Mol Cell 6 989 998

53. ZindyFEischenCMRandleDHKamijoTClevelandJL 1998 Myc signaling via the ARF tumor suppressor regulates p53-dependent apoptosis and immortalization. Genes Dev 12 2424 2433
